SQUARE D

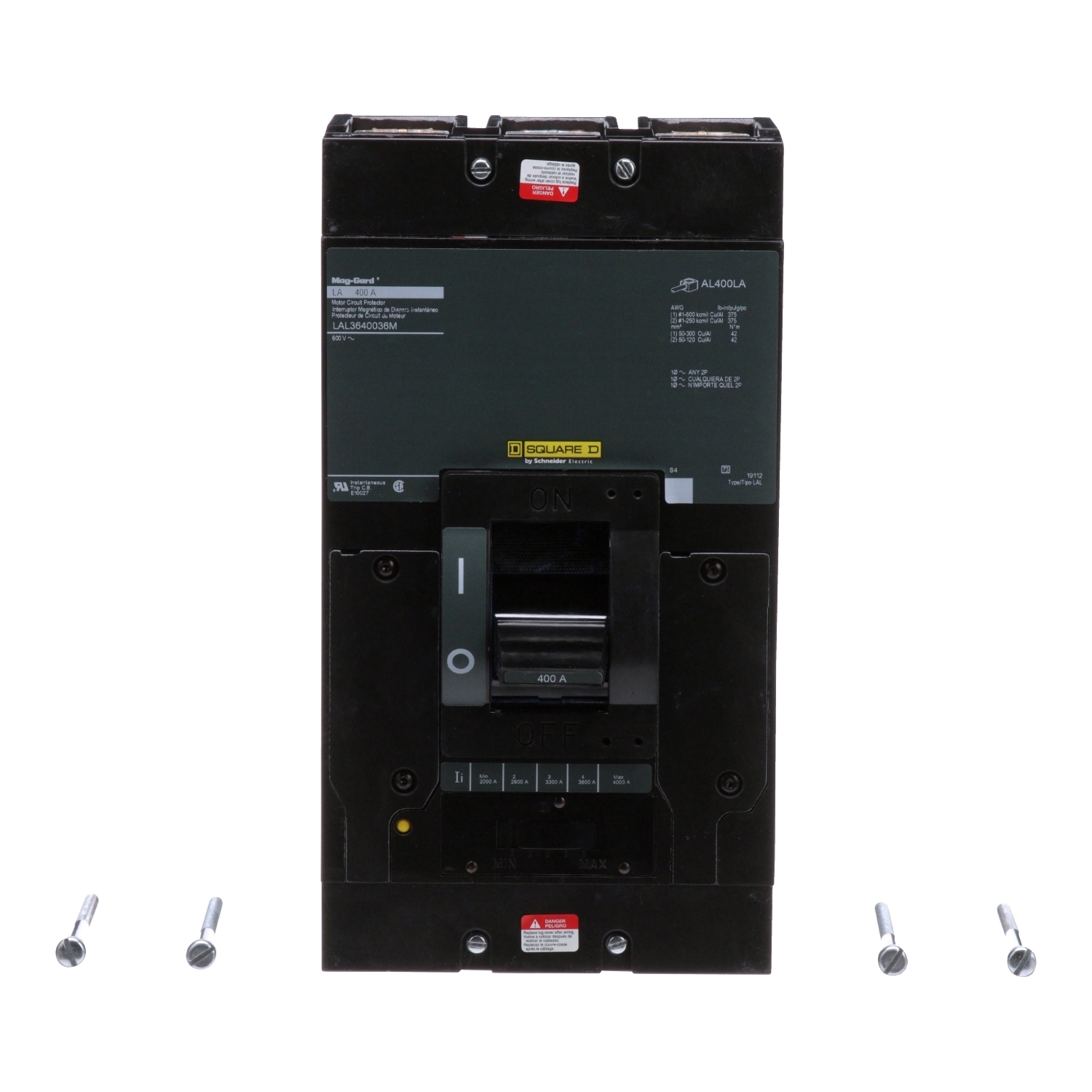

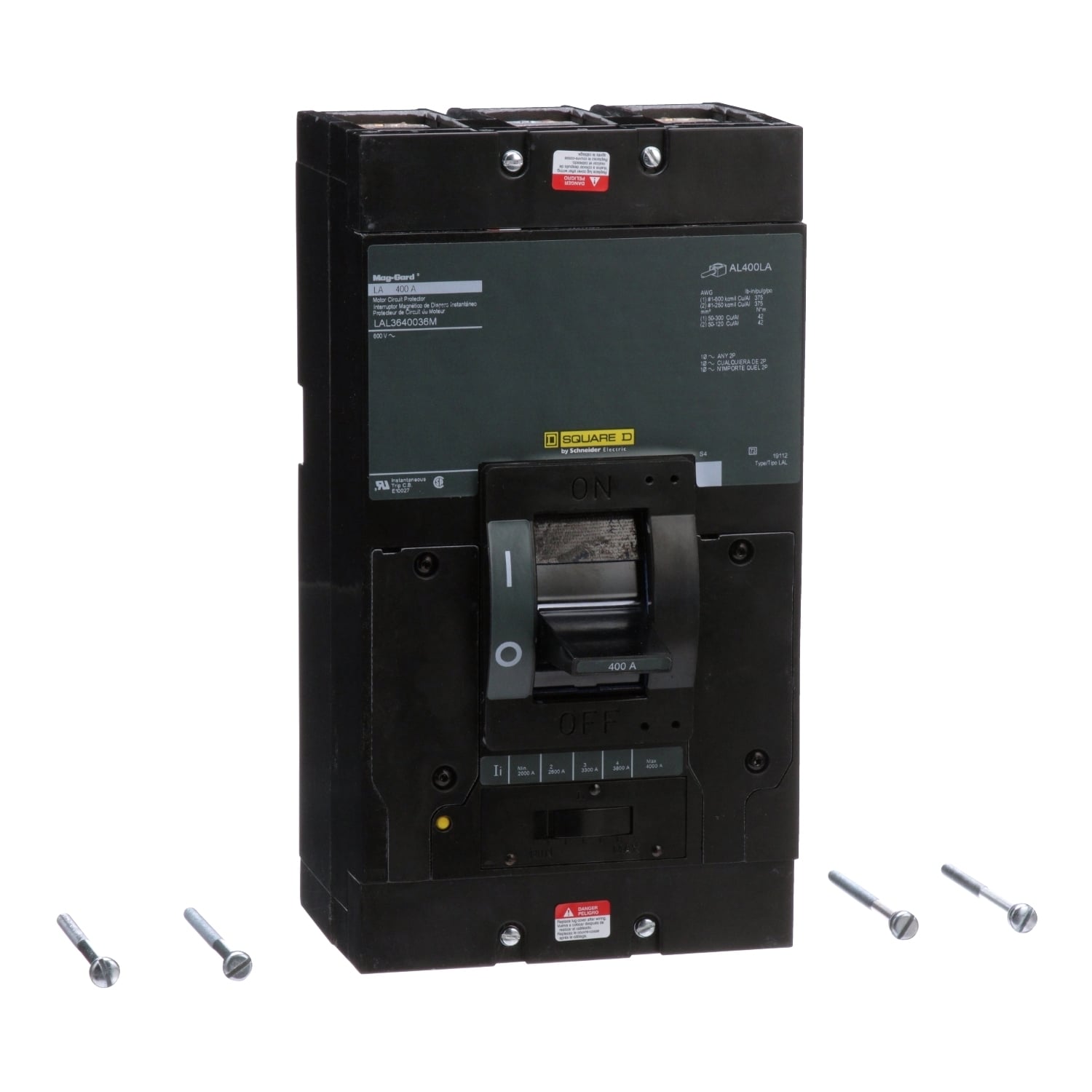

LAL3640036M PowerPact Mag-Gard Type LAL Motor Circuit Protector, 600 V AC/250 V DC, 400 A, 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
LAL3640036M
UPC:
785901650508
Item #:
40149

Availability

Location Available Qty
Available Available to Order
$4,842.50 each

Square D LA magnetic only molded case circuit breakers (Mag-Gard) provide motor circuit protection. They are designed as disconnect devices for use in combination with motor starts. They are magnetic detection so provide short circuit protection only. This Square D LA Mag-Gard is 3 pole unit mount, 400A and 600VAC, with lugs. Mag-Gard circuit breakers have an adjustable amperage pick up so can be set to open instantaneously to coordinate with the motor.

Manuals and Documentation
Catalog Number LAL3640036M
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, load;lugs, line
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428759&lang=en-us
UPC 785901650508
GTIN 00785901650508
Item Type Motor Circuit Protector
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
Trip Type Thermal-magnetic
