Telemecanique

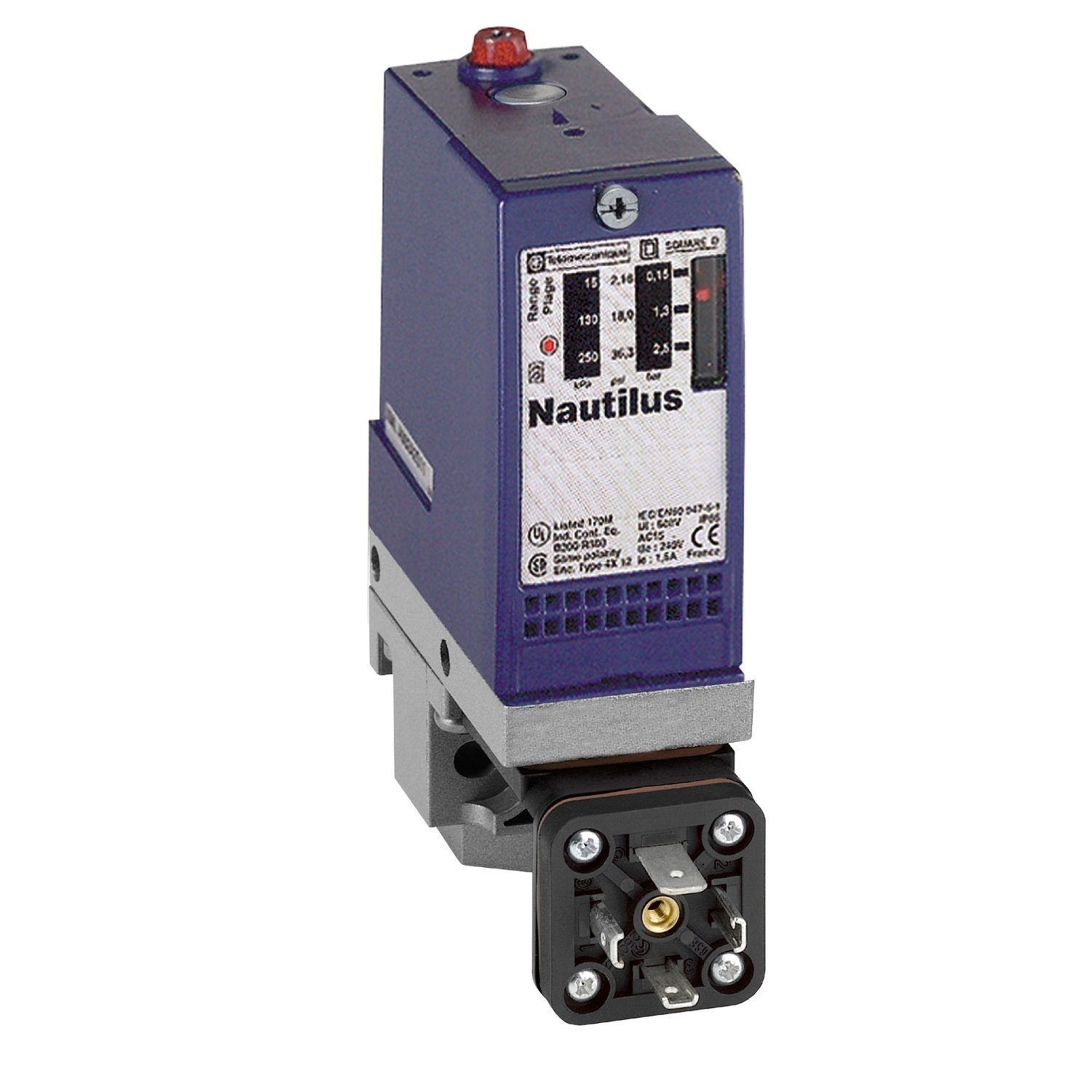

XMLA004A2C11 OsiSense XM Fixed Differential Electromechanical Pressure Switch, 4 bar Pressure, 1CO Contact, 4-Pin Male Connector Connection, 3 A at 120 V AC/1.5 A at 240 V AC/0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
XMLA004A2C11
UPC:
785901445401
Item #:
397634

Availability

Location Available Qty
Available Available to Order
$596.78 each

This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 8 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.

Manuals and Documentation
Catalog Number XMLA004A2C11
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Detection of 1 single threshold;-;Control circuit
Contact Configuration 1 C/O
Enclosure Zinc alloy
Operating Cycles 120 CYC/MN
Process Connection G 1/4 (FEMALE) ISO 228
Special Features 1 MALE CONNECTOR EN 175301-803-A (EX DIN43650) 4 PINS,IP65 CONFORMING TO EN/IEC 60529
Standard CCC-EAC-LROS (LLOYDS REGISTER OF SHIPPING)-BV-CSA-UL,EN/IEC 60947-5-1-UL 508-CE-CSA C22.2 NO 14,IP65 EN/IEC 60529,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=861328&lang=en-us
UPC 785901445401
GTIN 03389110711356
Item Type Electromechanical pressure sensor;Electromechanical pressure sensor;Fixed differential
Operating Temperature -25-70 A Degrees C
System Pressure 58.02
