Discontinued

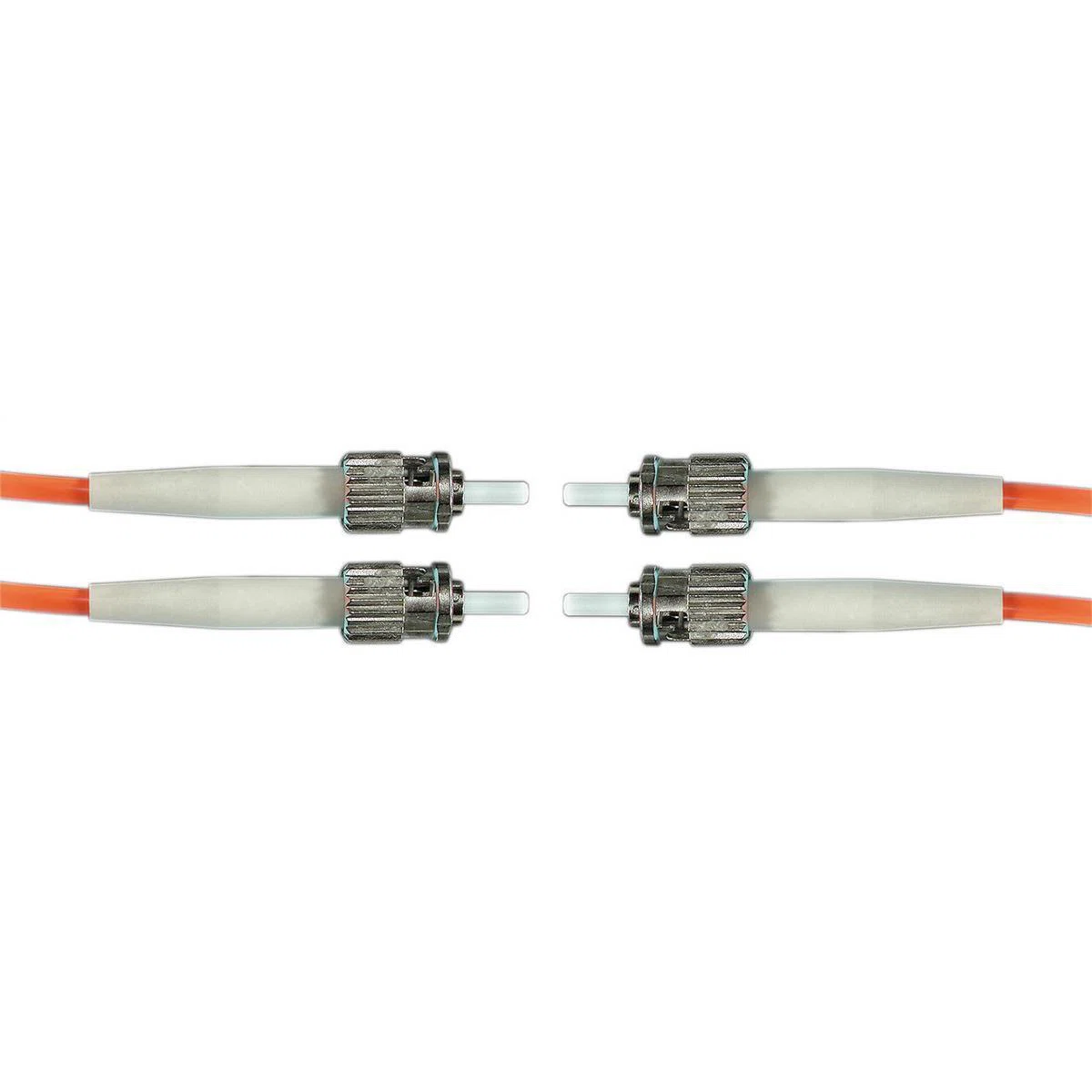

DFPCSTSTC3MM Duplex Multi-Mode OM1 Standard Fiber Optic Patch Cord, (6) Fiber, 62.5 um Core, 3 m L
- MFR:
- Hubbell
- MFR #:
- DFPCSTSTC3MM
- UPC:
- 662620801018
- Item #:
- 395829
Discontinued
DFPCSTSTC3MM Duplex Multi-Mode OM1 Standard Fiber Optic Patch Cord, (6) Fiber, 62.5 um Core, 3 m L
- MFR #:
- DFPCSTSTC3MM
- UPC:
- 662620801018
- Item #:
- 395829
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The expanded line of Hubbell® pre-terminated fiber assemblies includes labor saving BIDnet engineered trunks, cords, hydras and pigtails. The Hubbell® BIDnet program is a custom quote and made to order service, featuring premium quality cable and components, assembled locally for quick, reliable delivery. All Hubbell® fiber assemblies, patch cords and pigtails are made with quality components and are 100% factory tested.
Manuals and Documentation
Features
- Precision zirconia ferrule, PC polish
- 10GbE patch cords are OFNP rated for use in plenum spaces
- 62.5/125 um (OM1) multi-mode fiber
- 100% tested, heat cured epoxy termination
- Fiber patch cords provide connections from the work area to the wall outlet or from active equipment to the patch panel
- All patch cords are factory polished and 100% optically tested for superior performance
- High quality zirconia ferrules
- High quality PC radius ferrule tip
- 100% insertion loss tested
- Low mated pair insertion loss <0.5 dB
- Wide temperature operating range
| Manufacturer Part Number | DFPCSTSTC3MM |
| Brand | PREMISE WIRING |
| Manufacturer | Hubbell |
| UPC | 662620801018 |
| EAN | 0662620801018 |
| Country Of Origin | CN |
| Connector Type | ST to ST Plug-In |
| Insulation Material | PVC |
| Jacket Color | Orange |
| Jacket Material | Fiberglass |
| Length | 3 m |
| Temperature Rating | 32 to 158 deg F |
| Type | Duplex Multi-Mode OM1 Standard |
| Alternative Part Number | 8914662 | 12265376 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Standards Approvals | RoHS Compliant | ANSI/ICEA S-83-596 | TIA-568C.3 | TIA-604-FOCIS | Telcordia® GR-326-CORE | TIA-492AAAB | TIA-598 |
| Application | 10 Gbps/25 Gbps Fiber Channel, Backbone/Horizontal Distribution Interconnect and Data Center Equipment Interconnect Applications |
| Attenuation Rating | 0.35 dB |
| Clad Dimension | 125 um |
| Core Dimension | 62.5 um |
| Fiber Count | 6 |
