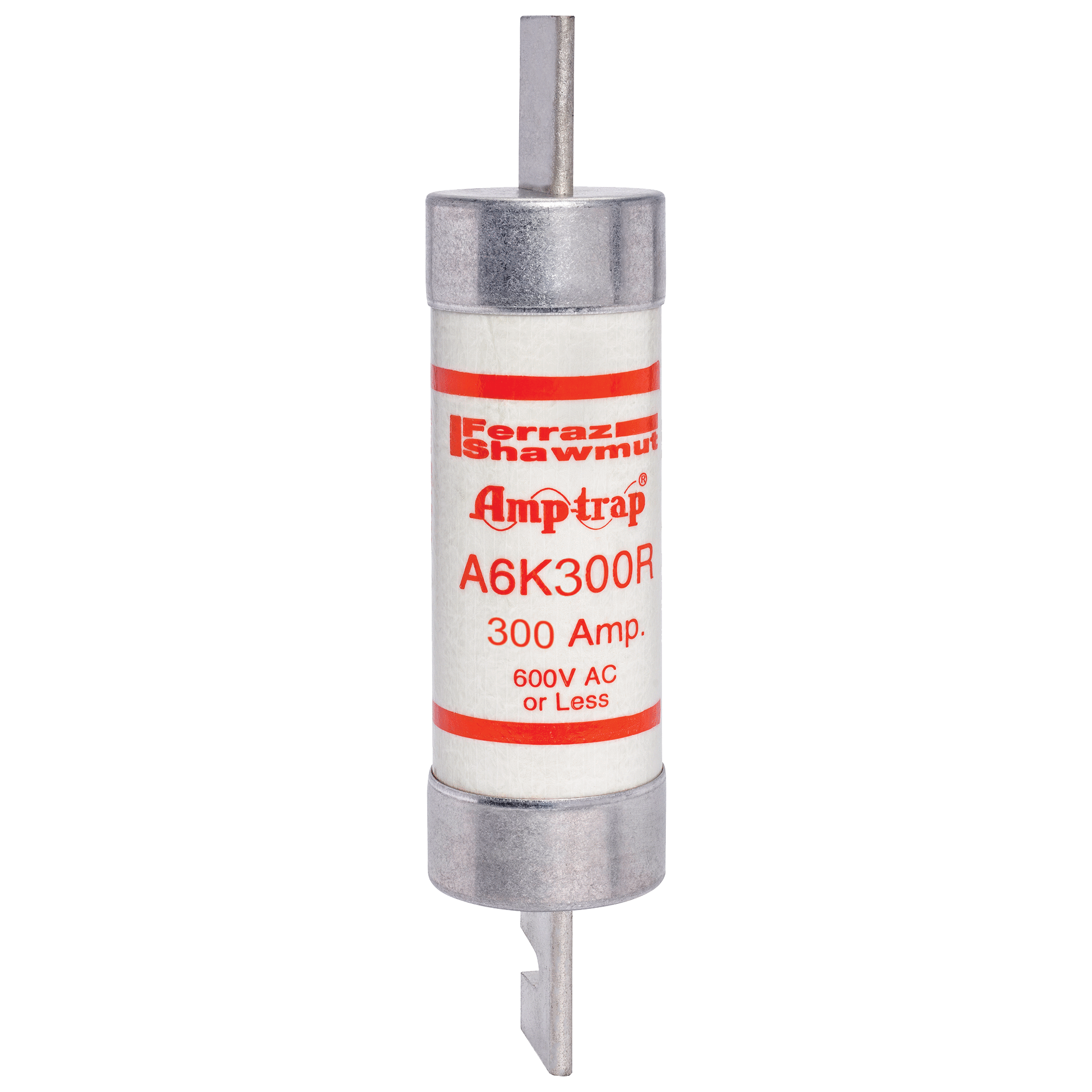

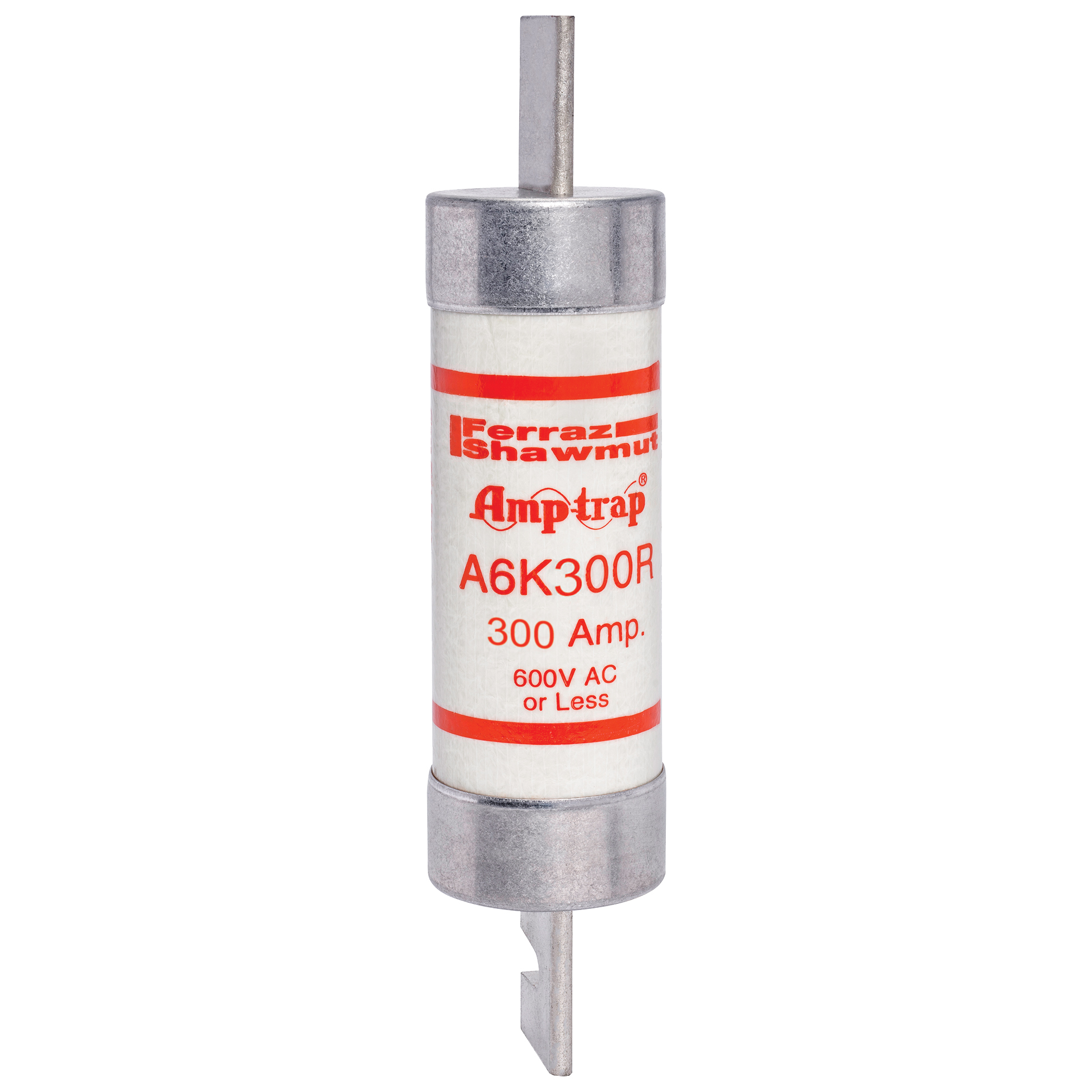

A6K300R Amp-Trap A6K-R Current Limiting Fast Acting Low Voltage North American Style Power Fuse, 300 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK1 Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A6K300R
- UPC:
- 782001915858
- Item #:
- 38972
A6K300R Amp-Trap A6K-R Current Limiting Fast Acting Low Voltage North American Style Power Fuse, 300 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK1 Class, Cylindrical Body
- MFR #:
- A6K300R
- UPC:
- 782001915858
- Item #:
- 38972
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,886.82
each
Fuse A6K-R - Class RK1 - Fast-Acting 600VAC 300VDC 300A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A6K300R |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 300 |
| Application | Load centers Panelboards Switchboards Bus duct Feeder circuits Non-inductive loads Lighting circuits |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Rejection style design prevents replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement High degree of current limitation for low peak let-thru current |
| Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 No. 248.12 Self-certified for DC per UL248 |
| UPC | 782001915858 |
| GTIN | 00782001915858 |
| Item Type | Class RK1 |
| Size | 11.63 x 2.56 |
| Voltage Rating | 600 |
