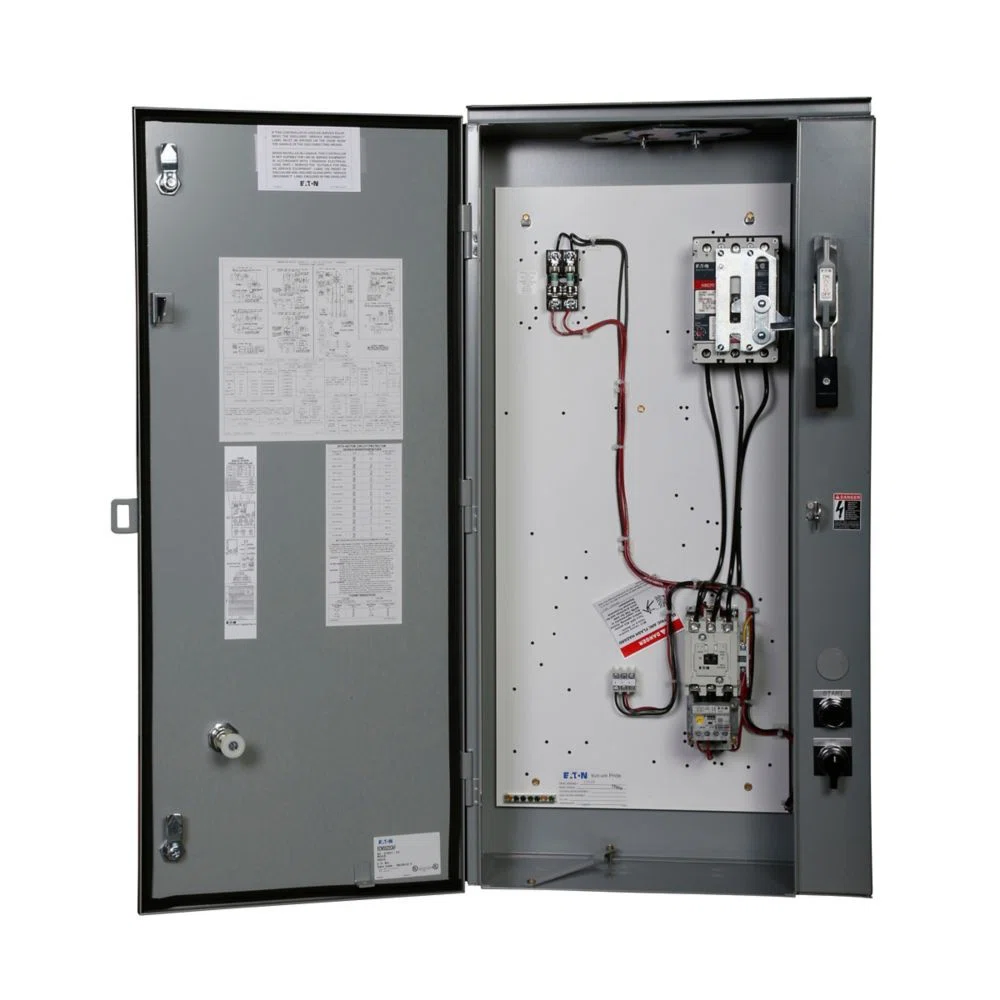

Features

• Long life, heavy duty, quick-acting, double break action motor circuit switch
• Features an adjustable magnetic trip characteristic for accurate, dependable fault protection and simultaneous trip of all poles to prevent single phasing
• Freedom overload relays with trip indication feature bi-metallic type operation with ambient compensation and a choice of either manual or automatic reset
• HAND/OFF/AUTO selector switch and start pushbutton
• Reset button - accessible from front of enclosure (booted for environmental protection) for operation of overload relay reset function
• Type 3R rainproof and sleet-resistant construction with stainless steel door latches and special corrosion-resistant paint
• Enclosure features include grounding lugs, padlocking feature on door latch, drip hood over door and provisions for top mounting conduit hubs
• Pole mounting feet with keyhole slots for easy mounting are standard on enclosures for sizes 1 to 5 (removable for sizes 1 to 5 standard width flange type enclosures)
• Brackets can be formed to the contour of the pole after mounting
• Provision on door latch for locking door closed, as well as provision for padlocking disconnect switch in OFF position, with a simple modification, disconnect can also be padlocked in ON position
• Wired for 480 V
• Without ground fault
• 440 VAC at 50 Hz, 460 VAC at 60 Hz coil voltage
• NEMA Size 2
