KILLARK

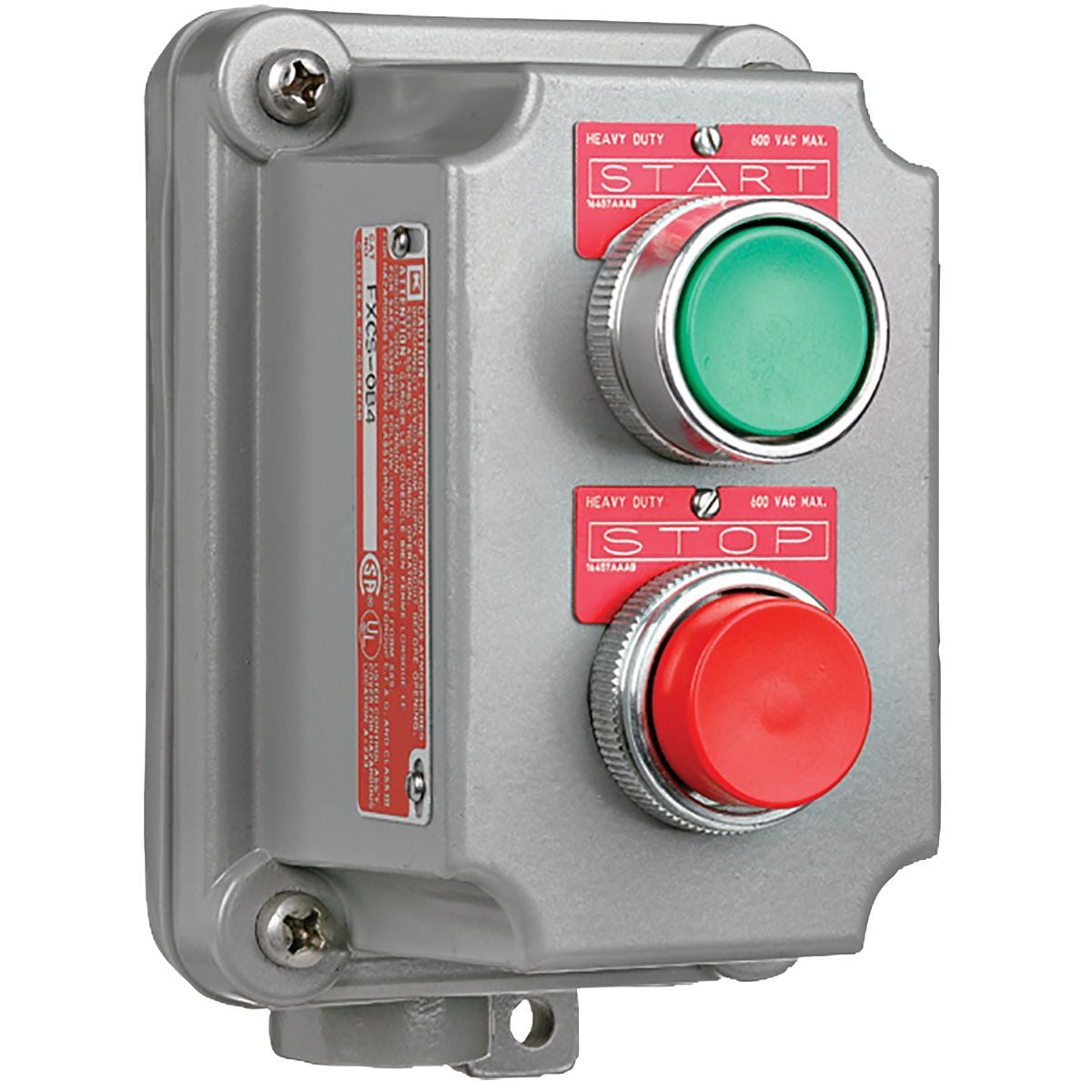

SEAL-X FXCS-0B4 Factory Sealed Control Station With Cover, 600 V AC, 10 A, 1NO-1NC Contact, NEMA 3/7/9 NEMA Rating

MFR:
Killark, a Hubbell affiliate
MFR #:
FXCS-0B4
UPC:
783936200477
Item #:
382783

Availability

Location Available Qty
Available Available to Order
$1,523.76 each
Manuals and Documentation
Catalog Number FXCS-0B4
Manufacturer Killark, a Hubbell affiliate
Brand KILLARK
Country of Origin United States
Made in USA Yes
Action Momentary
Actuator Double Pushbutton
Amperage Rating 10
Application SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Color Green;Red
Contact Configuration 1-NO/1-NC
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Material Copper-free aluminum
Number of Poles 2
Special Features Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Standard UL, CSA
UPC 783936200477
GTIN 00783936200477
Item Type Aluminum Factory Sealed Cover With Two Push Buttons
Size 6.75 in x 6.25 in x 4.875 in
Environmental Conditions Hazardous locations
Voltage Rating 600 VAC maximum
