Telemecanique

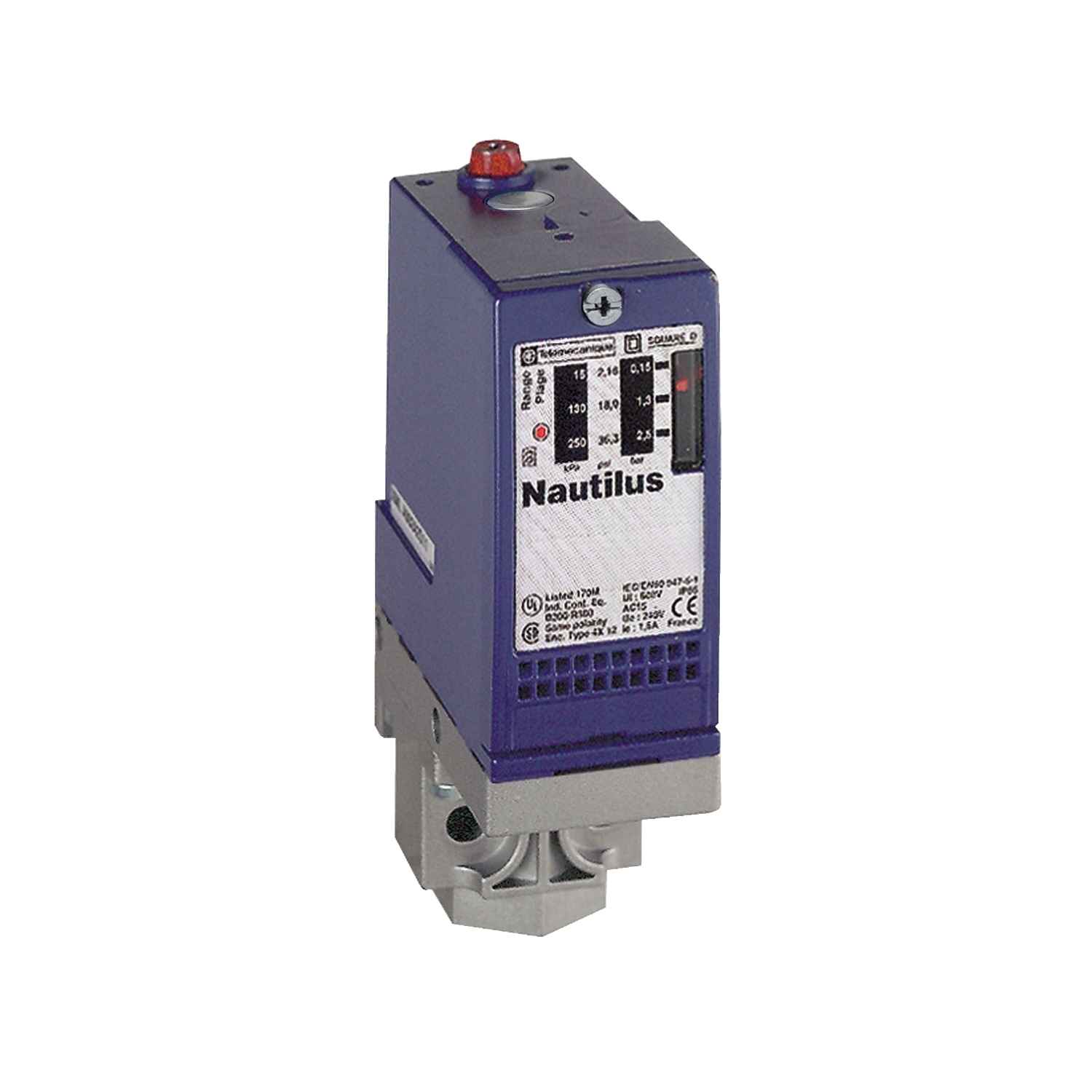

XMLA300D2S12 Nautilus OsiSense XMLA 1-Pole Electromechanical Pressure Sensor Fixed Differential Pressure Switch With Local Display, 0 to 4350 psi Pressure, 239.31/507.63 psi Differential, 1CO Contact, 1/4 in BSP Female/Screw Clamp Connection

MFR:
Telemecanique Sensors
MFR #:
XMLA300D2S12
Item #:
379024

Availability

Location Available Qty
Available Available to Order
$854.20 each

This XMLA electromechanical pressure switch has an adjustable differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in hydraulic oils up to 160C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 6 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 300bar, this makes it ideal for hydraulic presses, water jet cutting machines.

Manuals and Documentation
Catalog Number XMLA300D2S12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Detection of 1 single threshold;-;Control circuit
Contact Configuration 1 C/O
Enclosure Zinc alloy
Operating Cycles 60 CYC/MN
Process Connection G 1/4 (FEMALE) ISO 228
Special Features IP66 CONFORMING TO EN/IEC 60529,SCREW-CLAMPS TERMINALS 1 X 0.5...2 X 2.5 MM²-1 CONNECTOR ISO M20
Standard CSA-LROS (LLOYDS REGISTER OF SHIPPING)-UL-EAC-BV-CCC,IP66 EN/IEC 60529,UL 508-EN/IEC 60947-5-1-CSA C22.2 NO 14-CE,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=861800&lang=en-us
GTIN 03389110751451
Item Type Electromechanical pressure sensor;Electromechanical pressure sensor;Fixed differential
Operating Temperature -25-70 A Degrees C
System Pressure 300 BAR
