Leviton®

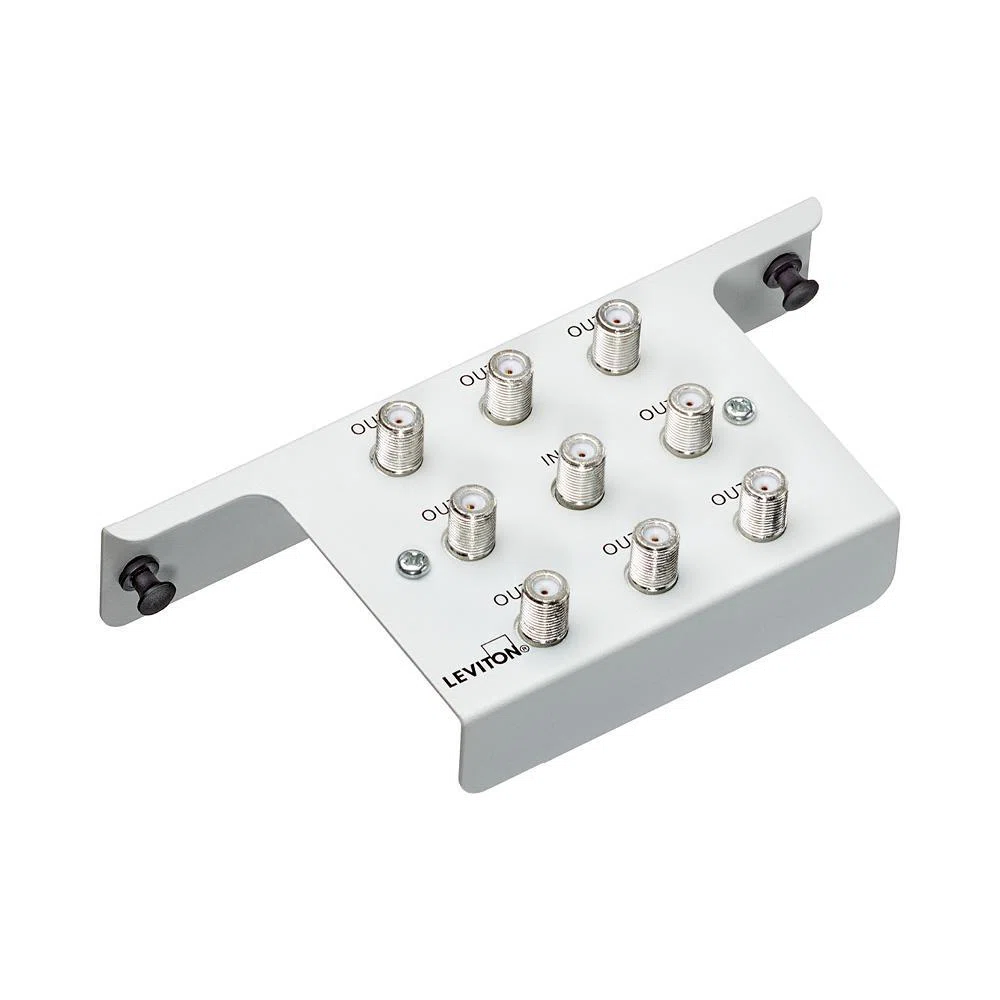

47690-8C2 Distribution Passive Video Splitter Module, F-Type Input, F-Type Output, 75 Ohm Impedance

MFR:
Leviton
MFR #:
47690-8C2
UPC:
078477058480
Item #:
37786

Availability

Location Available Qty
Available Available to Order
$108.11 each

Use 4, 6 and 8-way 1 GHz passive video splitters and passive video splitter modules to split digital cable, quality cable TV and off-air signals to 4, 6 or 8 televisions throughout a home or office. The video splitter modules are designed for easy installation in any Leviton® 14 in, 28 in or 42 in Structured Media® enclosure. The video splitters are easily installed in Leviton® MDU enclosures or used in any application where a passive video splitter is needed. These units feature die cast housings and printed circuit board construction.

Manuals and Documentation

Features

  • Splits video signals, outputs for up to 8 televisions
  • Provide digital cable, cable TV and other video services, via coaxial cable to any room in the house
  • Use with the video amplifier to increase signal quality, analog or standard cable applications only
  • Units come with mounting bracket for simple installation in Leviton® structured Media® enclosures
  • 75 Ohm termination caps included for unused connectors
  • Gold contacts on unit provide lowest conductive resistance
  • Splits TV signal, die cast housing and printed circuit board
  • 11.9 to 15.7 dB band ripple and 9.9 to 30 dB return loss
Manufacturer Part Number 47690-8C2
Brand Leviton®
Manufacturer Leviton
UPC 078477058480
Cable Type Coaxial
Color White
Dimensions 3 in L x 6.58 in W x 1.4 in H
Material Die Cast
Type Distribution
Alternative Part Number 7334092
Manufacturer Item Status Active
Country USA
Warranty 2 Years Limited
Standards Approvals SCTE Compliant | ATIC Listed | cULus Listed
Application Residential Applications
Includes Mounting Bracket
Impedance 75 Ohm
Input Type F-Type
Output Type F-Type
