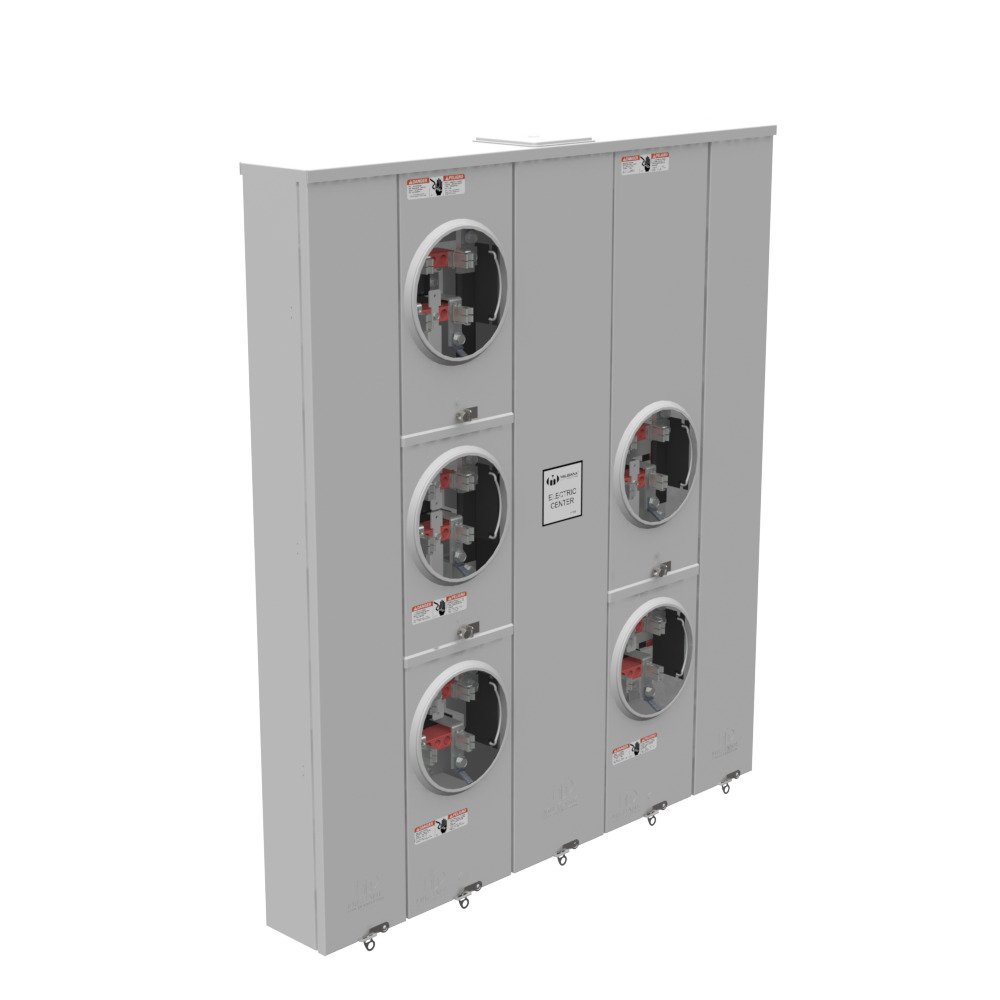

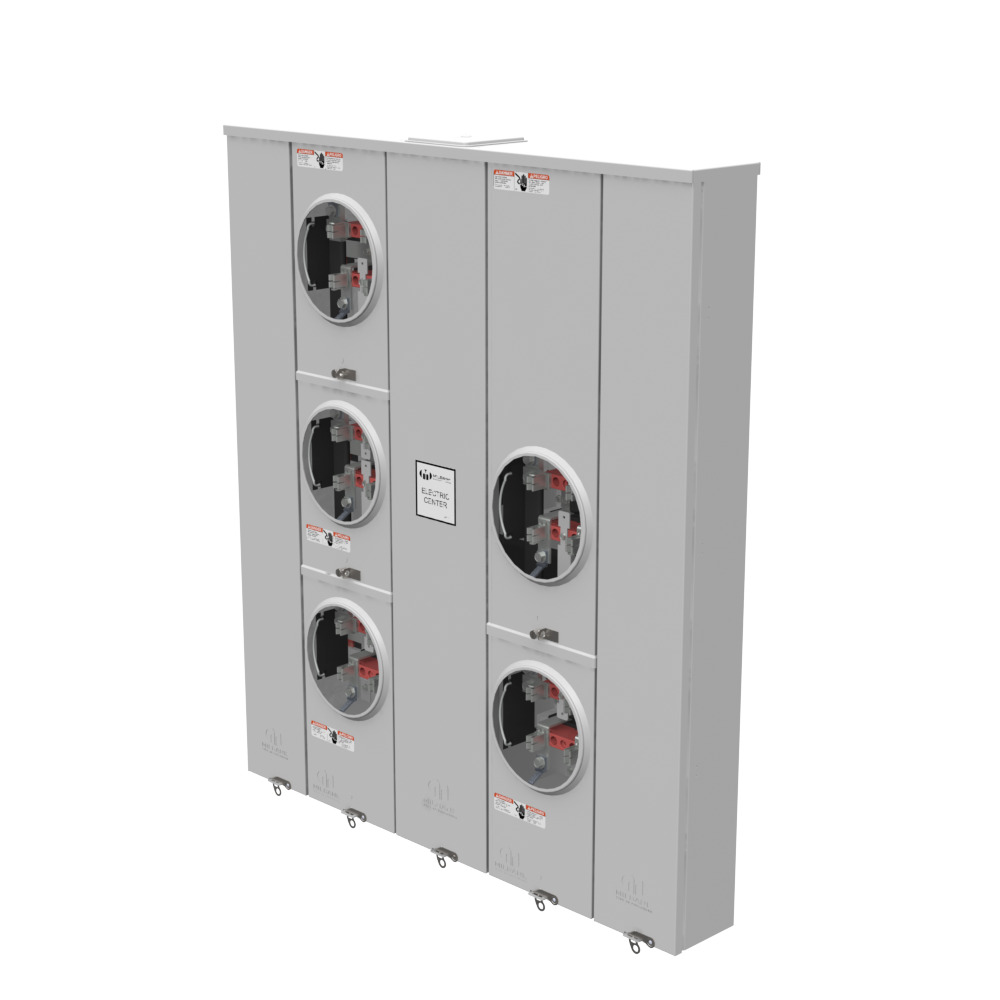

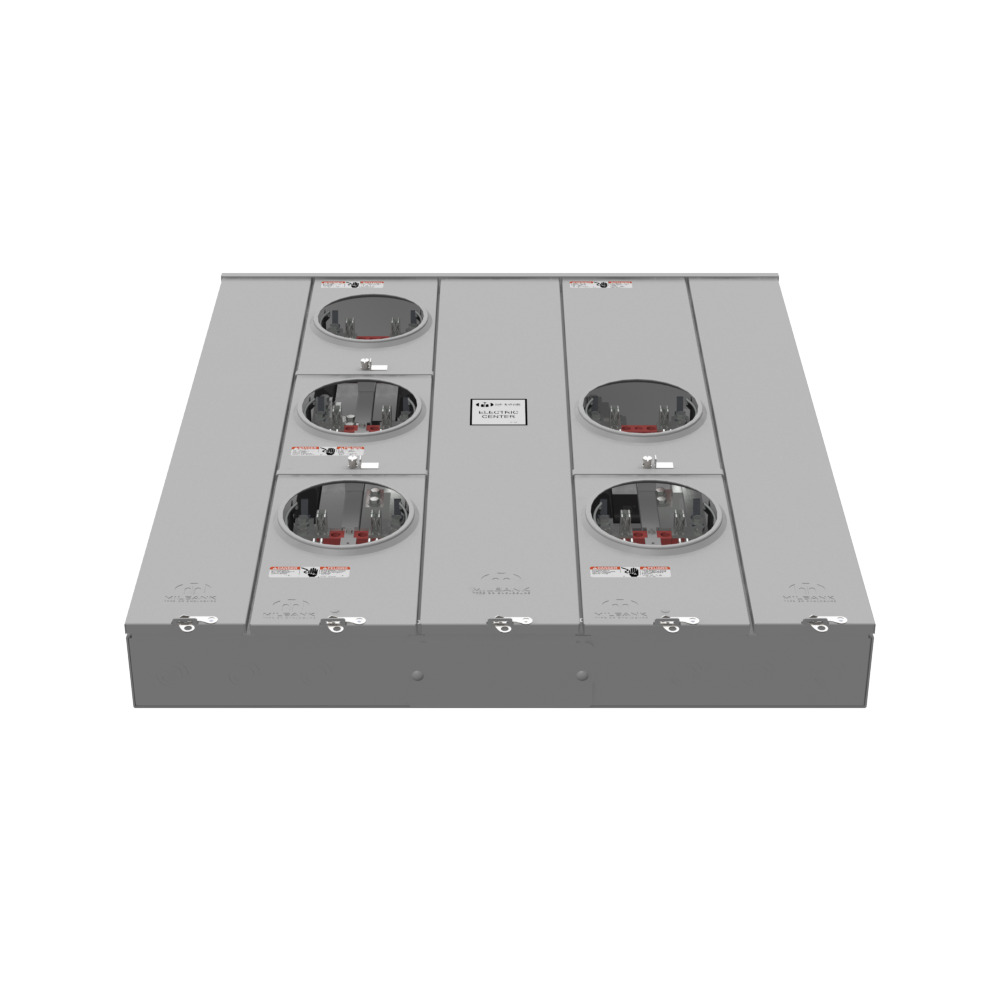

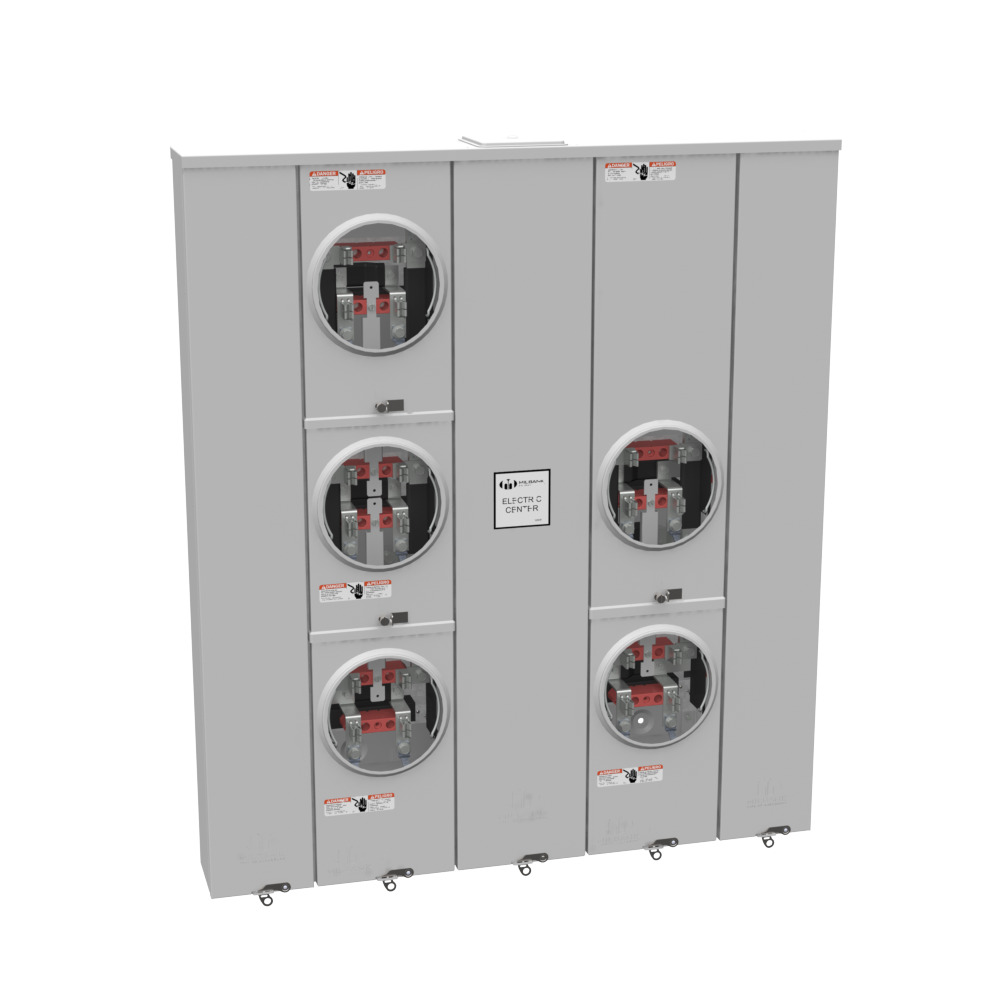

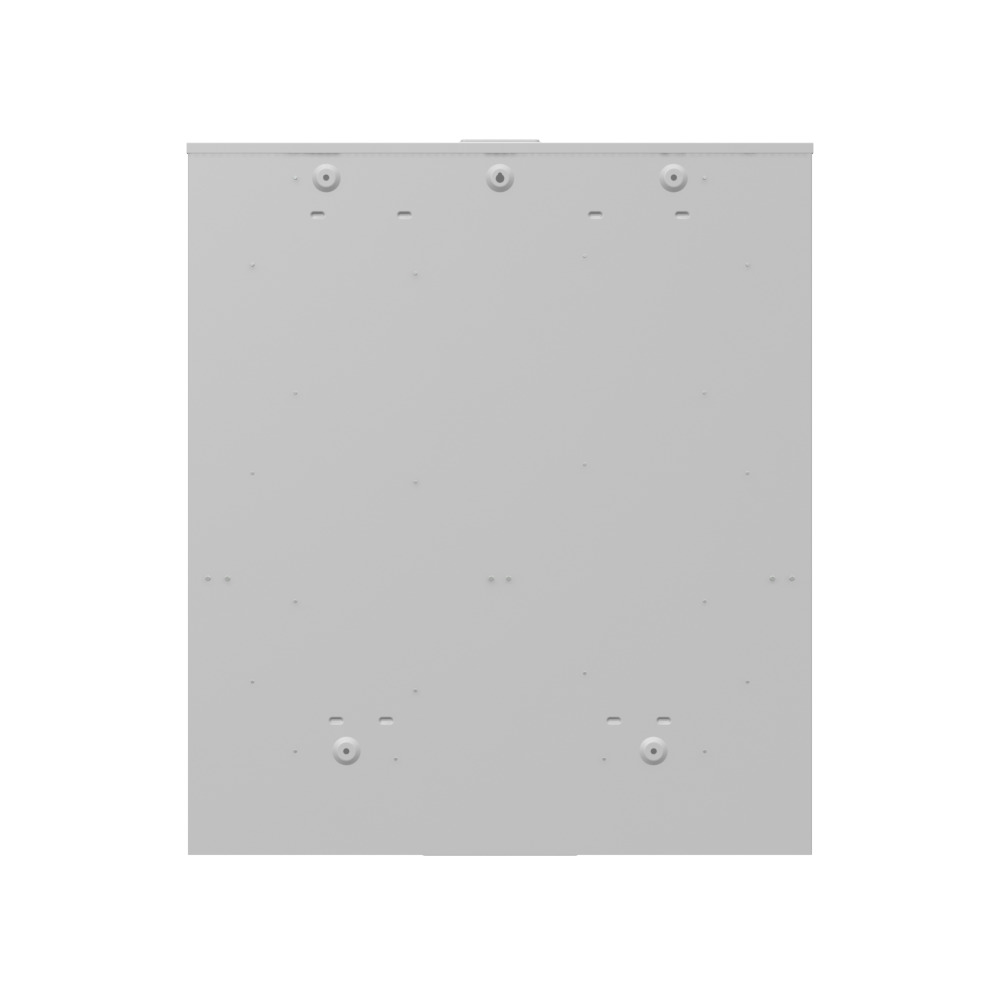

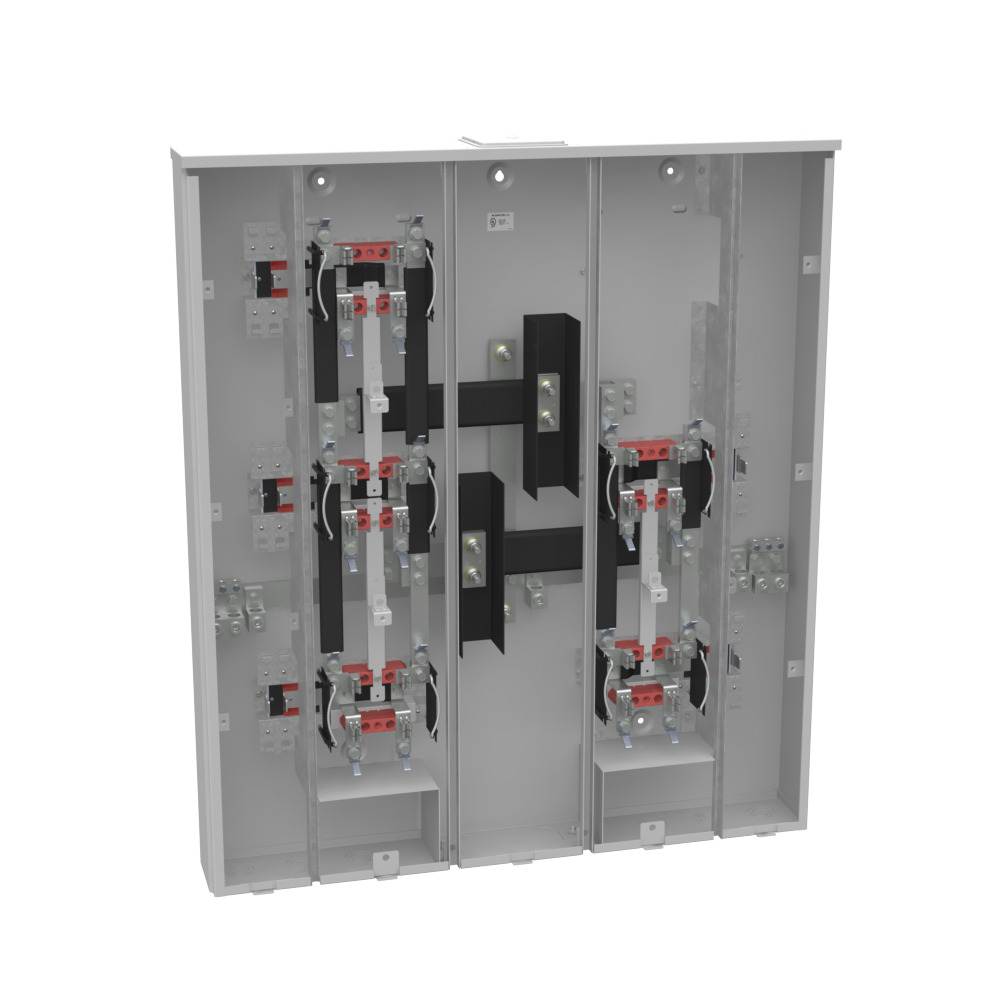

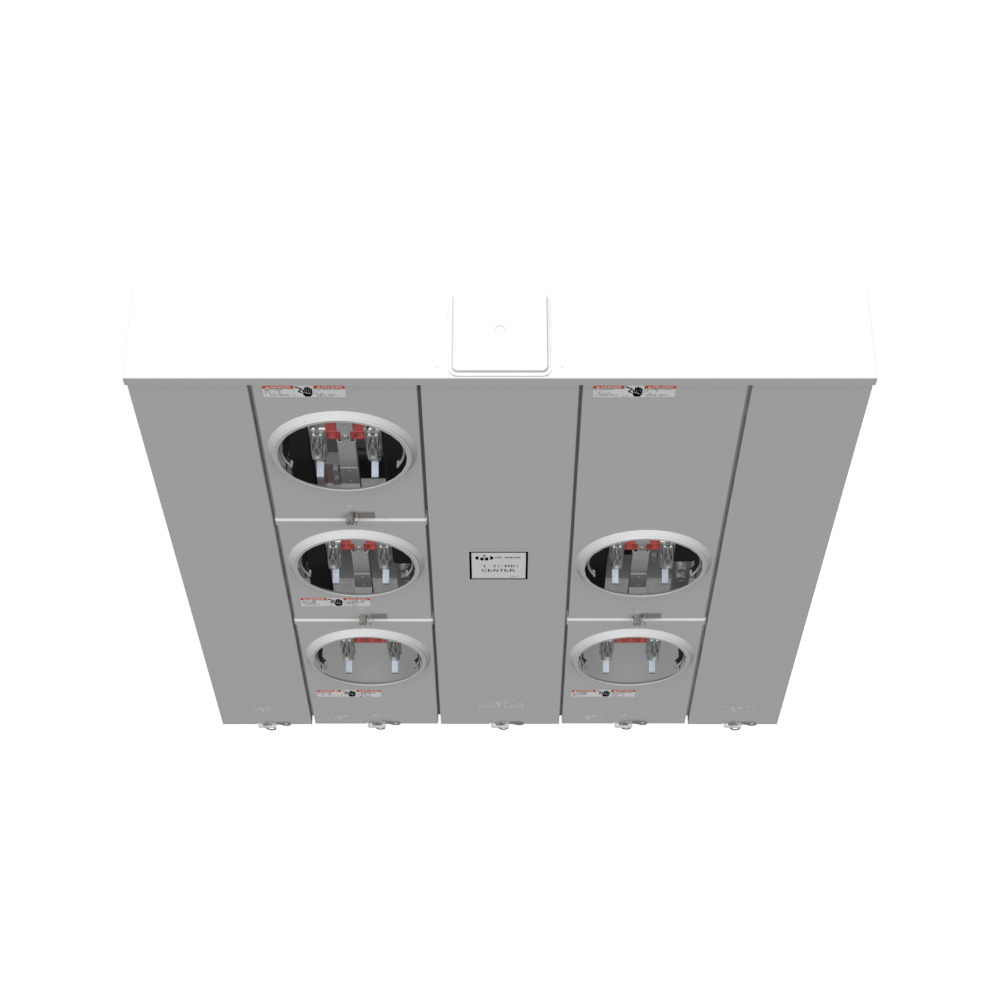

U2865-X-KK-PED 4 Term, Ringless, Large Closing Plate, Horn Bypass, 5 Position, 5-200 Amp, Main Breaker Provision Pedestal Mount Provision
- MFR:
- Milbank
- MFR #:
- U2865-X-KK-PED
- UPC:
- 784572136380
- Item #:
- 376377
U2865-X-KK-PED 4 Term, Ringless, Large Closing Plate, Horn Bypass, 5 Position, 5-200 Amp, Main Breaker Provision Pedestal Mount Provision
- MFR #:
- U2865-X-KK-PED
- UPC:
- 784572136380
- Item #:
- 376377
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,490.78
each
4 TERM RNGLS LRG CLS PLT HRN BYPS 5 POS 5-200 AMP MN BRKR PROV PED MNT PROV
| Catalog Number | U2865-X-KK-PED |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572136380 |
| GTIN | 00784572136380 |
| Item Type | Ringless Meter Socket |
| Length | 4.844 |
| Length UOM | Inch |
| Width | 36 |
| Width UOM | Inch |
| Height | 41 |
| Height UOM | Inch |
| Size | 4.844L x 36W x 41H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
