Panduit

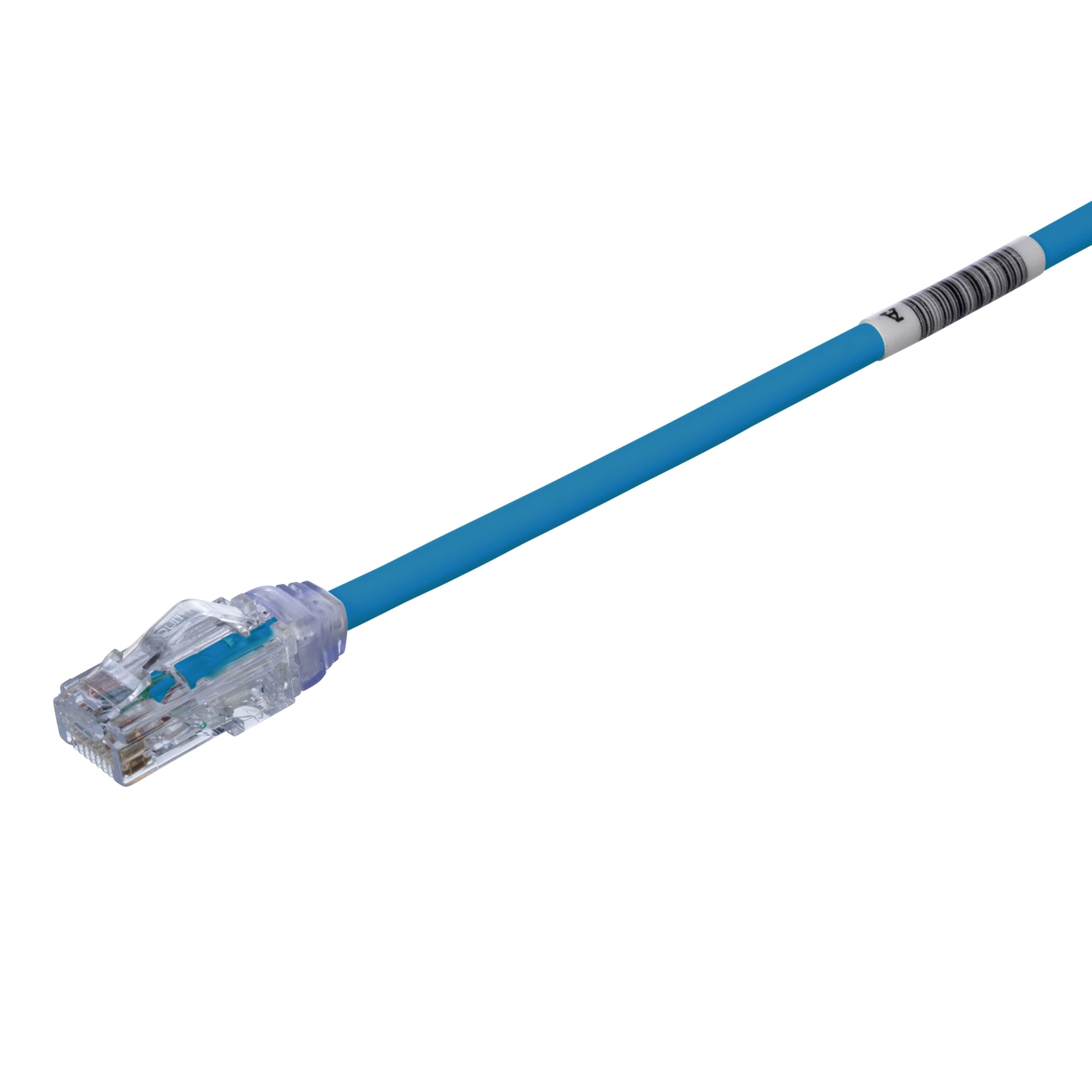

UTP28X25BU PanNet TX6A-28 Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Copper Conductor, RJ45 Modular Plug Connector, 25 ft L Cord, Blue

MFR:
Panduit
MFR #:
UTP28X25BU
UPC:
074983289325
Item #:
376053

Availability

Location Available Qty
Available Available to Order
$51.94 each

The TX6A-28 Cat 6A UTP Patch Cord is a 25-Foot, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28X25BU
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Color Blue
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/
UPC 074983289325
GTIN 00074983289325
Item Type Patch Cord
Length 25.00
Length UOM Inch
Outside Diameter 0.185 IN
Temperature Rating 140 °F
Wire Size 28
