Panduit

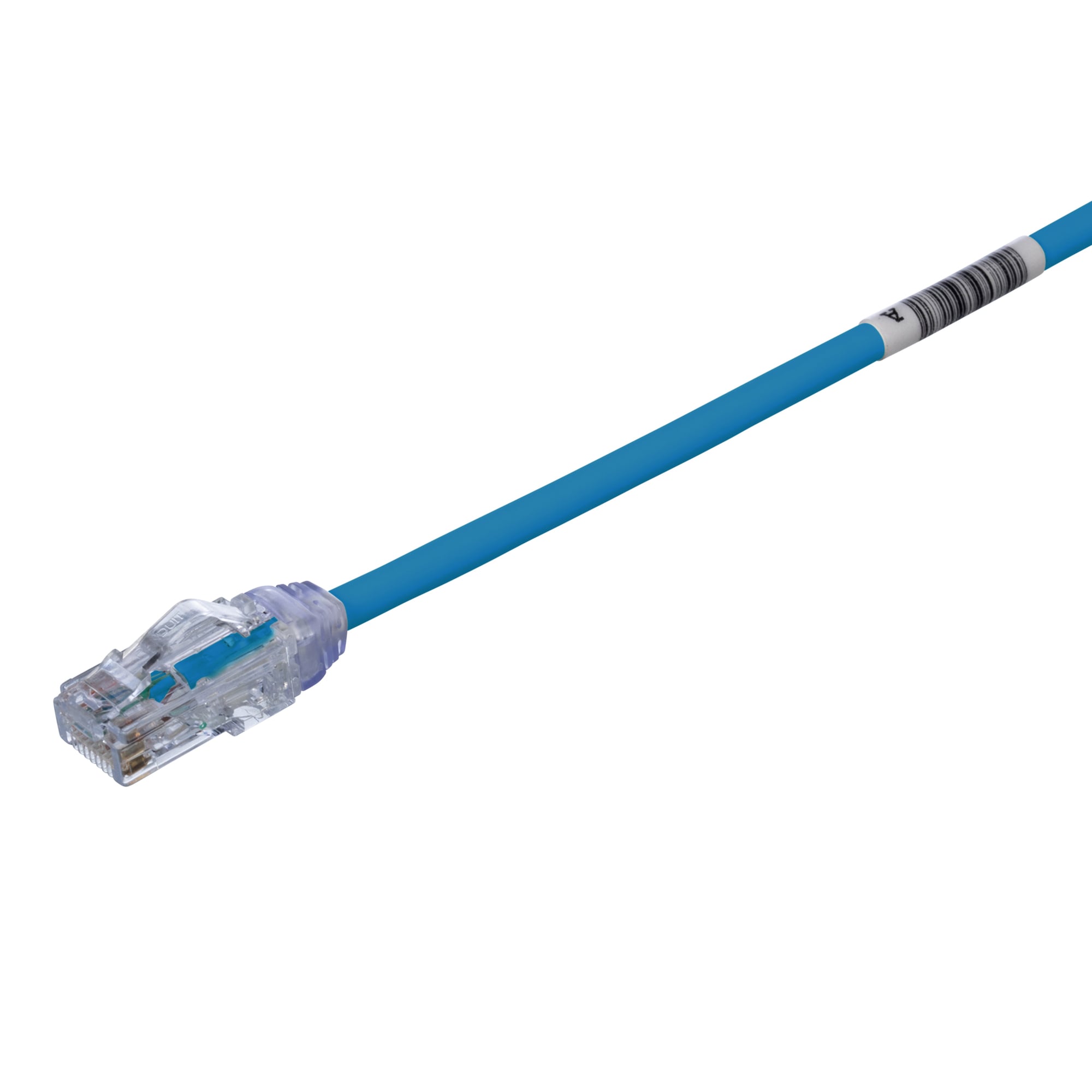

Cat 6A 28 AWG UTP Copper Patch Cord, 20 ft, Blue

MFR:
Panduit
MFR #:
UTP28X20BU
UPC:
074983219025
Item #:
376052

Availability

Location Available Qty
Available Available to Order
$45.97 each

The TX6A-28 Cat 6A UTP Patch Cord is a 20-Foot, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28X20BU
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Color Blue
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/
UPC 074983219025
GTIN 00074983219025
Item Type Patch Cord
Length 20.00
Length UOM Inch
Outside Diameter 0.185 IN
Temperature Rating 140 °F
Wire Size 28
