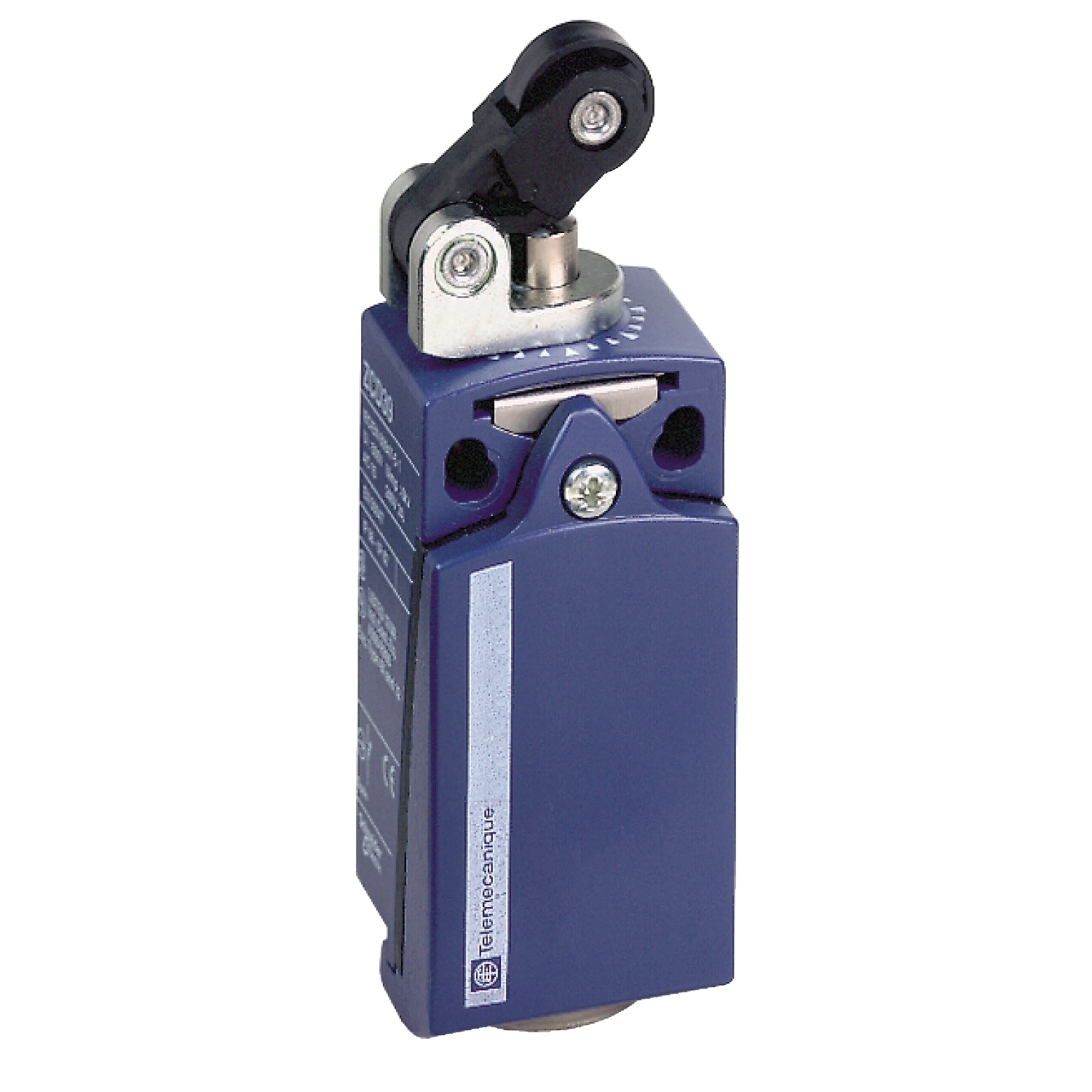

XCKD2121P16 OsiSense XC Standard Format Fixed XC Limit Switch, 240 V AC, 3 A, Roller Lever Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKD2121P16
- UPC:
- 785901626503
- Item #:
- 374235
XCKD2121P16 OsiSense XC Standard Format Fixed XC Limit Switch, 240 V AC, 3 A, Roller Lever Plunger Spring Return Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKD2121P16
- UPC:
- 785901626503
- Item #:
- 374235
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XCKD compact format (CENELEC EN 50047) limit switch has a steel roller lever plunger with horizontal actuation and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals and Documentation
| Catalog Number | XCKD2121P16 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Lateral approach, 1 direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever plunger thermoplastic |
| Amperage Rating | 10 |
| Application | COMPACT VARIABLE |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/6/12/13 IP66/67 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 , DC IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-IEC 60947-5-1-UL 508-IEC 60204-1-EN 60204-1-CSA C22.2 NO 14,IK06 EN 50102,IP66IEC 60529-IP67IEC 60529,UL-CSA-CCC,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=855952&lang=en-us |
| UPC | 785901626503 |
| GTIN | 03389110196894 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 240VAC/250VDC |
