Telemecanique

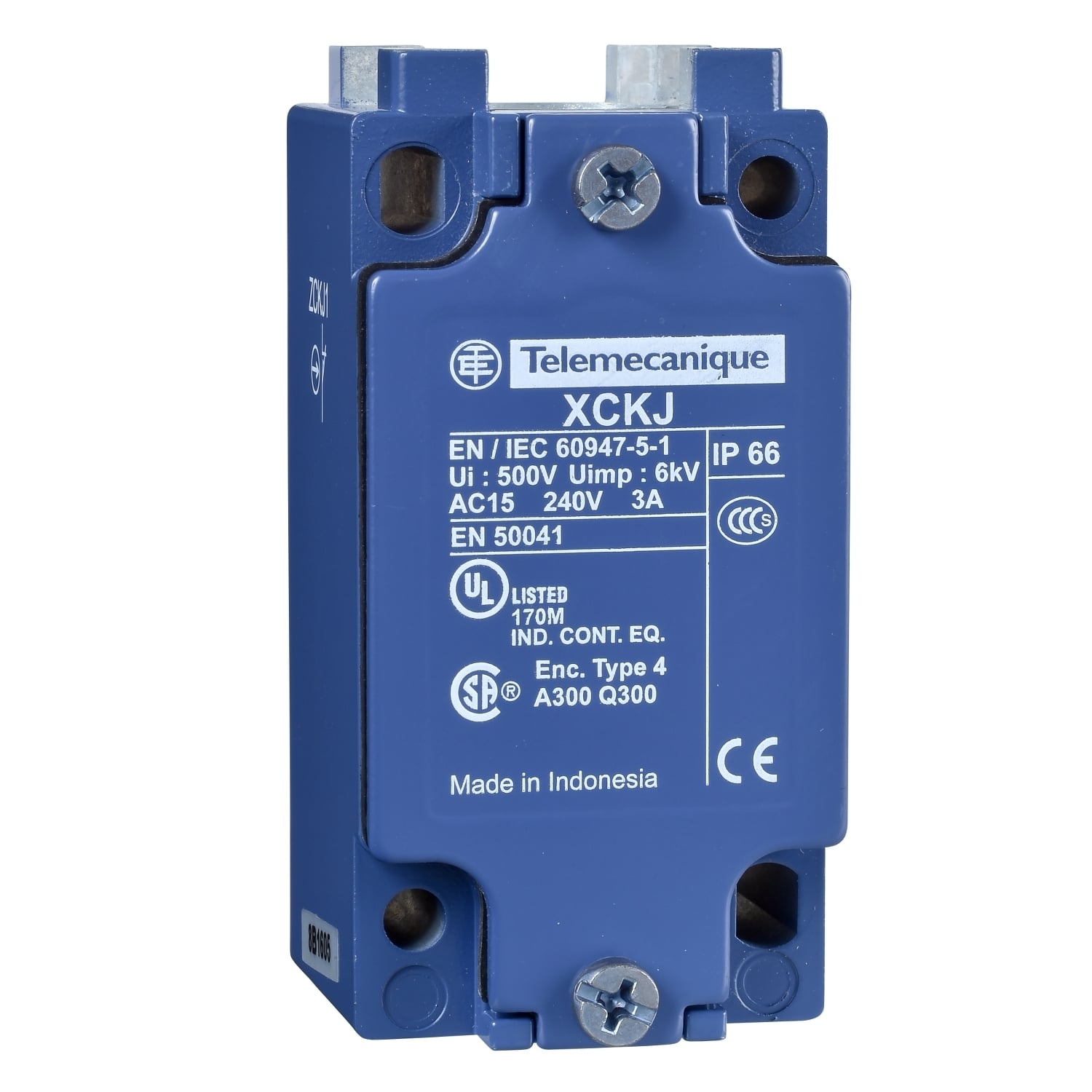

ZCKJ2H7 ZCK 2-Pole 2-Step Fixed Low Temperature Metal Limit Switch Body, 2CO Contact, For Use With Non-Plug-In XCKJ Series Limit Switch, 10 A at 500 V AC Contact, IP65/IK08 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ2H7
UPC:
785901466451
Item #:
373555

Availability

Location Available Qty
Available Available to Order
$156.07 each

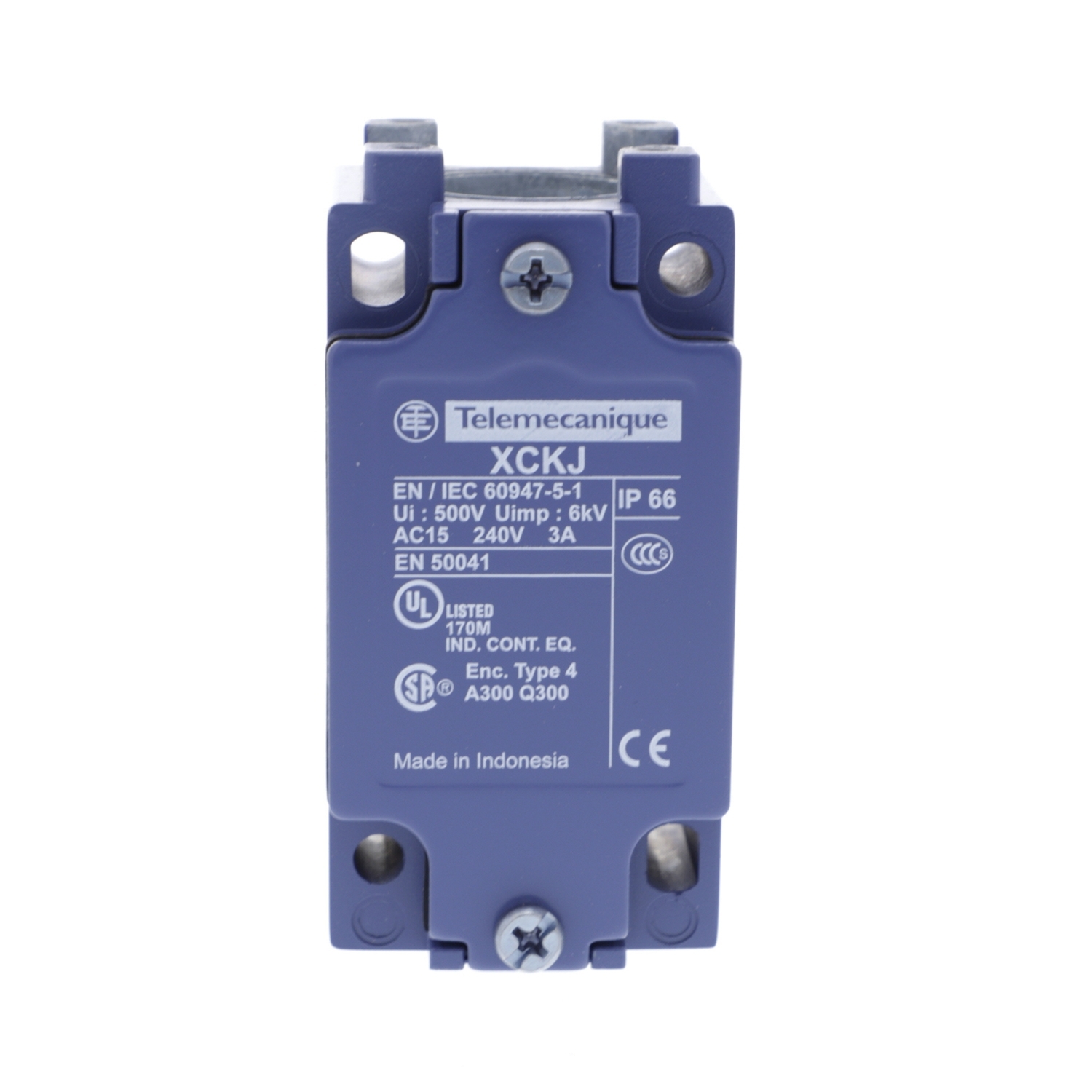

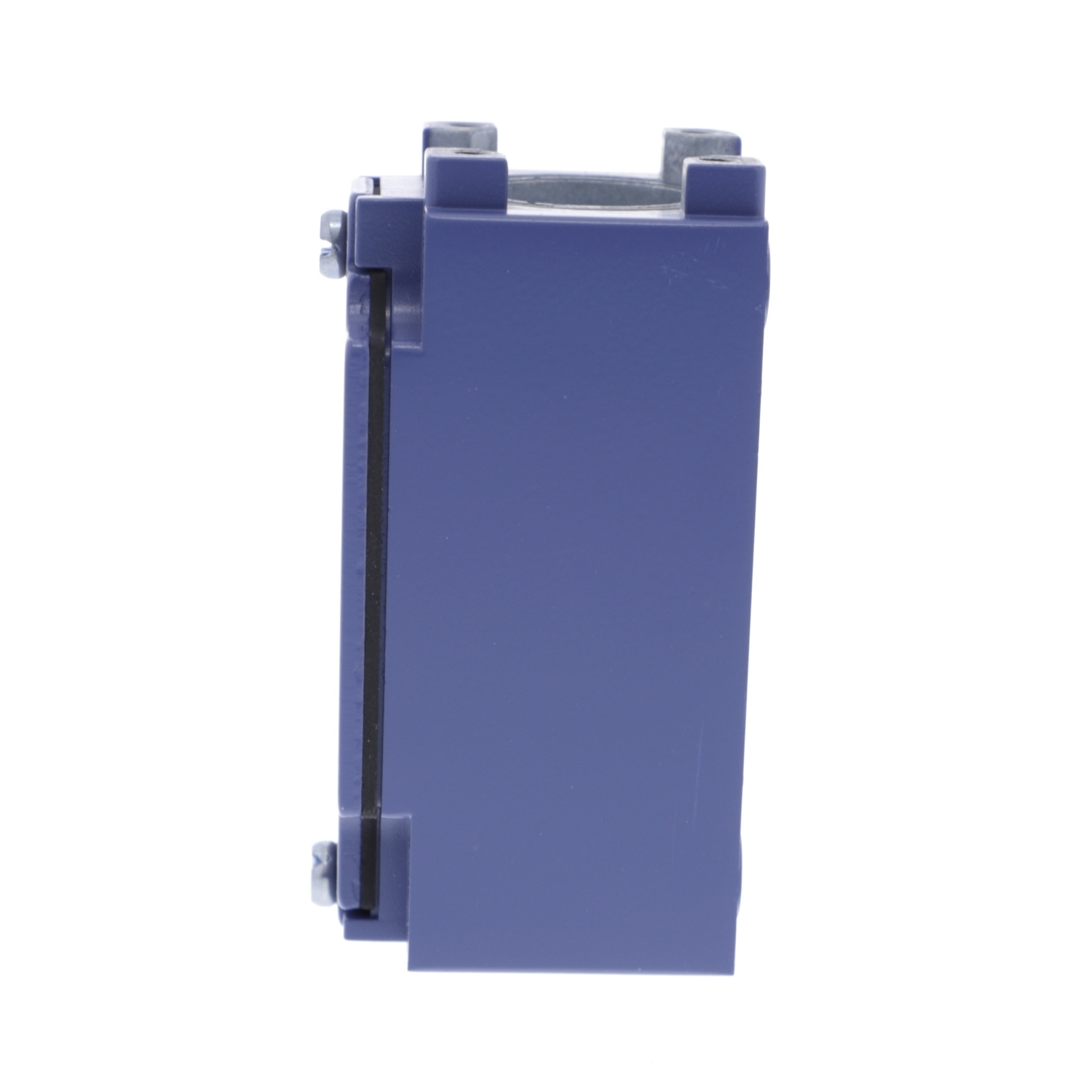

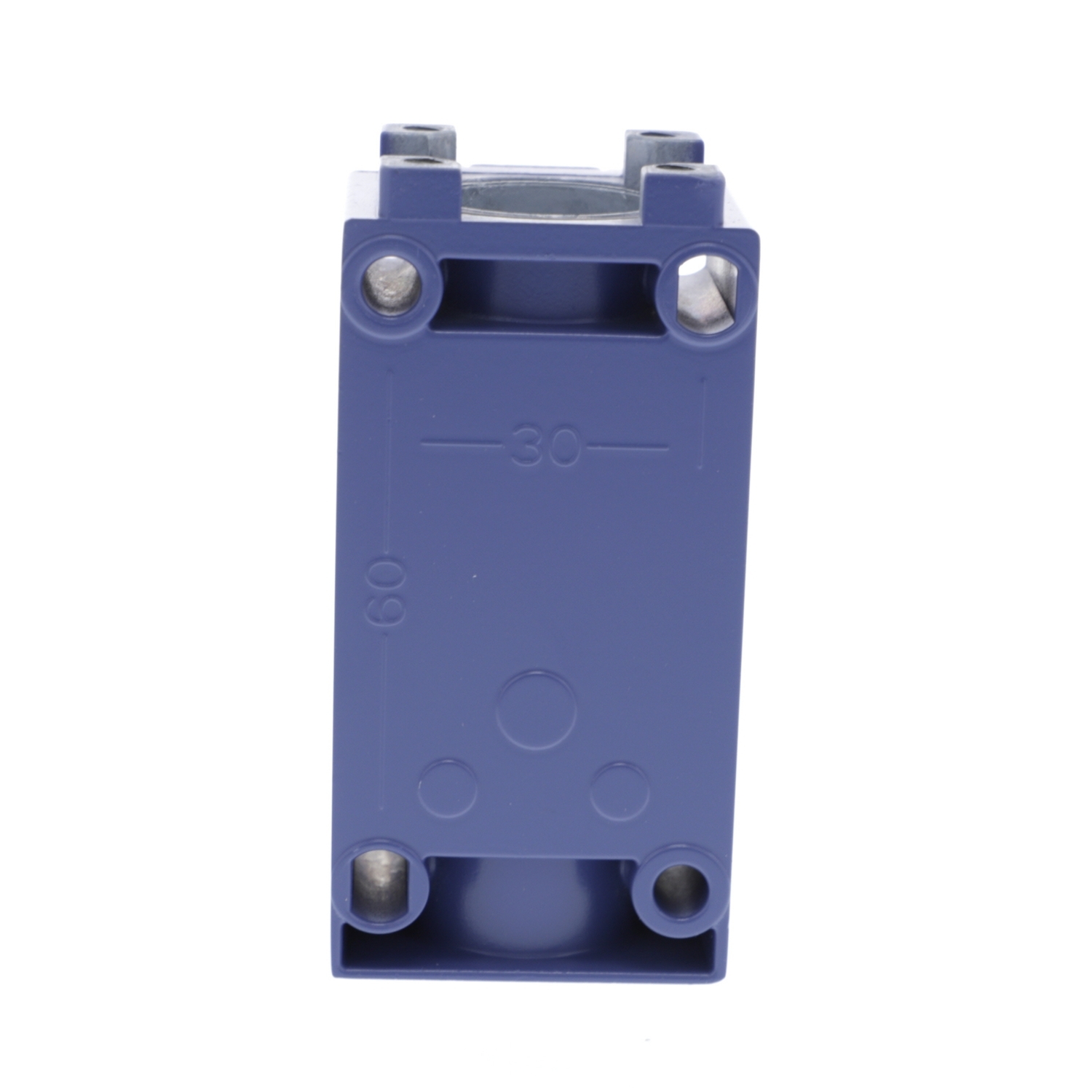

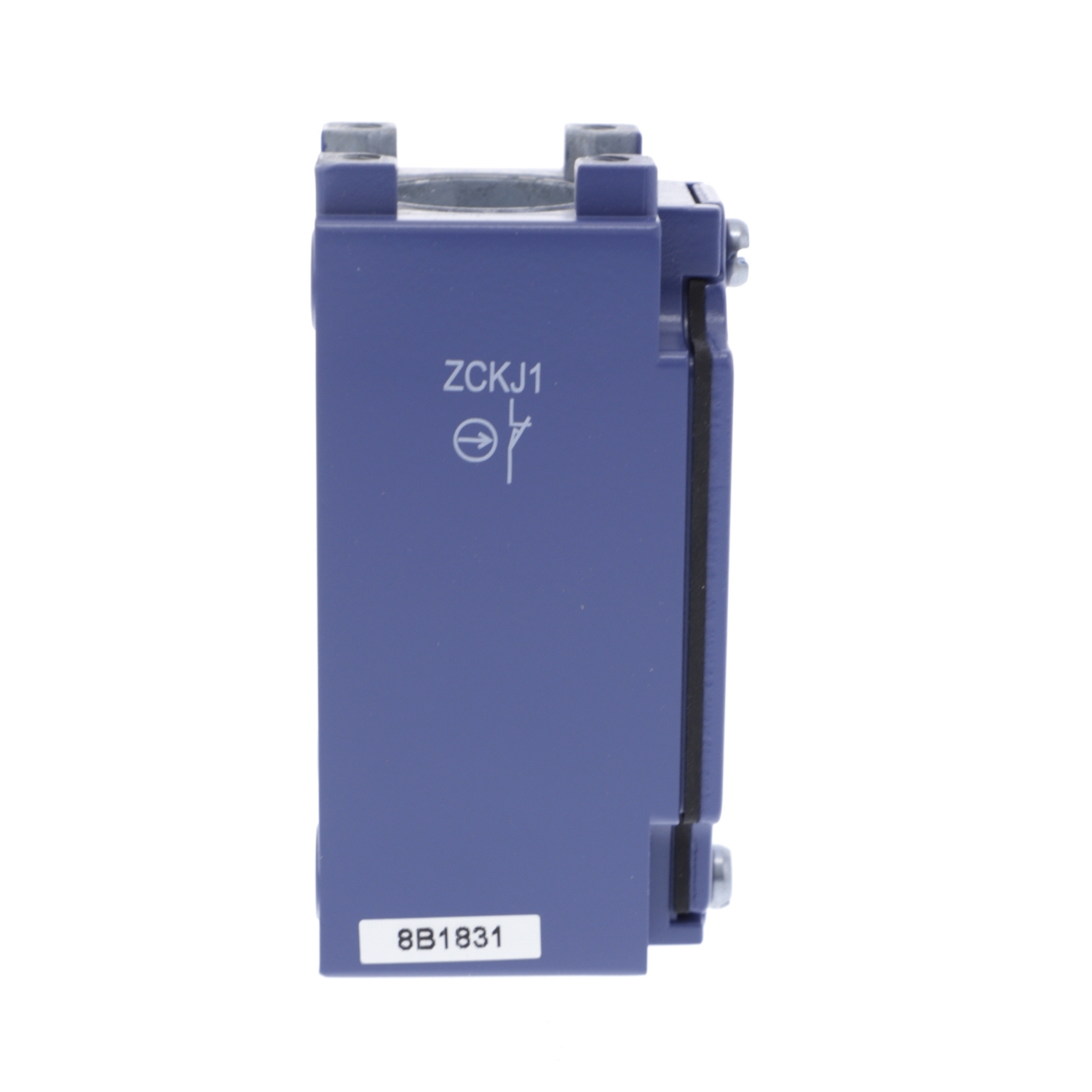

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 2 x co snap action (simultaneous) contacts and a 1/2" NPT cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKJ2H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879638&lang=en-us
UPC 785901466451
GTIN 03389110325454
Item Type Limit switch body
Size 2.36
Environmental Conditions LOW TEMPERATURE
Operating Temperature -40-70 A Degrees C LOW TEMPERATURE
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
