BURNDY

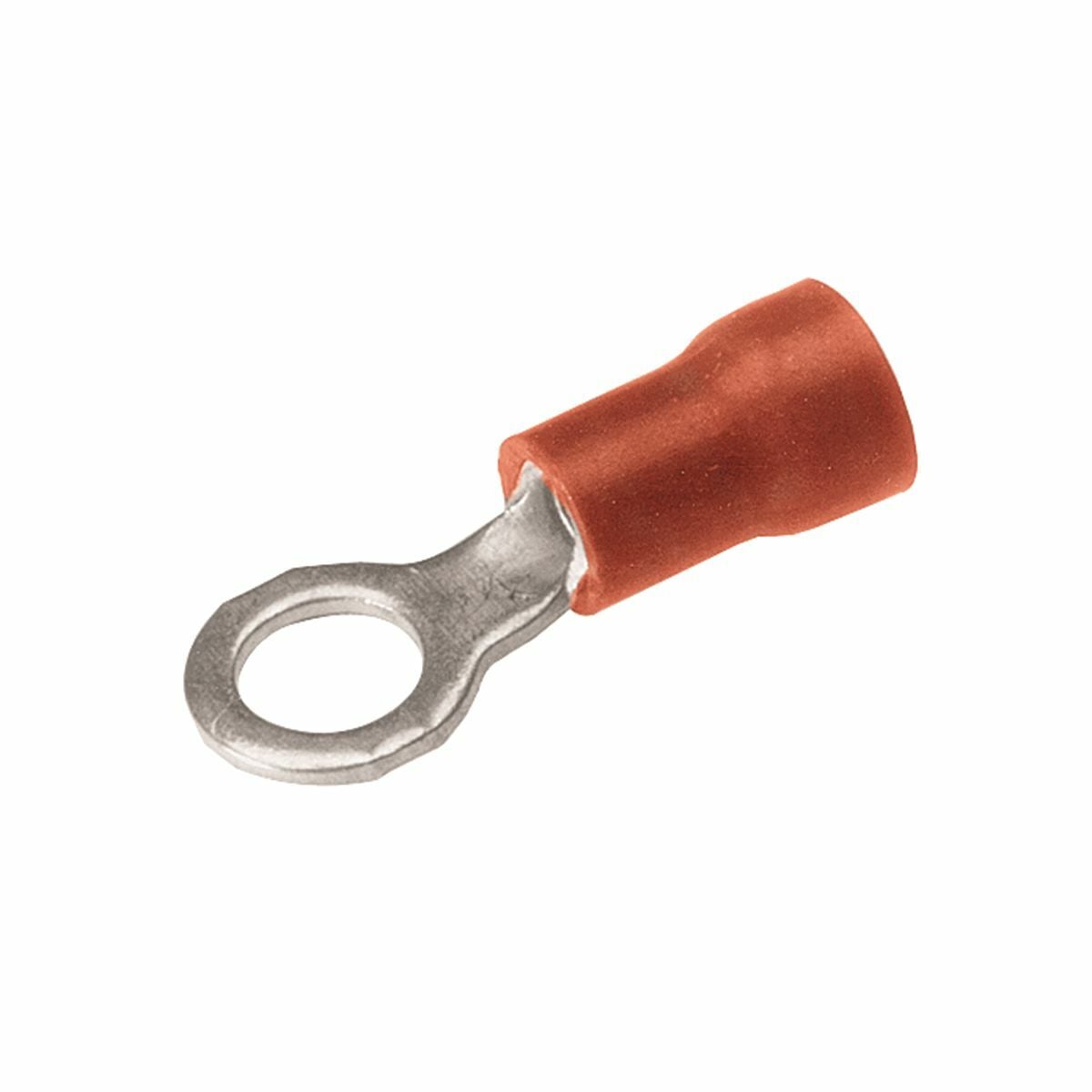

TP1610 TP Series Insulated Ring Tongue Terminal, 22 to 16 AWG Conductor, 0.85 in L, Shrouded Barrel, Electrolytic Copper, Red

MFR:
Burndy, a Hubbell affiliate
MFR #:
TP1610
UPC:
781810714843
Item #:
37339

Availability

Location Available Qty
Available 1,700 ea
$1.8277 each
Manuals and Documentation
Catalog Number TP1610
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Commercial And Light Duty Industrial Control And Power Circuit Applications
Insulation Y
Material Copper
Special Features Features: VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications, Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600 V Makes TP Terminals Versatile And Economical, 105 DEG C Maximum, Expanded Insulation Support Accepts Standard And Large Wire Diameters: Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry: Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel: Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Insulation Diameter (maximum): 0.145 IN, Bulk Catalog Number: BA16E10, Temperature Rating: 105 DEG C Maximum, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-89-1, MR15, MR8-G96 Tool, Tape Mounted Catalog Number: BA16E10M, Color Code: Red, Wire Strip Length: 13/64 IN, Wire Insulation Grip: No, Finish: Electro-Tin Plated
Standard UL467
UPC 781810714843
GTIN 00781810714843
Item Type Ring Tongue
Cross Reference Products R16-10V-S
