Hubbell Wiring Device - Kellems

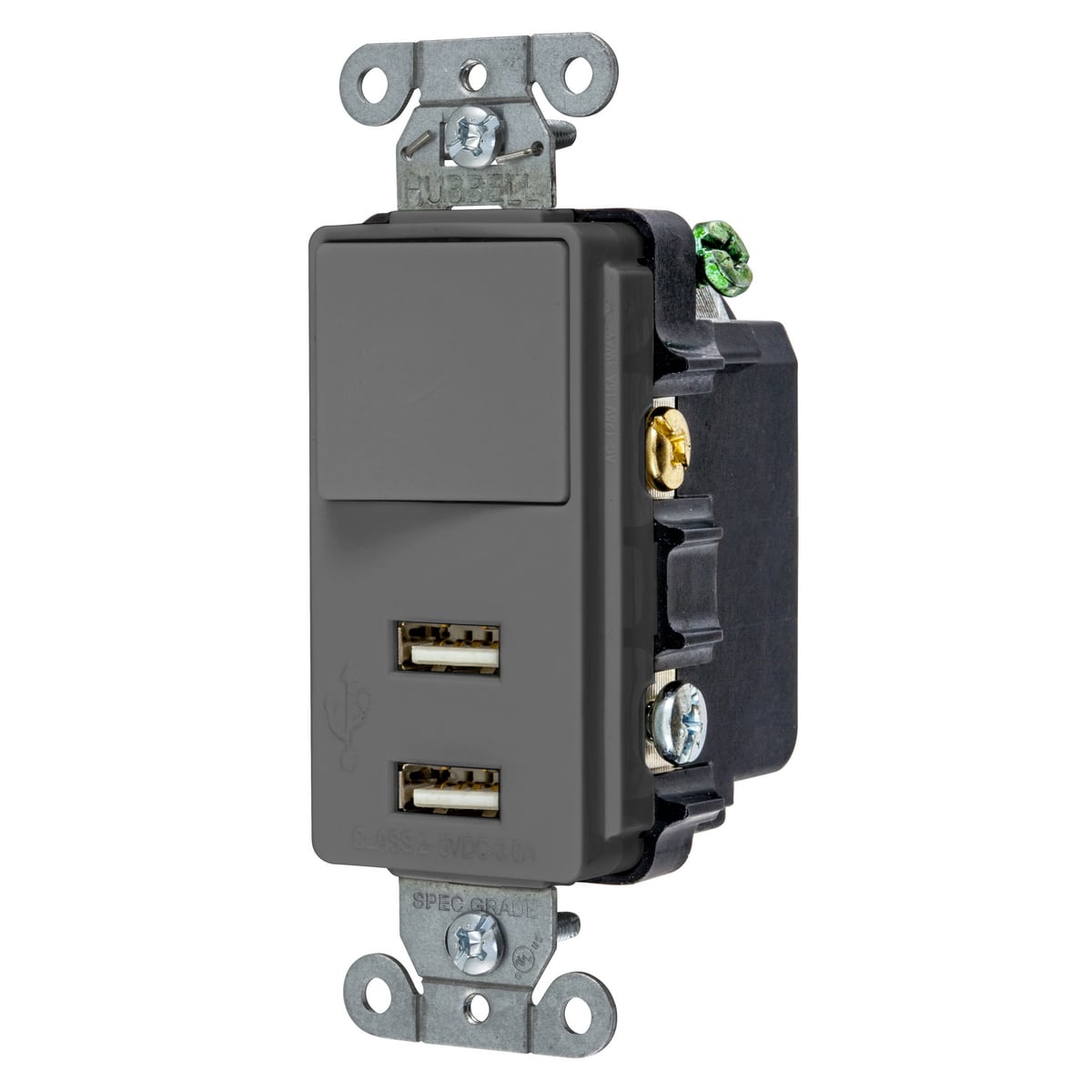

USB102GY Decorator Duplex Standard Sized Switch Combo Outlet, Electrical Ratings: 125 V, 3 A, 375 W, 1 Phase, 2 Poles, 3 Wires, Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
USB102GY
UPC:
883778305672
Item #:
372531

Availability

Location Available Qty
Available Available to Order

More ways to charge faster with Hubbells line of USB chargers, available in Type C, Type A&C or the legacy Type A, all with a USB power output from 2 to 5 amps. Hubbells USB charger duplex receptacle provides both USB and electrical power in a standard single gang opening. Designed to provide maximum charging for portable electronics, the USB ports are capable of charging two tablets simultaneously. The 4 port charger outlets feature a USB port door, which enables power when open. When closed, all power is switched off. This eliminates all current flow for a zero no-load draw. Buildings looking to provide 100% green efficiency in power delivery will maximize LEED and energy efficiency design.

Manuals and Documentation
Catalog Number USB102GY
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 3
Application Industrial, Commerical and Residential
Color Gray
Connection Terminal Screws
Material Thermoplastic/Composite
Mounting Screw
Number of Poles 2
Number of Wires 3-Wire Grounding
Special Features 2) USB Ports
Standard UL498, UL1310
UPC 883778305672
GTIN 00883778305672
Item Type Decorator Switch
Size Standard Sized Product
Environmental Conditions Indoor Dry unless protected by additional means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 5 Output, 125 Input
Wattage 375 W
Wire Size #14 AWG to #10 AWG
