SQUARE D

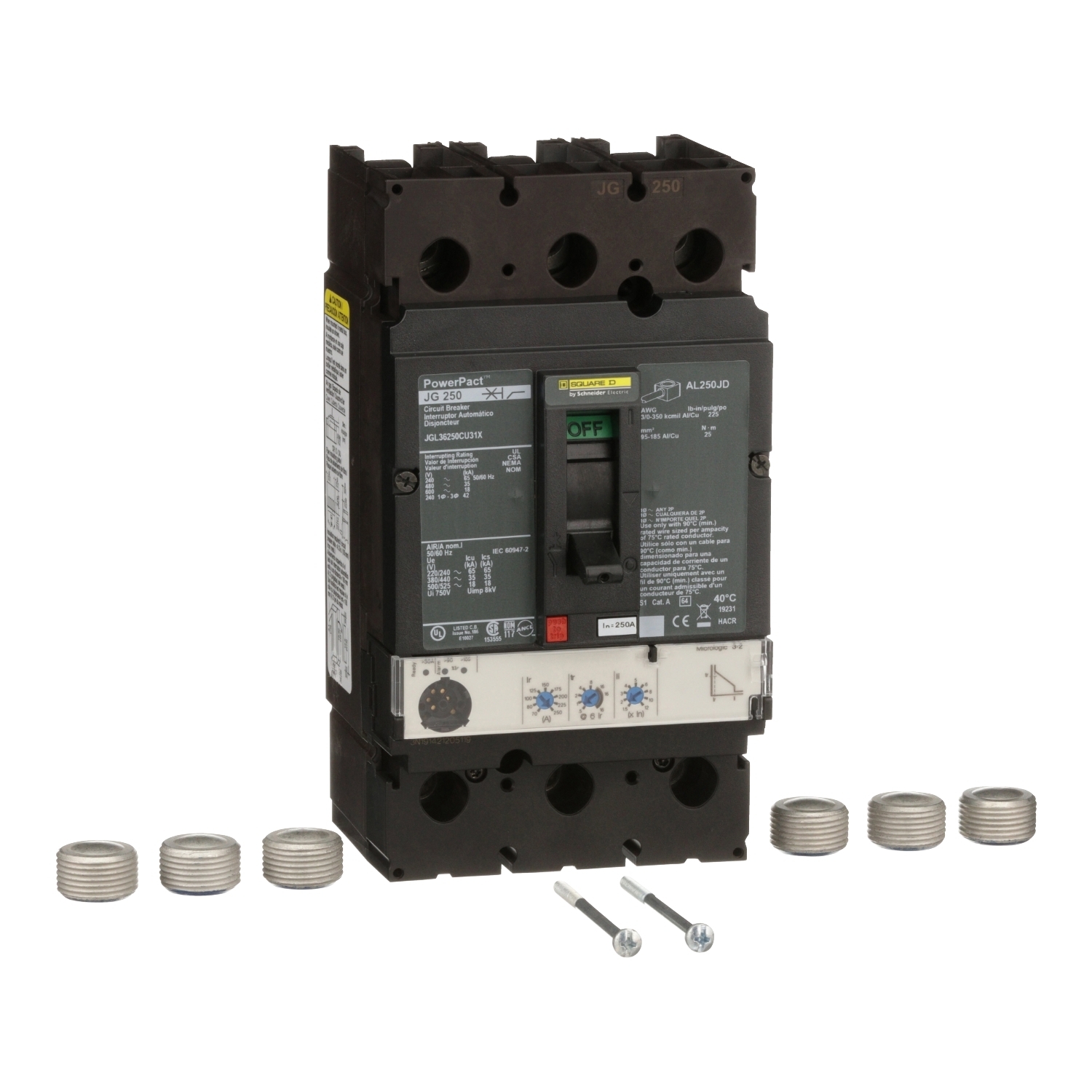

JGM36250U31X PowerPact Molded Case Circuit Breaker, 600 V AC, 250 A, 18 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
JGM36250U31X
UPC:
785901949244
Item #:
371558

Availability

Location Available Qty
Available Available to Order
$4,339.83 each

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line side and terminal nuts on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JGM36250U31X
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Canada
Made in USA No
Application Distribution
Connection Lugs, line;terminal nut, load; AWG 3/0...350 kcmil aluminium/copper terminals
Control Toggle
Number of Poles 3
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423267727&lang=en-us
UPC 785901949244
GTIN 00785901949244
Item Type Circuit breaker
Trip Type Electronic, standard, MicroLogic 3.2, LI
