Hubbell Wiring Device - Kellems

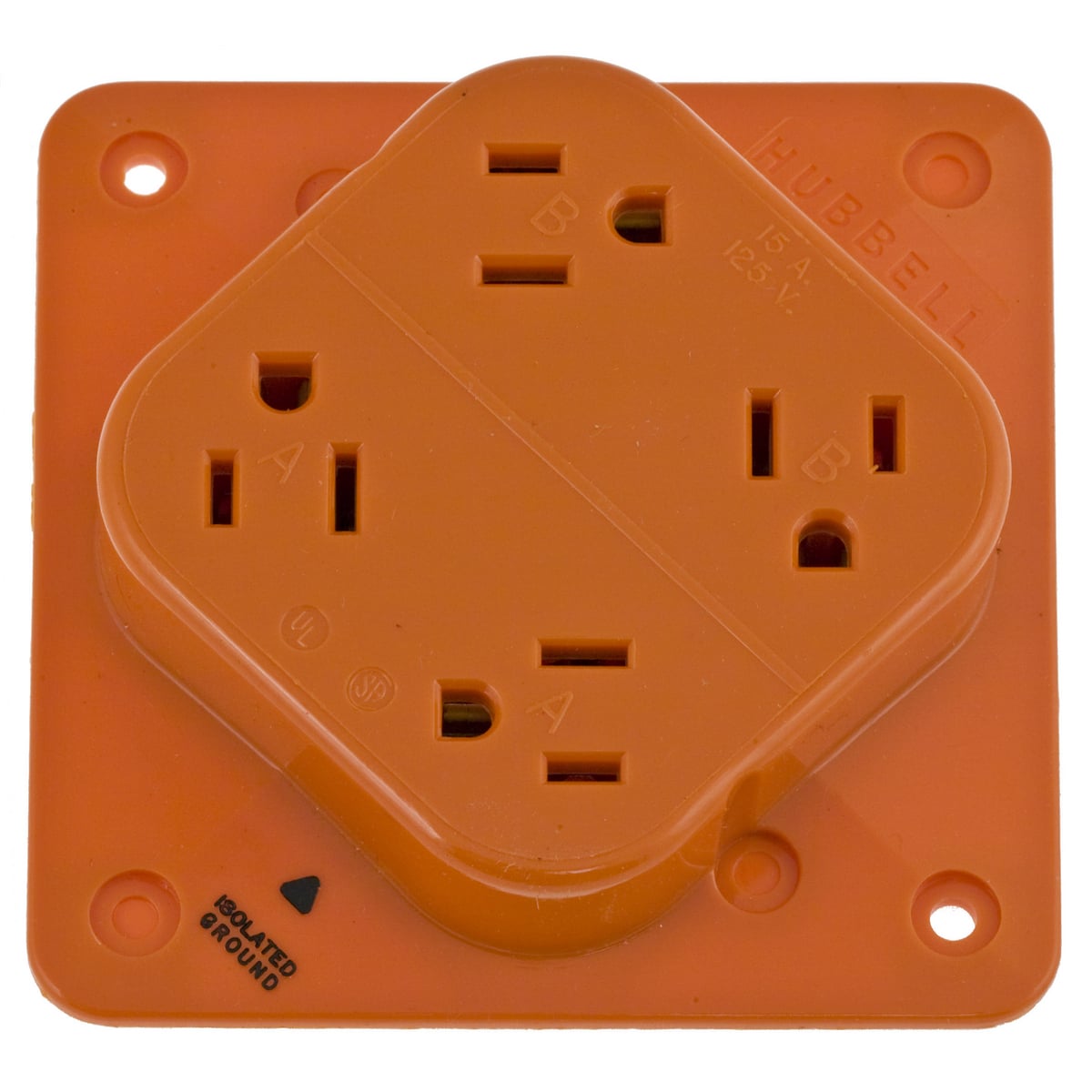

IG415 1-Phase Extra Heavy Duty Isolated Ground Quad Standard Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Orange

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG415
UPC:
783585422251
Item #:
371412

Availability

Location Available Qty
Available Available to Order
$55.74 each

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG415
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 15
Application Commercial Grade
Color Orange
Connection Screw Terminals
Material Polycarbonate
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated Ground
Standard Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant
UPC 783585422251
GTIN 00783585422251
Item Type 4- Plex Receptacle
Size 4.30 in x 0.92 in x 4.30 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #14 AWG to #12 AWG
