Square D™

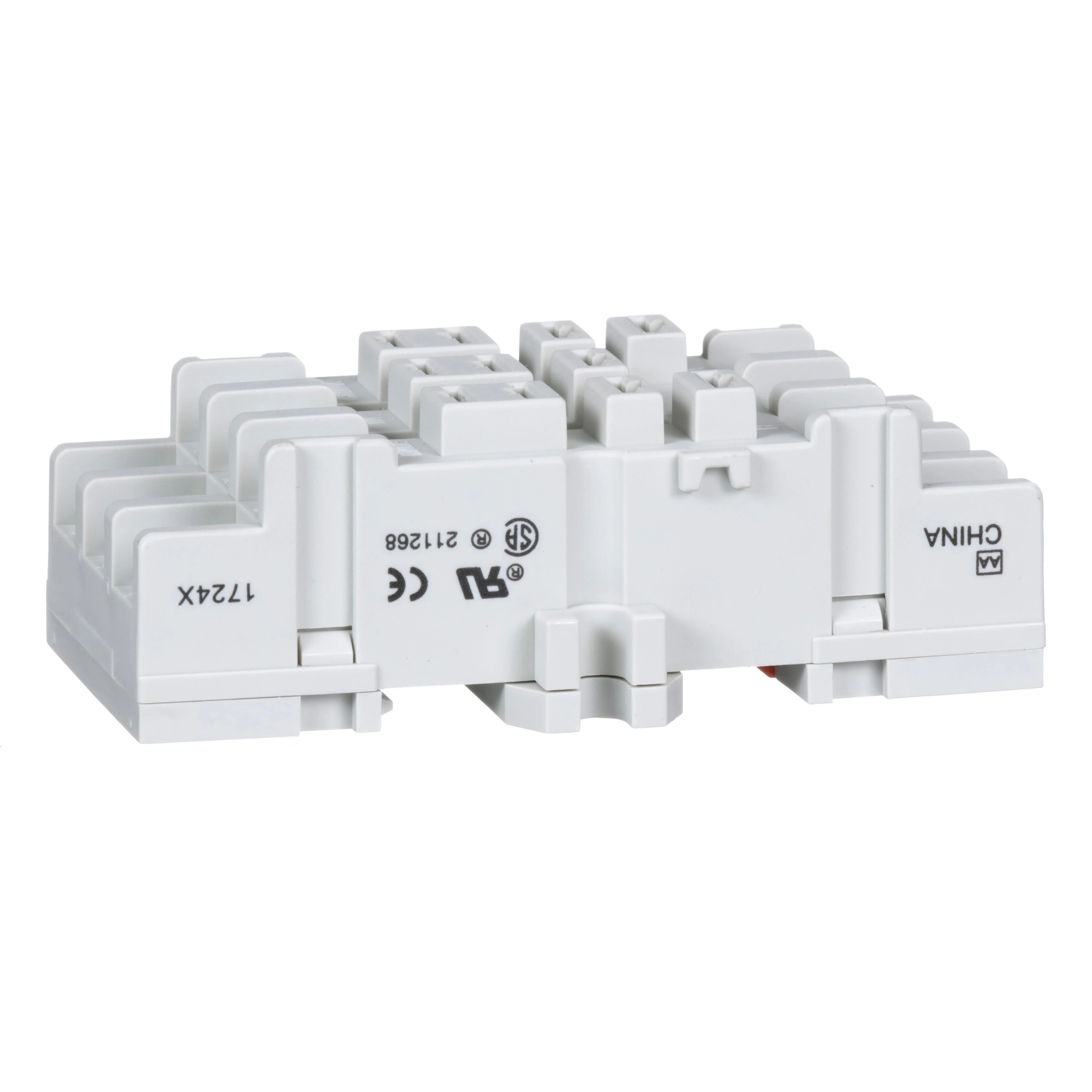

8501NR82 Type K Double Tier Relay Socket, 600 V AC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 11 Pin

MFR:
Schneider Electric
MFR #:
8501NR82
UPC:
785901583868
Item #:
37032

Availability

Location Available Qty
Available 2,150 ea
$41.03 each

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KUR and 8501KUDR relays will plug into this relay socket which is designed for 11 spade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Manuals and Documentation

Features

  • Compatible with plug in control relay Schneider Electric
  • It is flexibility design for space-saving
  • Easy installation and connect to the relay from its socket
  • Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Manufacturer Part Number 8501NR82
Brand Square D™
Manufacturer Schneider Electric
UPC 785901583868
EAN 0785901583868
Country Of Origin US
Amperage Rating 10 A
Dimensions 3.13 in L x 1.7 in W x 1.03 in H
Mounting Type DIN Rail/Panel
Series 8501N
Suitable For Use With Class 8501 Series Miniature Plug-In Relay
Type Type K Double Tier
Voltage Rating 600 V AC
Alternative Part Number 8102461
Manufacturer Item Status Active
Country USA
Warranty 18 months
Standards Approvals RoHS Compliant | CE Certified | CSA Certified | UL Listed | PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Application For use with relays applications
Number Of Pins 11
Terminal Type Screw Clamp
