Discontinued

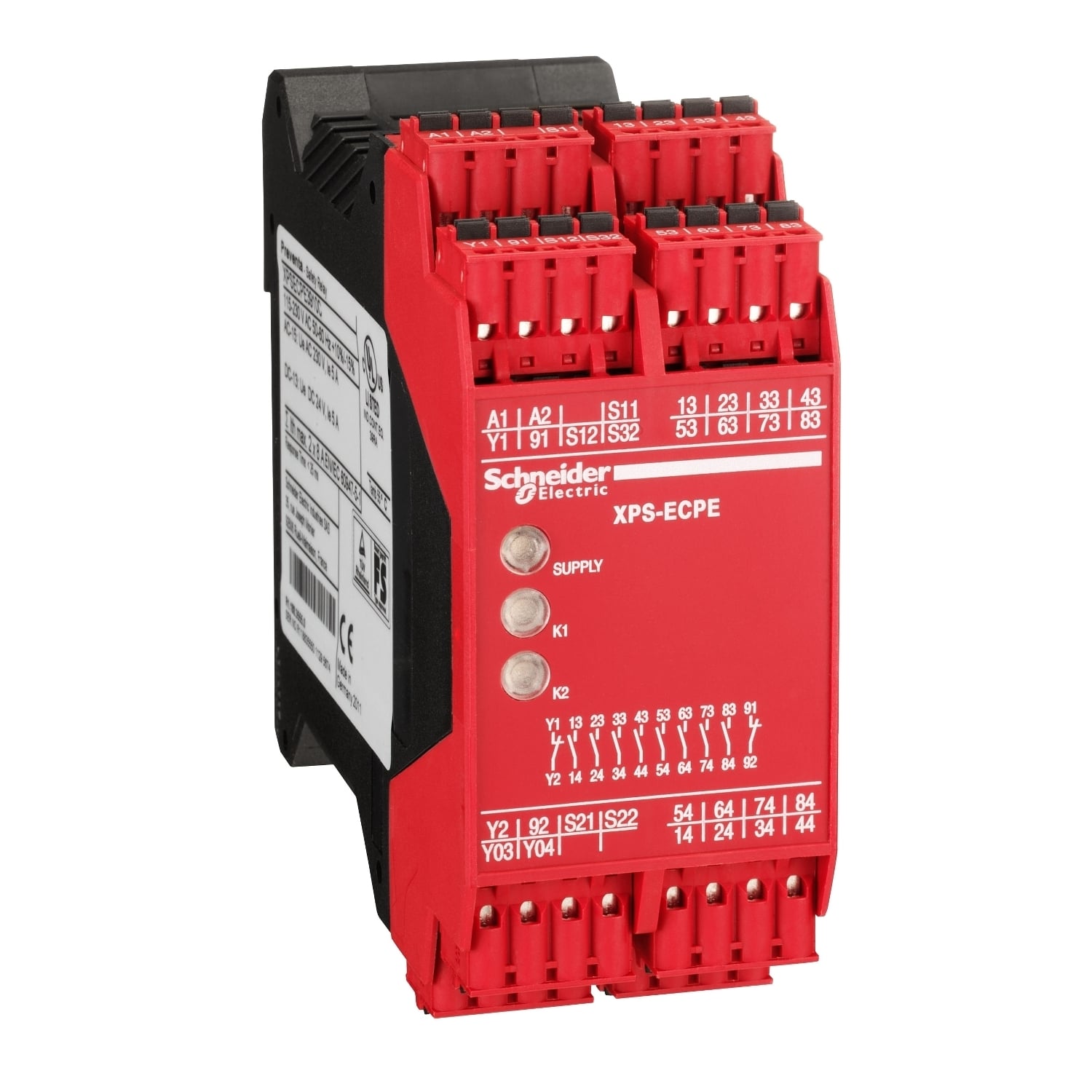

XPSECPE5131P Preventa Electronic Internal Safety Relay, 8NO 8 Form A Contact, 24 V AC/DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- XPSECPE5131P
- Item #:
- 37031
Discontinued
XPSECPE5131P Preventa Electronic Internal Safety Relay, 8NO 8 Form A Contact, 24 V AC/DC V Coil
- MFR #:
- XPSECPE5131P
- Item #:
- 37031
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XPSECPE safety module allows to expand the number of safety contacts available on XPS base modules. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.
Manuals and Documentation
| Catalog Number | XPSECPE5131P |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Increasing the number of safety contacts;Increasing the number of safety contacts |
| Connection | Captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² solid without cable end;captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² flexible without cable end;captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel;captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel;captive screw clamp terminals, 2 x 0.2...2 x 1 mm² solid without cable end;captive screw clamp terminals, 2 x 0.2...2 x 1 mm² flexible without cable end;captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel;captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Mounting | Din Rail |
| Output | 2 NC + 1 solid state output;Relay, 8 NO, volt-free |
| Power Supply | 24 V AC - 15...10 %;24 V DC - 15...10 % |
| Standard | MTTFd > 100 years EN/ISO 13849-1;DC = 0...99 % EN/ISO 13849-1;PFHd = 2.47E-8 1/h EN/IEC 62061;Can reach PL e/category 4 can reach the maximum safety level of module base EN/ISO 13849-1;can reach SILCL 3 can reach the maximum safety level of module base EN/IEC 62061 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61756962&lang=en-us |
| GTIN | 03389118376052 |
| Item Type | Preventa safety module |
