BLACKBURN MECHANICAL

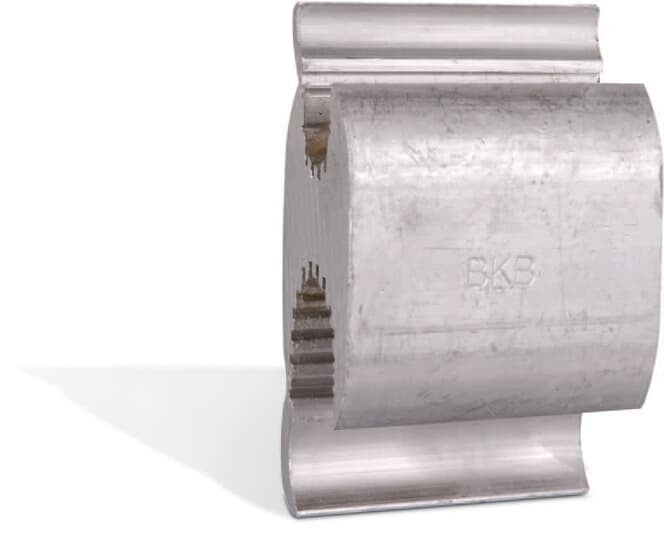

WR875 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 4/0 AWG to 477 kcmil ACSR, 250 to 556 kcmil Stranded Main/Run, 336 18/1 to 266 kcmil ACSR, 350 to 250 kcmil Stranded, 336 to 397 kcmil Solid Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR875
UPC:
783786100248
Item #:
369188

Availability

Location Available Qty
Available Available to Order
$21.12 each
Manuals and Documentation
Catalog Number WR875
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786100248
GTIN 00783786100248
Item Type H-Type Compression Tap Connector
Size Length 3 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 477 (18/1) to 4/0 ACSR or 556 to 250 STR kcmil , Tap: 336 (18/1) to 266 ACSR or 350 to 250 STR or 336 to 397 SOL kcmil
Cross Reference Products ABBInstall WR779|ABBInstall WR875|ABBInstall WR879|ABBInstall WR885|Burndy YC33R33|Burndy YFN615|Burndy YHN600|Kearney 483|Kearney 488|Kearney 494-82
