BLACKBURN MECHANICAL

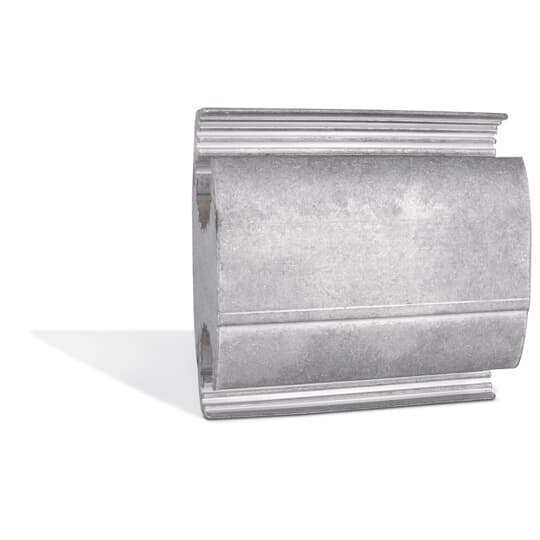

WR929 Blackburn Type H Wide Range Compression Tap Connector, H Shape, 300 to 556 kcmil ACSR, 336 to 600 kcmil Stranded Main/Run, 556 18/1 to 300 kcmil ACSR, 600 to 336 kcmil Stranded Tap, Aluminum

MFR:
ABB - Installation Products
MFR #:
WR929
UPC:
783786103652
Item #:
36846

Availability

Location Available Qty
Available Available to Order
$139.27 each
Manuals and Documentation
Catalog Number WR929
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard RUS Accepted. Complies with ANSI C119.4 Specifications
UPC 783786103652
GTIN 00783786103652
Item Type H-Type Compression Tap Connector
Size Length 4-3/4 inch
Environmental Conditions All Seasons / Conditions
Temperature Rating up to 90 C
Wire Size Main: 556 (18/1) to 300 ACSR or 600 to 336 STR kcmil , Tap: 556 (18/1) to 300 ACSR or 600 to 336 STR kcmil
