Telemecanique

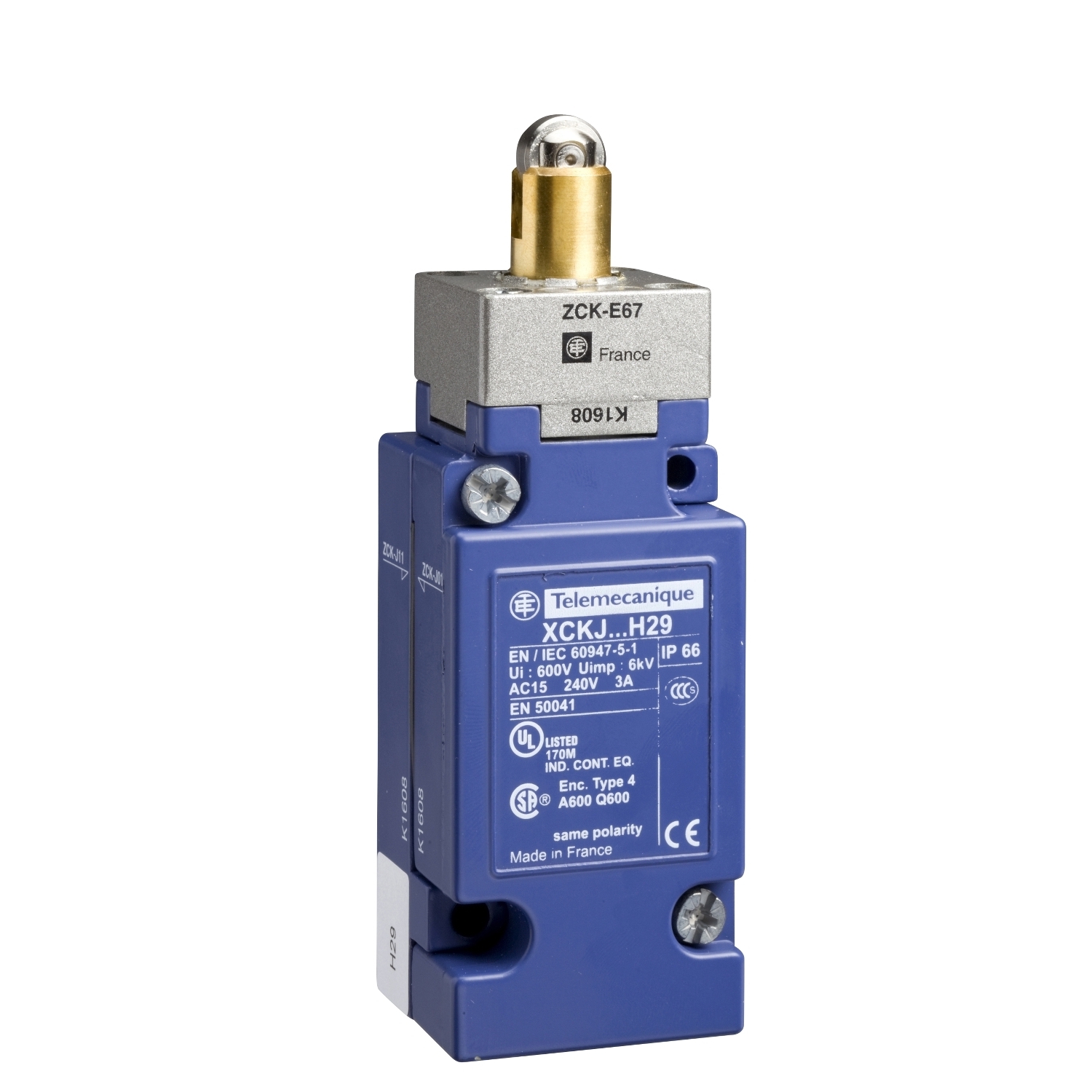

XCKJ1167H7 OsiSense XC Standard Format Plug-In Limit Switch, 600 V AC, 10 A, Spring Return Roller Plunger Actuator, 1C/O Contact, 1 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKJ1167H7
UPC:
785901921950
Item #:
364797

Availability

Location Available Qty
Available Available to Order
$340.62 each

limit switch XCKJ - steel roller plunger reinforced - 1C/O - snap - 1/2NPT

Manuals and Documentation
Catalog Number XCKJ1167H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller plunger metal reinforced
Amperage Rating 10
Application INDUSTRIAL
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 1 C/O
Enclosure NEMA 1/2/4/12 IP 66
Mounting By The Body
Number of Poles 1
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features METAL,PLUG-IN BODY
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,IEC 60204-1-CSA C22.2 NO 14-UL 508-EN 60204-1-EN 60947-5-1-IEC 60947-5-1-CENELEC EN 50041,IK07 EN 50102,IP66 IEC 60529,UL-CCC-CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856218&lang=en-us
UPC 785901921950
GTIN 03389118120761
Item Type Limit switch
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
