Appleton

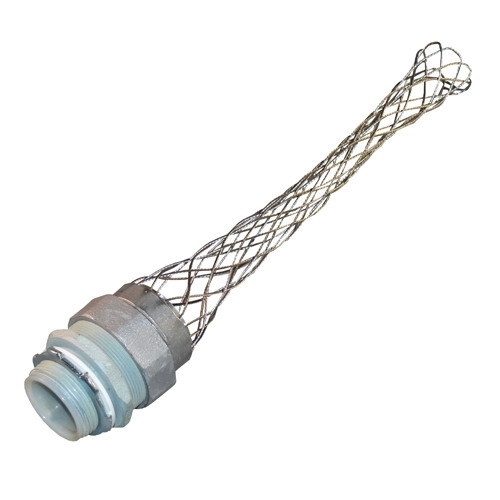

Straight Liquidtight Connector with Wire Mesh Strain Relief, 1-1/4 inch, Malleable Iron, Zinc Electroplated

MFR:
Appleton Electric
MFR #:
STB-125SR
UPC:
781381513692
Item #:
36440

Availability

Location Available Qty
Available Available to Order
$272.76 each

Appleton STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief, Size: 1-1/4 IN, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Insulation: Insulated Throat, Dimensions: 2 IN Length X 2.31 IN Height, Thread Length: 0.63 IN, Outside Diameter: 1.63 - 1.66 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit To Threaded Hubs

Manuals and Documentation
Catalog Number STB-125SR
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit To Threaded Hubs
Finish Chromate, Epoxy Powder Coat/Zinc Electroplated
Insulation Insulated Throat
Material Malleable Iron
Special Features Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Stainless steel wire mesh prevents pull-out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection; Insulated throat protects against wire damage; Suitable for wet locations; STB Series has full, machined tapered threads (NPT); For use with liquidtight flexible metal conduit subjected to flexure, vibration, motion or strain
Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC 781381513692
GTIN 00781381513692
Item Type STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief
Size 1-1/4
