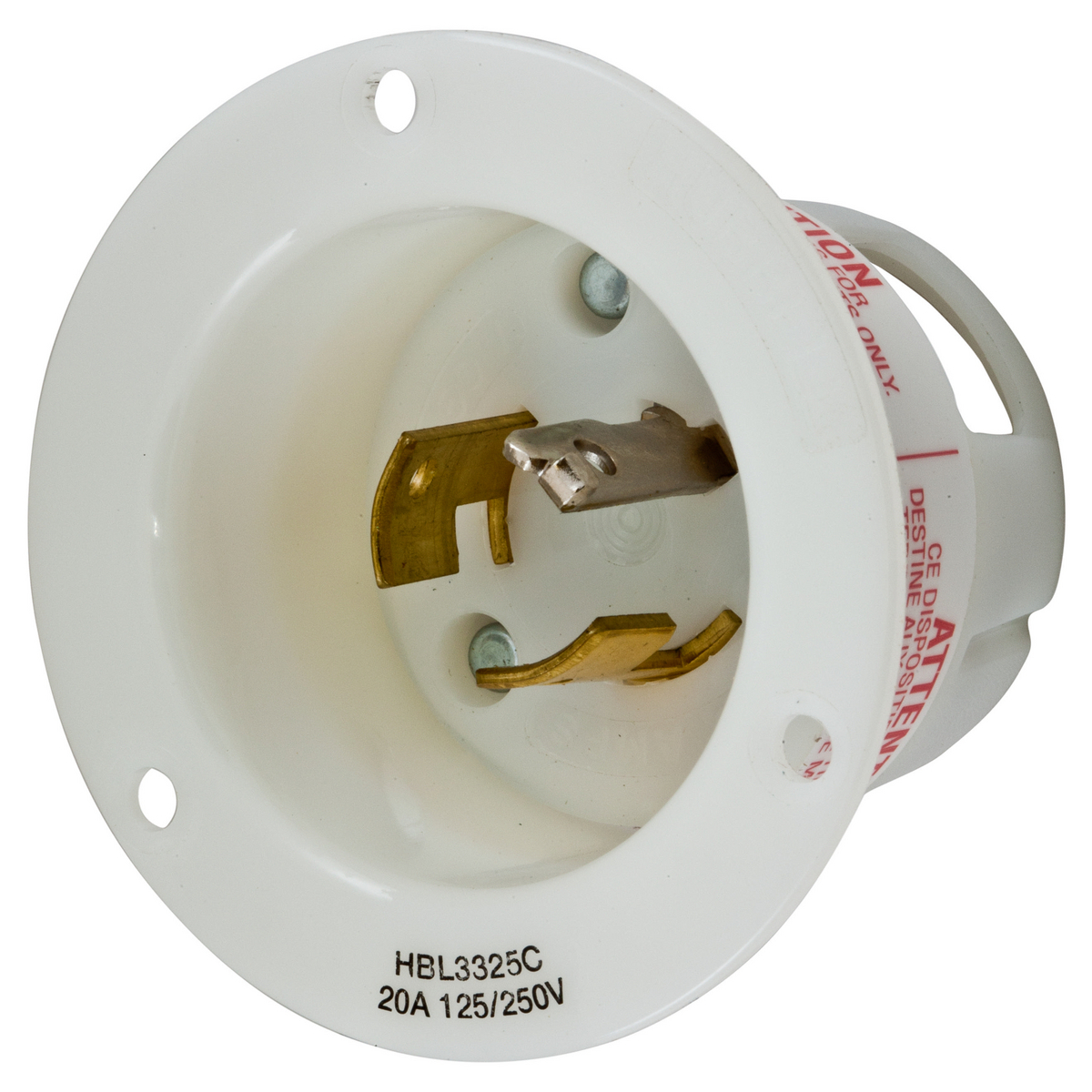

HBL3325C 1-Phase Standard Screw Mount Flanged Inlet, 125/250 V AC, 20 A, 3 Poles, 3 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL3325C
- UPC:
- 783585039794
- Item #:
- 36223
HBL3325C 1-Phase Standard Screw Mount Flanged Inlet, 125/250 V AC, 20 A, 3 Poles, 3 Wires, White
- MFR #:
- HBL3325C
- UPC:
- 783585039794
- Item #:
- 36223
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$65.11
each
Manuals and Documentation
| Catalog Number | HBL3325C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Extra Heavy Duty Industrial |
| Color | White |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585039794 |
| GTIN | 00783585039794 |
| Item Type | Flanged Inlet |
| Size | 2.88 in x 2.88 in x 1.93 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125/250 |
| Wattage | 5,000 W |
| Wire Size | #16 AWG to #10 AWG |
