BURNDY

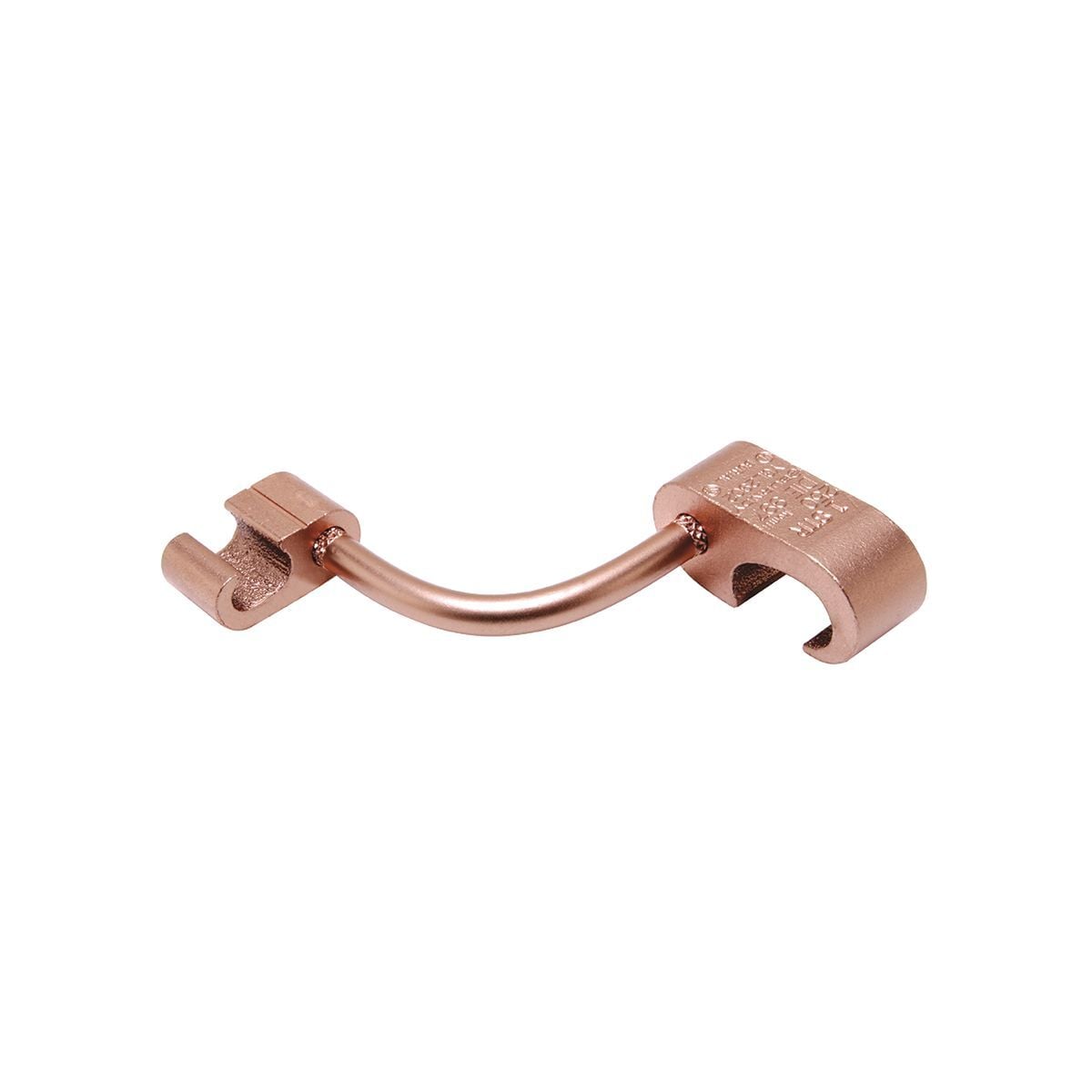

HYGRID YGL34C2 Type YGL-C Cross Connector, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 2 AWG, 4 AWG, 6 AWG Conductor, 5/8 to 3/4 in Rod, Copper, Unplated

MFR:
Burndy, a Hubbell affiliate
MFR #:
YGL34C2
UPC:
781810220030
Item #:
360550

Availability

Location Available Qty
Available Available to Order
$308.45 each
Manuals and Documentation
Catalog Number YGL34C2
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Direct Burial In Earth And Concrete
Material Copper
Special Features Features: An Irreversable Compression Ground Grid Cross Connector Which Allows Adjustment Of The Compression Elements Prior To Installation, Only Six Connectors And Four Dies Are Required To Install All Combinations From #6 AWG Solid Through 500 KCMIL, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Rebar Size: #5 - #6, Tools, Die Set Catalog Number, And (number Of Crimps): Element A: Y750/Y35/Y39 HYPRESS Tool, PU998 Die, (1), PAT750-18V Tool, PU998 Die, (1), Y45 Tool, S998 Or PU998 Die, (1), Y46 Tool, P998 Or PU998 Die, (1), Element B: Y750/Y35/Y39 Tool, U-0 Die, (1), PAT750-18V Tool, U-0 Die, (1), Y45 Tool, U-0 Die, (1), Y46 Tool, U-0 Die, (1), Ground Rod Size: 5/8 - 3/4 IN, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Die Index: 998 Element A, O Element B, Conductor Size (tap Range): 6 - 2 AWG
Standard UL467;IEEE 837;IEEE 837 2014 Qualified
UPC 781810220030
GTIN 00781810220030
Item Type Taps
