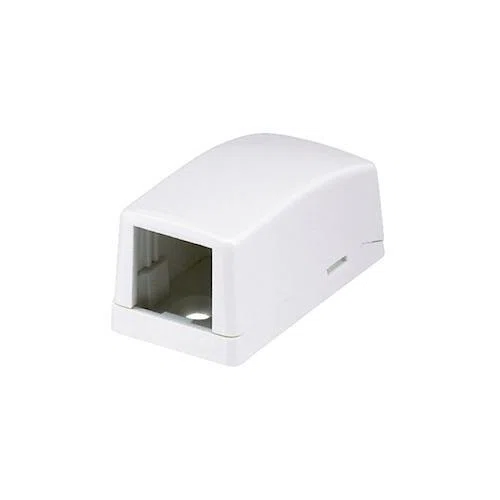

CBX1BL-A Mini-Com PanNet 1-Port Low Profile Surface Mount Box, Mini-Com, Surface Mount, ABS
- MFR:
- Panduit
- MFR #:
- CBX1BL-A
- UPC:
- 074983753734
- Item #:
- 360412
CBX1BL-A Mini-Com PanNet 1-Port Low Profile Surface Mount Box, Mini-Com, Surface Mount, ABS
- MFR #:
- CBX1BL-A
- UPC:
- 074983753734
- Item #:
- 360412
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$5.84
each
Surface mount boxes shall have a low profile design and be available in a variety of port densities. Boxes shall accept most Mini-Com® modules for fiber, copper and audio/video applications. The boxes shall mount with screws, adhesive or optional magnets. The box covers include breakouts for use with surface raceway. Cable tie slots shall be included to provide strain relief on incoming cables. Select boxes shall include a cover with a quick release feature.
Manuals and Documentation
Features
- Quick release cover
- Accepts most Mini-Com® modules, for easy moves, adds and changes
- Low profile design
- Compatible with specific raceway, conceals cable entering the box
- Boxes with label pocket provide a screw that secures the cover to the base
- Select boxes include a label pocket to meet TIA/EIA-606B labeling standards
- Surface mount boxes include breakouts compatible with Panduit® Raceway system to conceal and allow cable to run into the box providing a point of connection for voice, video and data applications
- Accept Mini-Com® modules for STP and UTP, fiber optic and audio/video, which snap-in and out for easy moves, adds and changes
- Cable entry from side and rear knockouts and from opening in center of base
| Manufacturer Part Number | CBX1BL-A |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983753734 |
| EAN | 0074983753734 |
| Country Of Origin | CR |
| Color | Black |
| Height | 0.92 in |
| Length | 1.89 in |
| Material | ABS |
| Mounting Type | Surface |
| Suitable For Use With | LDP3/LD3 Series Breakout A Raceway, Conceals Cable Entering the Box |
| Type | 1-Port Low Profile |
| Width | 1.03 in |
| Alternative Part Number | 7612143 | 8863803 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | UL 1863; UL 2043; RoHS Compliant | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 1863 | UL 2043 | CSA Certified | TIA/EIA-606-A |
| Application | For providing a point of connection for voice, air handling spaces, video and data applications |
| Module Position | 1 |
| Module Type | Mini-Com® |
