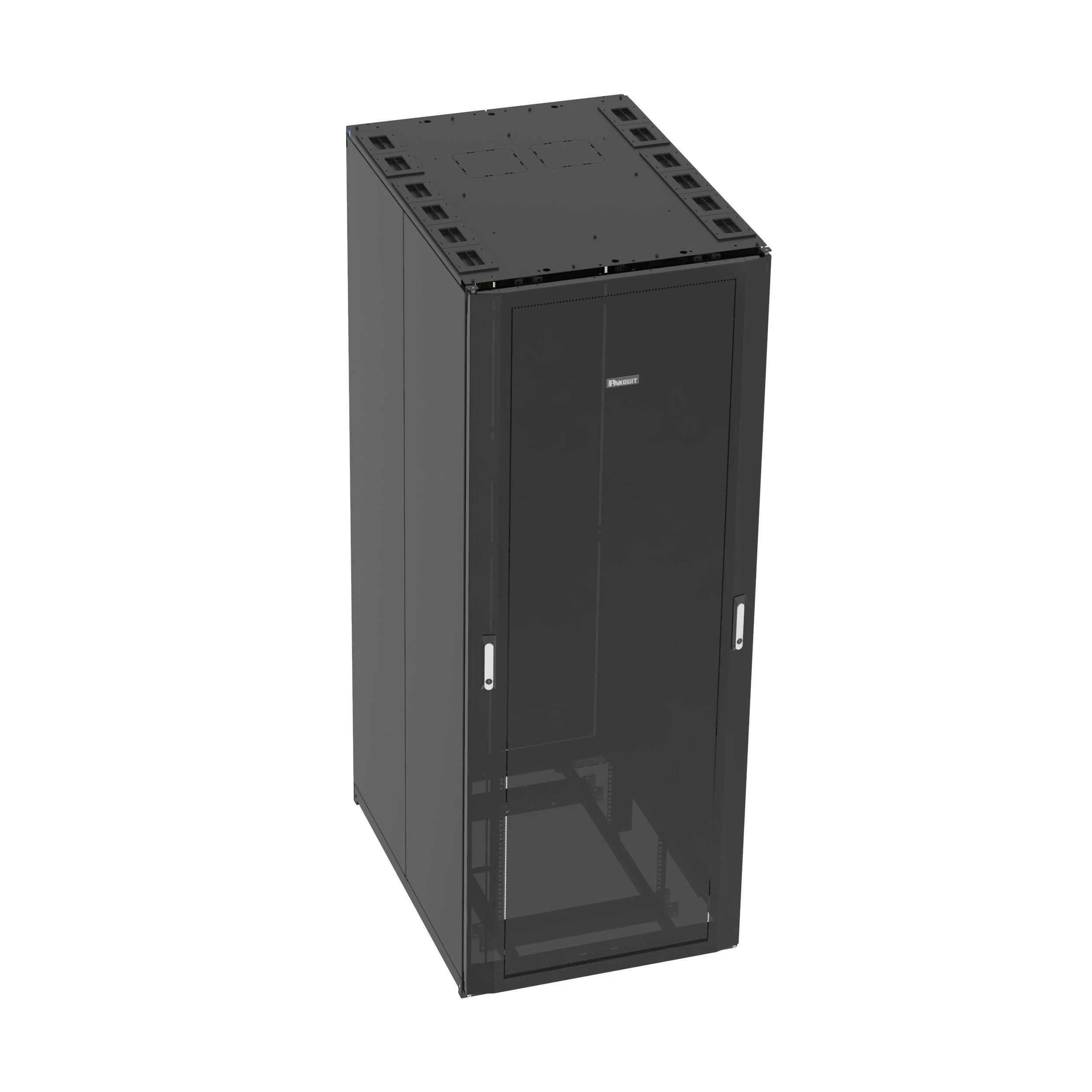

N8512B Net-Access N Series Type N Standard Configured Enclosure Cabinet With (2) Standard Side Panels, 31-1/2 in W x 42.12 in D, Steel
- MFR:
- Panduit
- MFR #:
- N8512B
- UPC:
- 074983670307
- Item #:
- 360260
N8512B Net-Access N Series Type N Standard Configured Enclosure Cabinet With (2) Standard Side Panels, 31-1/2 in W x 42.12 in D, Steel
- MFR #:
- N8512B
- UPC:
- 074983670307
- Item #:
- 360260
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Net-Access™ Type-N cabinets are the first choice for data center managers and systems integrators specifying high density network, storage and compute applications that require optimal thermal management and the capacity to manage high cable densities. Integral cabinet air seal features and integration with passive hot and cold air containment components drive efficient utilization of cooling capacity and reduce cooling energy consumption. The Net-Access™ inset frame design efficiently manages large quantities of cables and provides space for unmatched access reducing operational costs. This industry leading design also maximizes airflow and provides easy access to equipment for ongoing operational efficiencies, providing exceptional value in a 31-1/2 in W enclosure.
Manuals and Documentation
Features
- Welded and assembled steel frame construction
- The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage
- Cabinets shall include front dual hinge doors or single hinge doors with 69% open perforation and rear split doors
- Cabinets shall include front and rear cable management fingers, the entire cabinet shall be fully electrically bonded, including equipment rails, door and side panels
- Integral cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- Creates a 8 in unobstructed channel between cabinets promoting best in class cable management, provides flexibility for switch specific thermal solutions
- Innovative dual hinge door with slam latch handles provides superior access to cabinets and cabling, easing cabinet to cabinet cabling and promoting faster moves, adds and changes
- Cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Cable management included helps speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Switch side clearance requirements for increased network reliability and proper thermal management
- Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
- Provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
- With (2) solid side panels, top panel, split perforated rear door, dual hinge front door
- Inset frame for improved cable management
- Single point bonding at top and bottom of cabinet
- Welded and assembled steel frame construction
- Large cable entry/cable access
- Cable entry holes are equipped with plastic sealing plugs
- Front dual or single hinge doors with 69% open perforation
| Manufacturer Part Number | N8512B |
| Stripped Manufacturer Part Number | N8512B |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983670307 |
| EAN | 0074983670307 |
| Capacity | 3000 lb Static/2500 lb Rolling |
| Color | Black |
| Depth | 42.12 in |
| Finish | Epoxy Polyester Powder Coated |
| Material | Steel |
| Mounting Type | E-Rail/Floor |
| Series | N Series |
| Temperature Rating | 50 deg C |
| Type | Type N Standard Configured |
| Width | 31-1/2 in |
| Alternative Part Number | 11796009 | 11796353 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2416 | EIA-310-E | TIA/EIA-942 |
| Application | For network applications that requires optimal thermal management and the capacity to manage high cable densities of switch applications |
| Includes | (2) Set SN25F 6 in Cable Management Fingers |
| Lock | Keyed Swing Handle |
| Rack Unit | 45RU |
