SCHNEIDER ELECTRIC

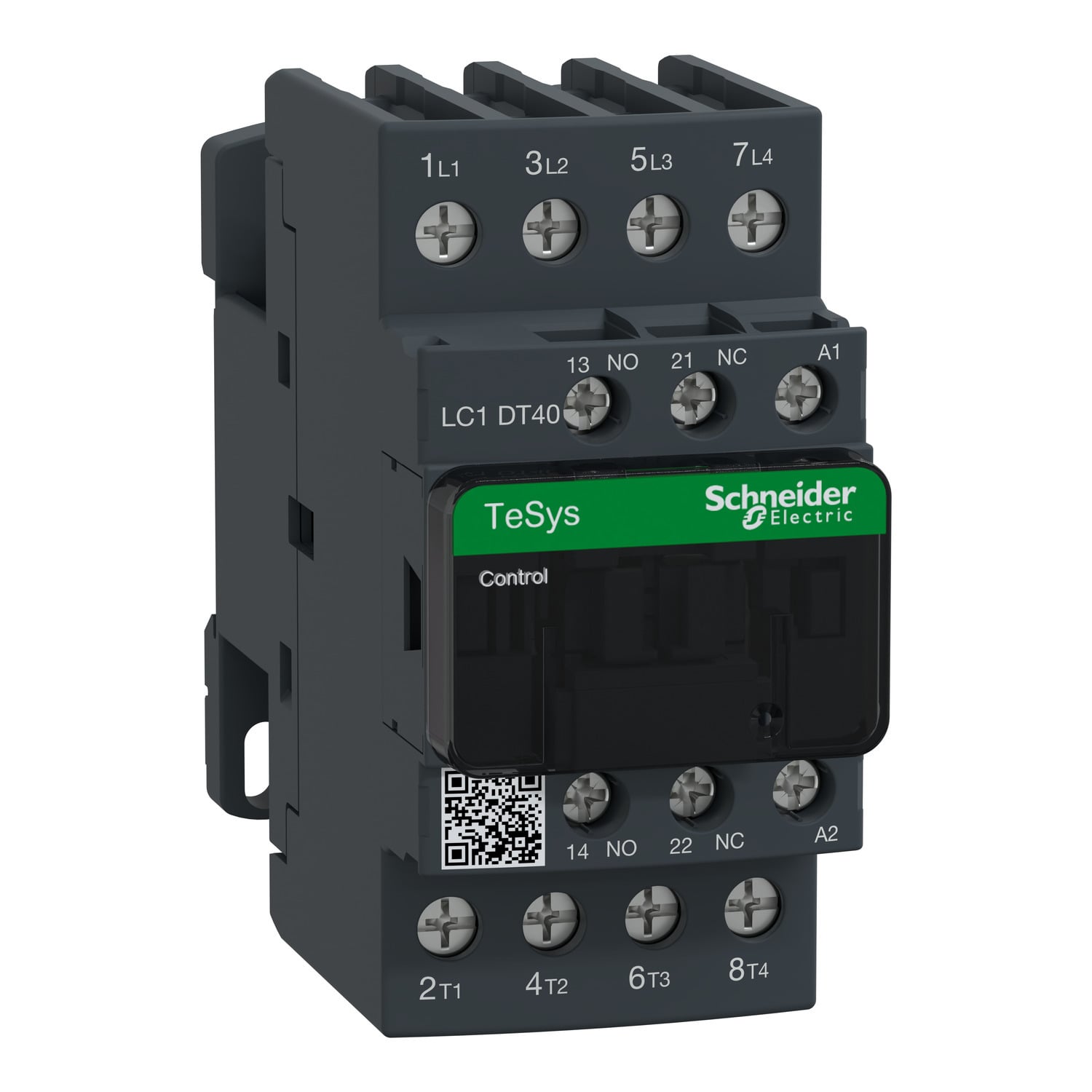

LC1DT40F7 TeSys D LC1D D-Line IEC Contactor With Protective Cover, 110 VAC V Coil, 40 A, 4NO Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1DT40F7
Item #:
358895

Availability

Location Available Qty
Available Available to Order
$372.33 each

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 40A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals and Documentation
Catalog Number LC1DT40F7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Resistive load
Coil Voltage 110 V AC 50/60 Hz
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cab
Contact Configuration 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620812&lang=en-us
GTIN 03389110577693
Item Type Contactor
Cross Reference Products Rockwell 100C16D400|Rockwell 100C16KD400|Rockwell 100C23D400|Schneider LC1D25004F5|Schneider LC1D25004F6|Schneider LC1D25004F7|Schneider LC1DT40F7|Telemecan LC1DT40F7
