Top Seller

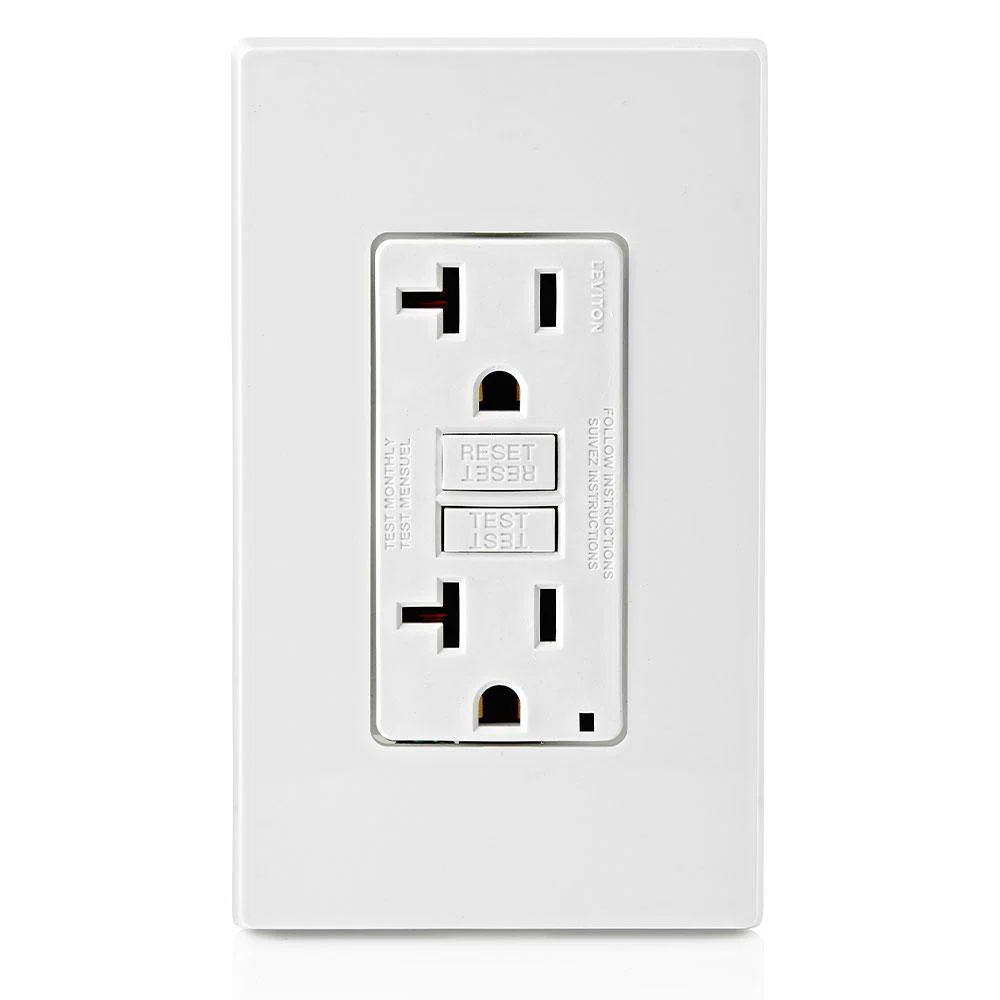

GFNT2-W SmartlockPro Slim Feed Through Monochromatic Non-Tamper Resistant Self-Test Standard Duplex GFCI Receptacle With LED Indicator, 125 V AC, 20 A, 2 Poles, 3 Wires, White
- MFR:
- Leviton
- MFR #:
- GFNT2-W
- UPC:
- 078477712764
- Item #:
- 356821
Top Seller
GFNT2-W SmartlockPro Slim Feed Through Monochromatic Non-Tamper Resistant Self-Test Standard Duplex GFCI Receptacle With LED Indicator, 125 V AC, 20 A, 2 Poles, 3 Wires, White
- MFR #:
- GFNT2-W
- UPC:
- 078477712764
- Item #:
- 356821
Availability
| Location | Available Qty |
|---|---|
| Available | 954 ea |
$40.45
each
Peace of mind, all the time. The SmartlockPro® self test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self test) our complete line of self test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile ON the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® self test GFCI is the smart choice in ground fault circuit interrupter protection.
Manuals and Documentation
Features
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI circuit within 3 sec
- Auto monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora® devices and wallplates
| Manufacturer Part Number | GFNT2-W |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477712764 |
| Country Of Origin | CN |
| Amperage Rating | 20 A |
| Color | White |
| Dimensions | 4.21 in H x 1.69 in W x 1.4 in D |
| Horsepower | 1 hp |
| Material | Polycarbonate/Thermoplastic |
| Temperature Rating | -35 to 66 deg C |
| Type | Feed Through Monochromatic Non-Tamper Resistant Self-Test Standard Duplex |
| Voltage Rating | 125 V AC |
| Alternative Part Number | 13224145 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 2 Years Limited |
| Standards Approvals | CSA Certified | UL Listed |
| Application | Residential, Educational Facilities, Airports, Restaurants, Lodging, Retail Malls, Commercial Offices and Public Areas Applications |
| Includes | Wallplate/Faceplate, Self-Grounding Clip |
| Grade | Residential |
| Nema Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Terminal Type | Back/Side Wire |
