Square D

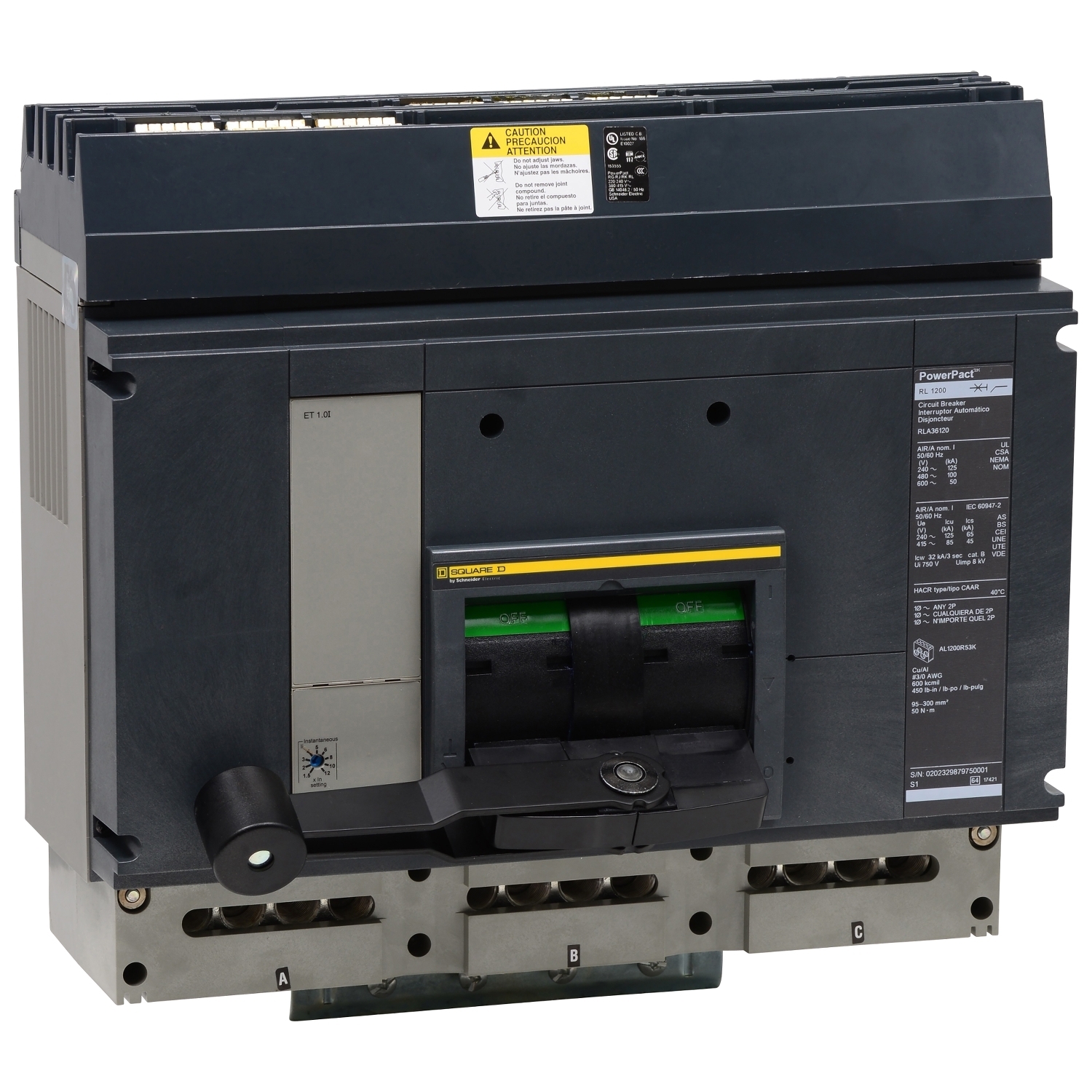

RJA36120CU33A I-Line PowerPact 100% Rated Molded Case Circuit Breaker, 600 V AC, 1200 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600 V AC Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
RJA36120CU33A
UPC:
785901839163
Item #:
354766

Availability

Location Available Qty
Available Available to Order
$42,294.58 each

PowerPacTR-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number RJA36120CU33A
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection I-Line connection, line;lugs, load; 4 x AWG 3/0…600 kcmil aluminium/copper; 4 x AWG 3/0...500 kcmil copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436951&lang=en-us
UPC 785901839163
GTIN 00785901839163
Depth 13.78 IN
