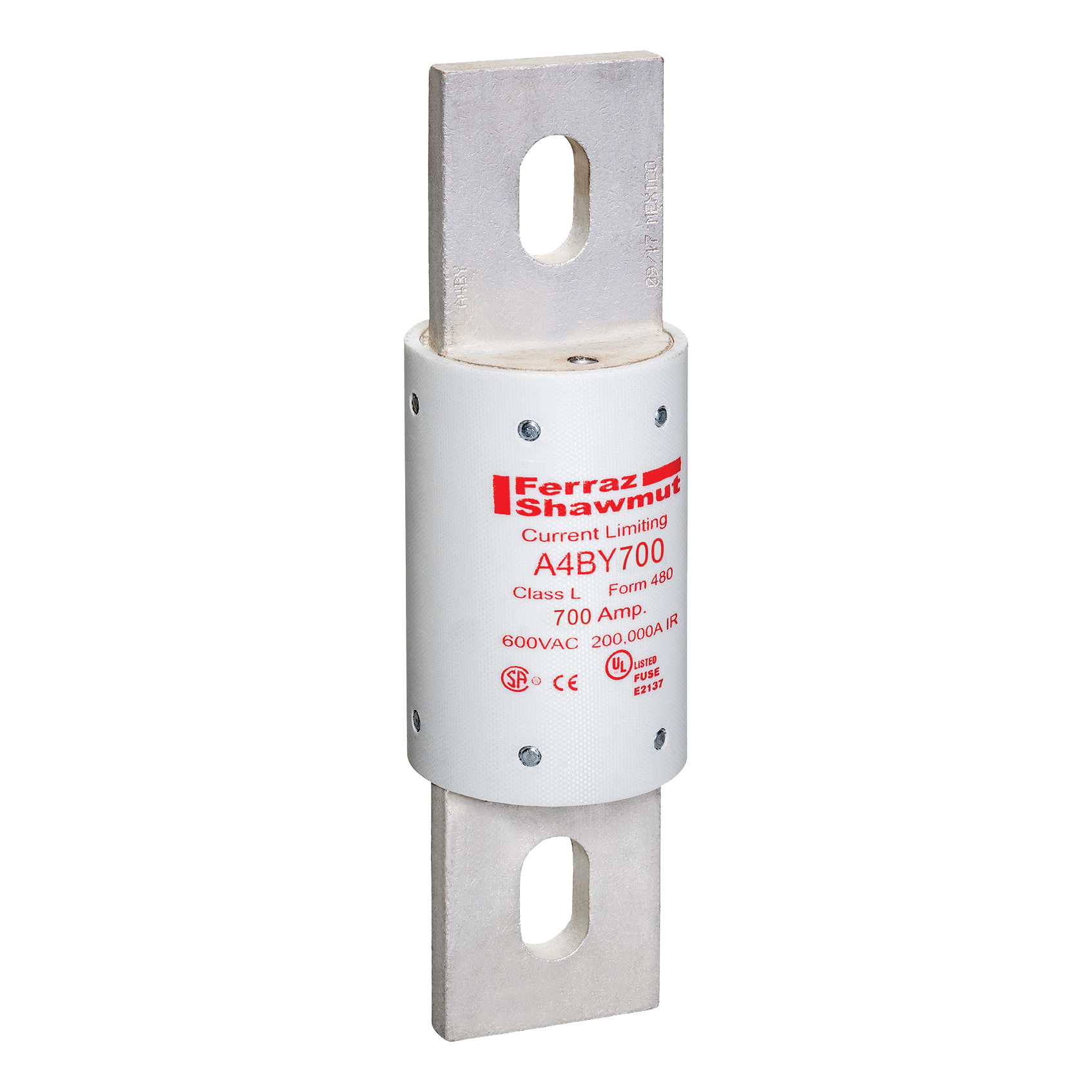

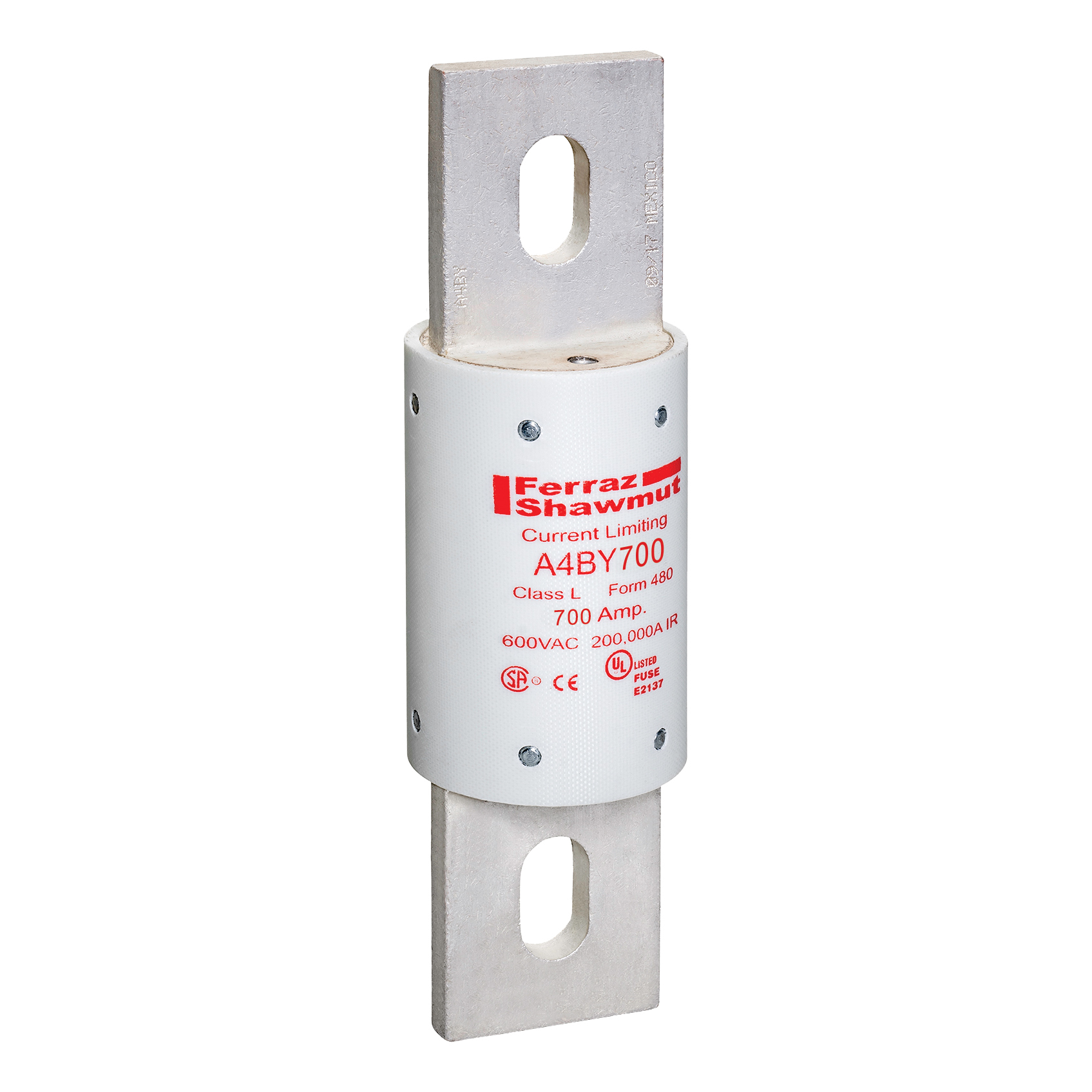

A4BY700 Amp-Trap Current Limiting Low Voltage Time Delay Fuse, 700 A, 600 V AC/300 V DC, 200/100 kA Interrupt, L Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A4BY700
- UPC:
- 782001939090
- Item #:
- 354761
A4BY700 Amp-Trap Current Limiting Low Voltage Time Delay Fuse, 700 A, 600 V AC/300 V DC, 200/100 kA Interrupt, L Class, Cylindrical Body
- MFR #:
- A4BY700
- UPC:
- 782001939090
- Item #:
- 354761
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,120.08
each
Fuse A4BY - Class L - Time-Delay 600VAC 300VDC 700A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A4BY700 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 700 |
| Application | Mains Feeders Circuit Breakers Load centers Panelboards Switchboards Metering Centers |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Bolt |
| Special Features | Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Glass melamine body and plated terminals provide superior reliability in harsh environments |
| Standard | Mersen Self-Certification, UL Listed to Standard 248-10, File E2137 CSA Certified to Standard C22.2, No. 248.10 IEC 269-2-1 DC Tested to UL 248 limits (Mersen Self-Certified) |
| UPC | 782001939090 |
| GTIN | 00782001939090 |
| Item Type | Class L |
| Size | 8.63 x 2 |
| Voltage Rating | 600 |
