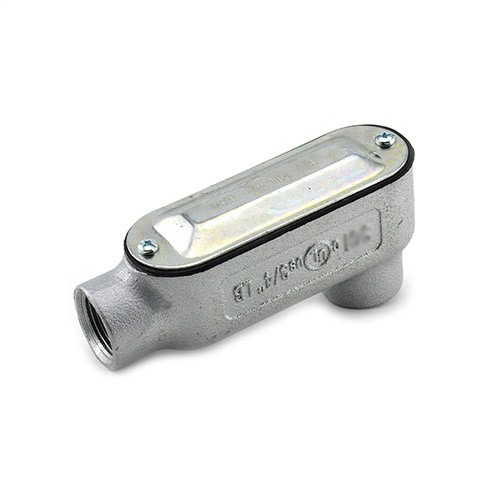

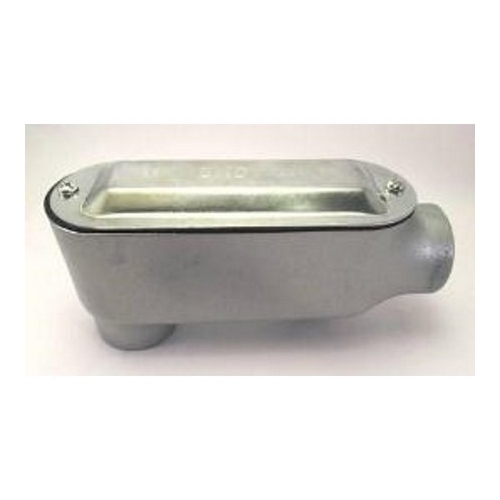

Rigid and IMC Conduit Body, Type LB, Malleable Iron, Cover and Gasket, Size 3/4 Inch
- MFR:
- NSi Industries
- MFR #:
- LB-62CG
- UPC:
- 781747061720
- Item #:
- 354325
Rigid and IMC Conduit Body, Type LB, Malleable Iron, Cover and Gasket, Size 3/4 Inch
- MFR #:
- LB-62CG
- UPC:
- 781747061720
- Item #:
- 354325
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$51.7854
each
Rigid and IMC Conduit Body, Type LB, Malleable Iron, Cover and Gasket, Size 3/4 Inch
Manuals and Documentation
| Catalog Number | LB-62CG |
| Manufacturer | NSi Industries |
| Brand | Bridgeport |
| Country of Origin | China |
| Made in USA | No |
| Application | For use with 3/4" rigid metallic raceways. Allows access to conductors for pulling and splicing. Suitable for use in Wet Locations. Nema 4 rated. Includes stamped steel cover and neoprene gasket. 7.5 cubic inch volume. Max conductor fill is 3-#6AWG |
| Conduit Body Type | LB |
| Finish | Aluminum |
| Hub Size | 0.75 |
| Material | Malleable Iron Conduit Body, Zinc Coated Steel Cover, Neoprene Gasket |
| NEMA Rating | FB-1 |
| Standard | UL |
| RoHS URL | https://ideadigitalasset.com/DAMRoot/Original/11932/10992_RoHS3_Compliance_Letter-Zinc_Malleable_Iron_Steel&Plastics-REV_R_5-11-21 (1).pdf |
| UPC | 781747061720 |
| GTIN | 00781747061720 |
| Item Type | Type LB with Cover & Gasket |
| Size | 3/4 in |
| Trade Size | 3/4 IN |
