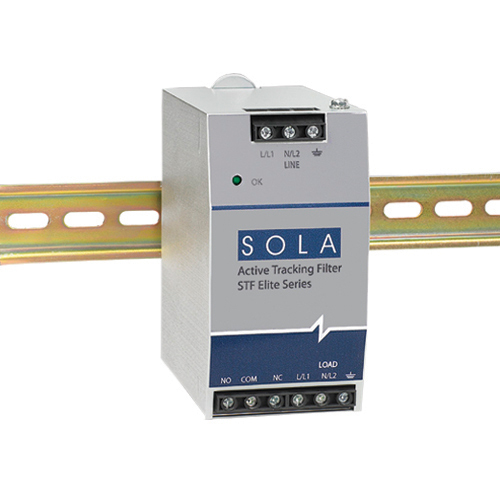

STFE050-10N STFE Elite Active Tracking Filter, 5 A at 120 V AC, 100 kHz to 50 MHz Bandwidth, 2 Wires, Metal
- MFR:
- SolaHD
- MFR #:
- STFE050-10N
- UPC:
- 783472029112
- Item #:
- 354237
STFE050-10N STFE Elite Active Tracking Filter, 5 A at 120 V AC, 100 kHz to 50 MHz Bandwidth, 2 Wires, Metal
- MFR #:
- STFE050-10N
- UPC:
- 783472029112
- Item #:
- 354237
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$875.89
each
Manuals and Documentation
| Catalog Number | STFE050-10N |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control Panels, Factory Automation Installations, Point of Use Industrial Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools Equipment |
| Connector | Screw Terminal Connections, 10-16 AWG, IP20 |
| Enclosure | Metal |
| Frequency Rating | 47-63 |
| Input | 240, Single Phase |
| Mounting | Din Rail |
| Special Features | Series connected DIN Rail mounted filter, Durable metal mount clip, UL Listed surge current capacity -45,000 Amps, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 20 Amp, Operating temperature from -40 DEG C to +50 DEG C, Screw terminal connections, Reliable and convenient screw clamp connections accept 10-16 AWG wire and meet IP20 specifications for ingress protection, LED status indication, Form C contact for remote monitoring |
| Standard | cULus Recognized Component: UL 1449, 3rd Edition, Type 4 locations, UL 1283, CSA C22.2 No. 8; CE rated: EN 61643-11:2002, RoHS Compliant |
| UPC | 783472029112 |
| GTIN | 00783472029112 |
| Item Type | STFE Elite Series - Active Tracking Filters with Surge Protection |
| Length | 4.56 |
| Width | 2.56 |
| Height | 4.88 |
| Cross Reference Products | Eaton AGSHWCH120N05XS|Eaton APF120N05|EFIElectr 75LC1205C|EmersonPwr IE105|Rockwell 4983DC12005|Rockwell 4983PF12005|Schneider TVS120LC5|SolaHD STFE050-10N|SolaHD STFV050-10N |
