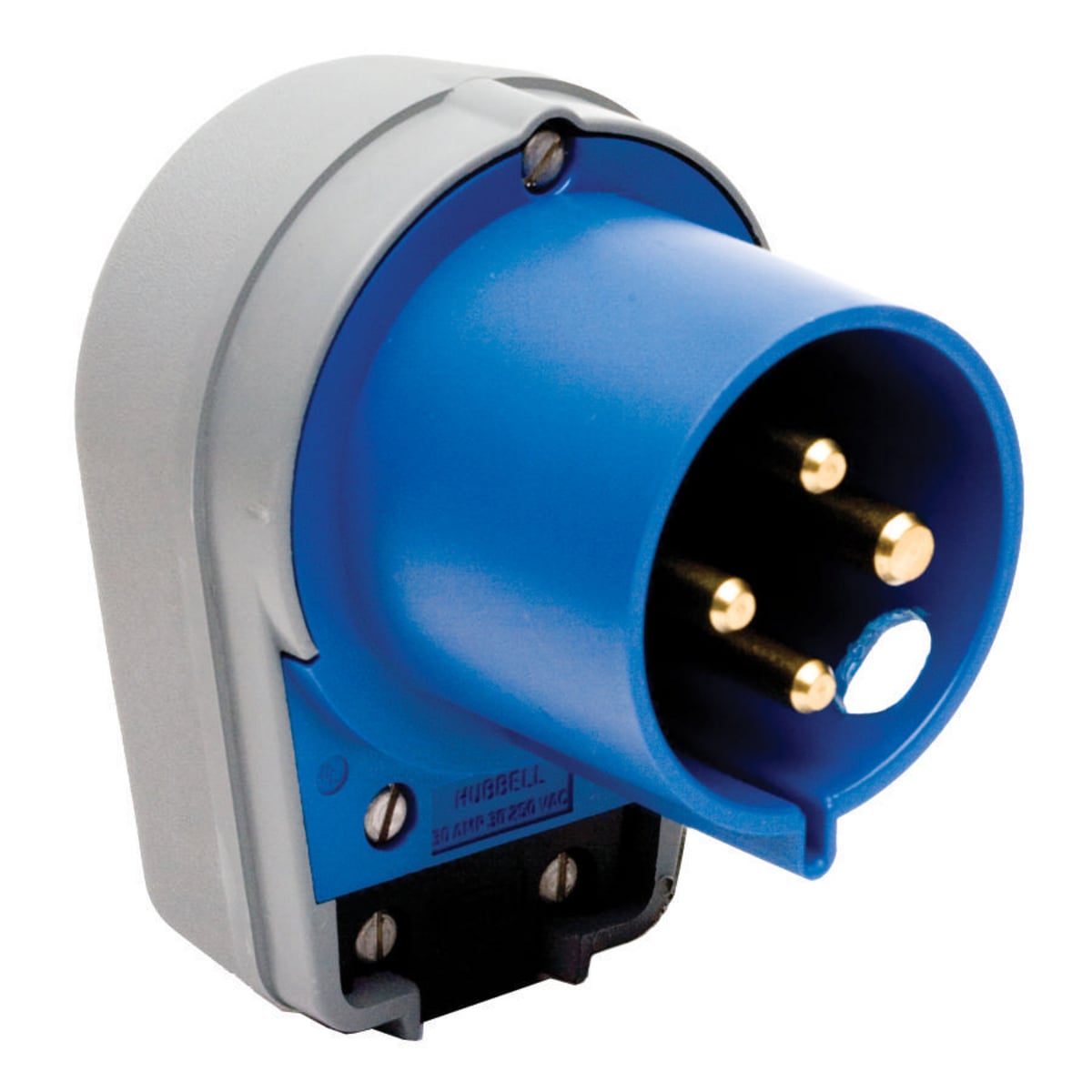

L430P9 3-Phase Heavy Duty Low Profile Male Standard Watertight Pin and Sleeve Angled Plug, 250 V AC, 30 A, 3 Poles, 4 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- L430P9
- UPC:
- 783585888026
- Item #:
- 35325
L430P9 3-Phase Heavy Duty Low Profile Male Standard Watertight Pin and Sleeve Angled Plug, 250 V AC, 30 A, 3 Poles, 4 Wires, Blue
- MFR #:
- L430P9
- UPC:
- 783585888026
- Item #:
- 35325
Availability
| Location | Available Qty |
|---|---|
| Available | 26 ea |
$317.32
each

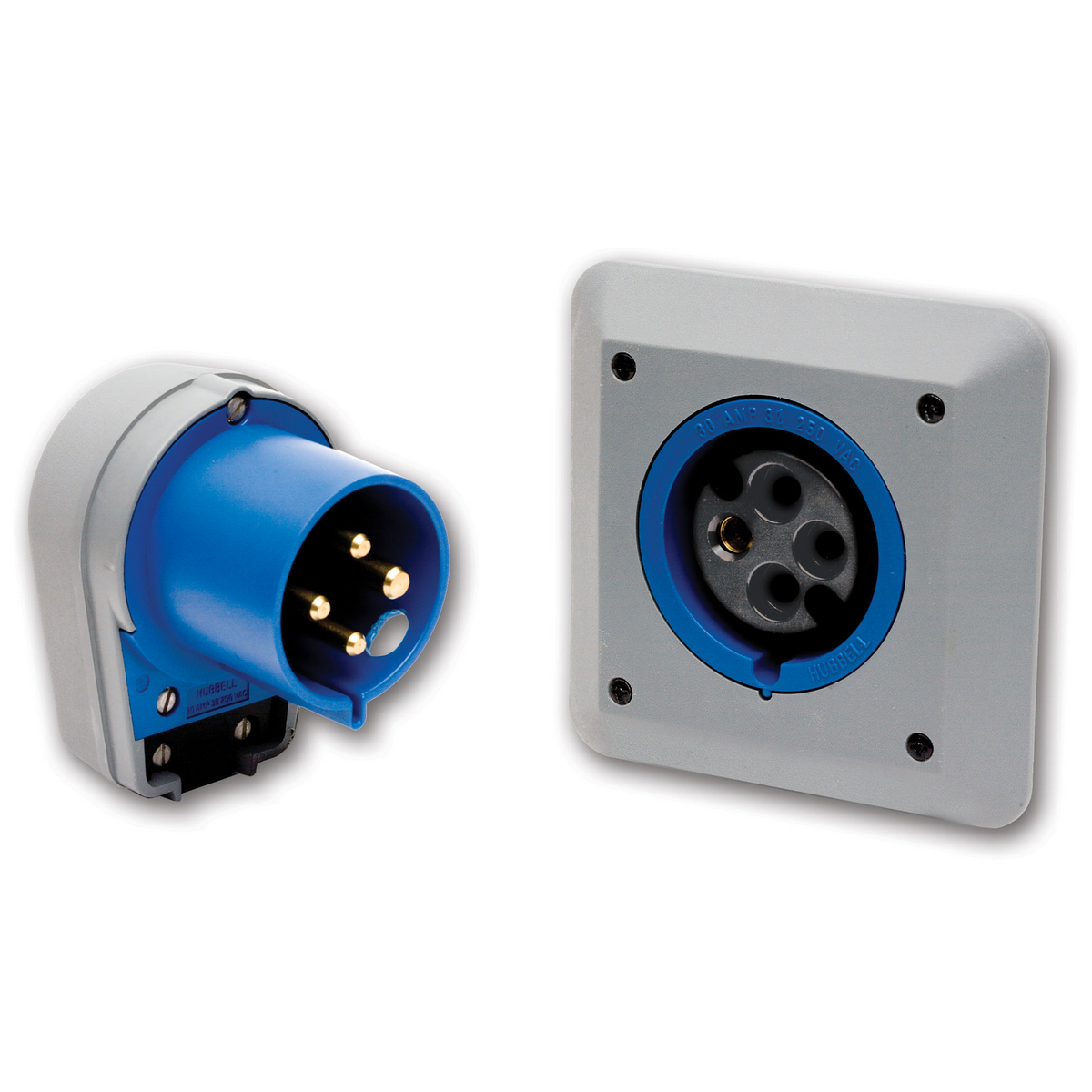

Hubbells Low Profile Pin and Sleeve devices were designed to save space without sacrificing pin and sleeve strength, safety and convenience. The small compact design of these plugs is ideal for indoor applications where space is at a premium. These devices are fully interchangeable with standard IEC 60309 pin and sleeve. They are a perfect fit for tight situations frequently found in hotels, restaurants, convention centers, warehouses, assembly benches and offices.
Manuals and Documentation
| Catalog Number | L430P9 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | High Ampacity Connections |
| Color | Blue |
| Connection | Pressure Terminal Screws |
| Material | Composite |
| Mounting | Cord |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Watertight |
| Standard | UL 498, IEC 309-1 and 309-2 |
| UPC | 783585888026 |
| GTIN | 00783585888026 |
| Item Type | IP22 Angled Plug |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3 Phase 250 |
| Wattage | 7,500 |
| Wire Size | #12 AWG to #10 AWG |
