Panduit

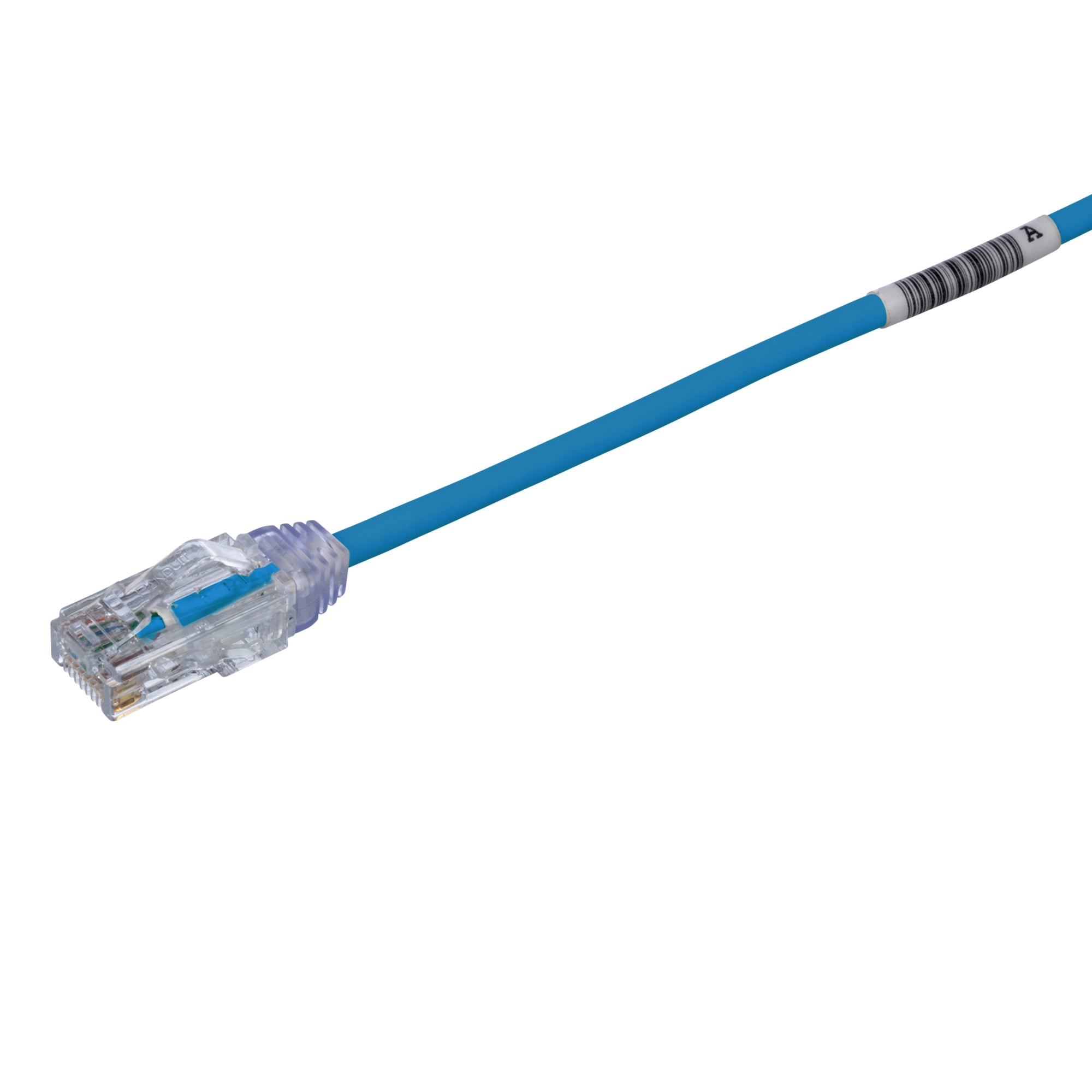

UTP28SP25BU TX6-28 U/UTP Small Diameter Patch Cord, Cat 6, 28 AWG Stranded Tin Plated Copper Conductor, RJ-45 Connector, 25 ft L Cord, Blue

MFR:
Panduit
MFR #:
UTP28SP25BU
UPC:
074983655359
Item #:
352942

Availability

Location Available Qty
Available Available to Order
$38.48 each

The TX6-28 Cat 6 UTP Patch Cord is a 25-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28SP25BU
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit
Jacket Material LSZH Material
Standard Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80
UPC 074983655359
GTIN 00074983655359
Item Type Patch Cord
Outside Diameter 0.15 IN
Temperature Rating 140 °F
