BURNDY

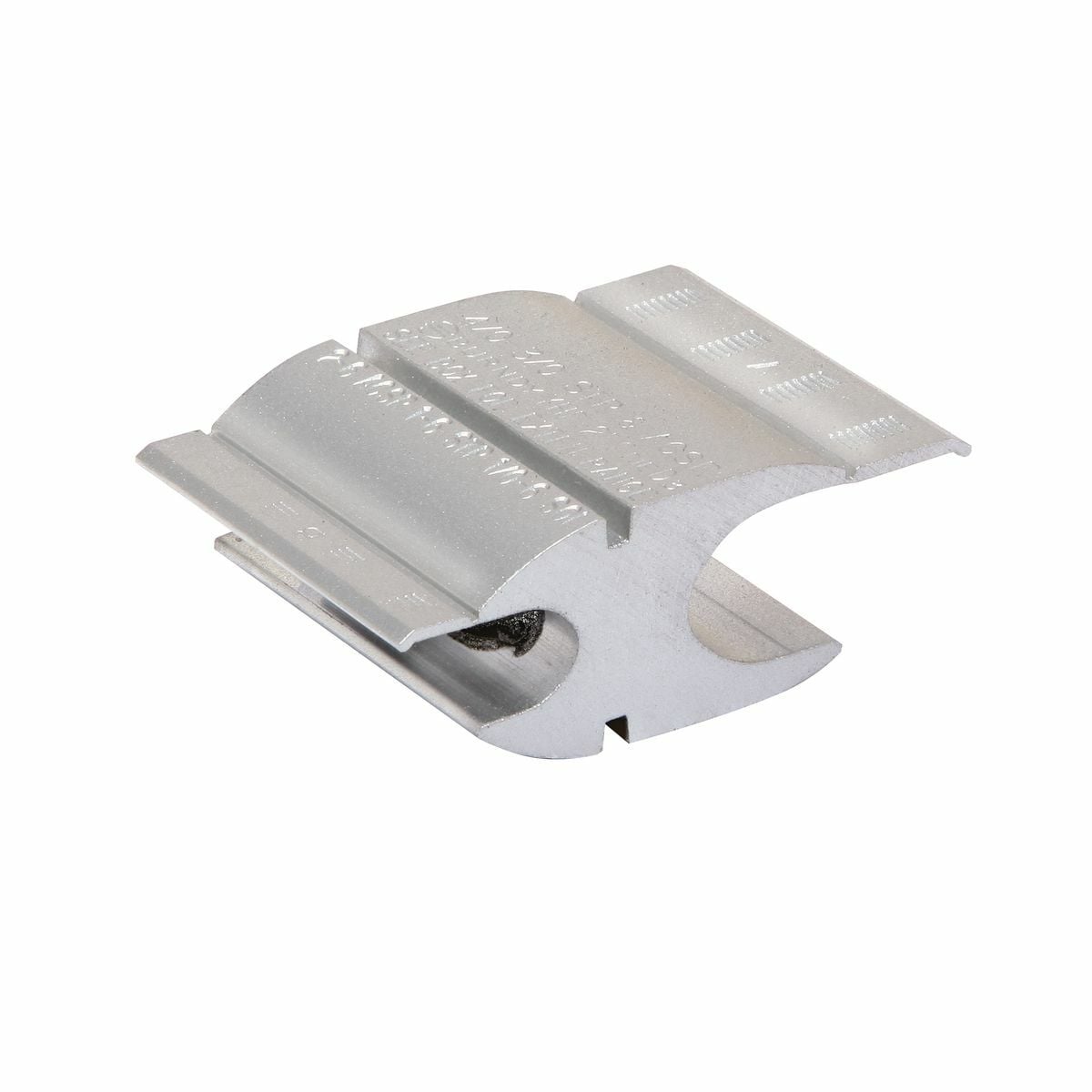

YHN525 Type YHN Overhead Compression Line Tap Connector, Figure H Shape, 4/0 AWG to 500 kcmil Main/Run, 4/0 AWG to 500 kcmil Tap, Aluminum

MFR:
Burndy, a Hubbell affiliate
MFR #:
YHN525
UPC:
781810139509
Item #:
350749

Availability

Location Available Qty
Available Available to Order
$41.70 each
Manuals and Documentation
Catalog Number YHN525
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin Mexico
Made in USA No
Application For Copper, Aluminum Or ACSR And Compact Conductors
Material Aluminum
Special Features Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Die Index: N Element A, Cable Diameter Range (run): 0.522 - 0.815 IN, Cable Diameter Range (tap): 0.522 - 0.814 IN, Installation Tool: Mechanical Or Hydraulic Installation Tooling, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (3), Y45 Tool, S-N Die, (3), Y46 Tool, P-N Die, (3), Conductor Type: Run: Aluminum Stranded, Copper Stranded, Tap: Aluminum Stranded, Copper Stranded, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Shape: H, Conductor Size (tap Range): 4/0 AWG - 500 KCMIL
UPC 781810139509
GTIN 00781810139509
Item Type YHN
