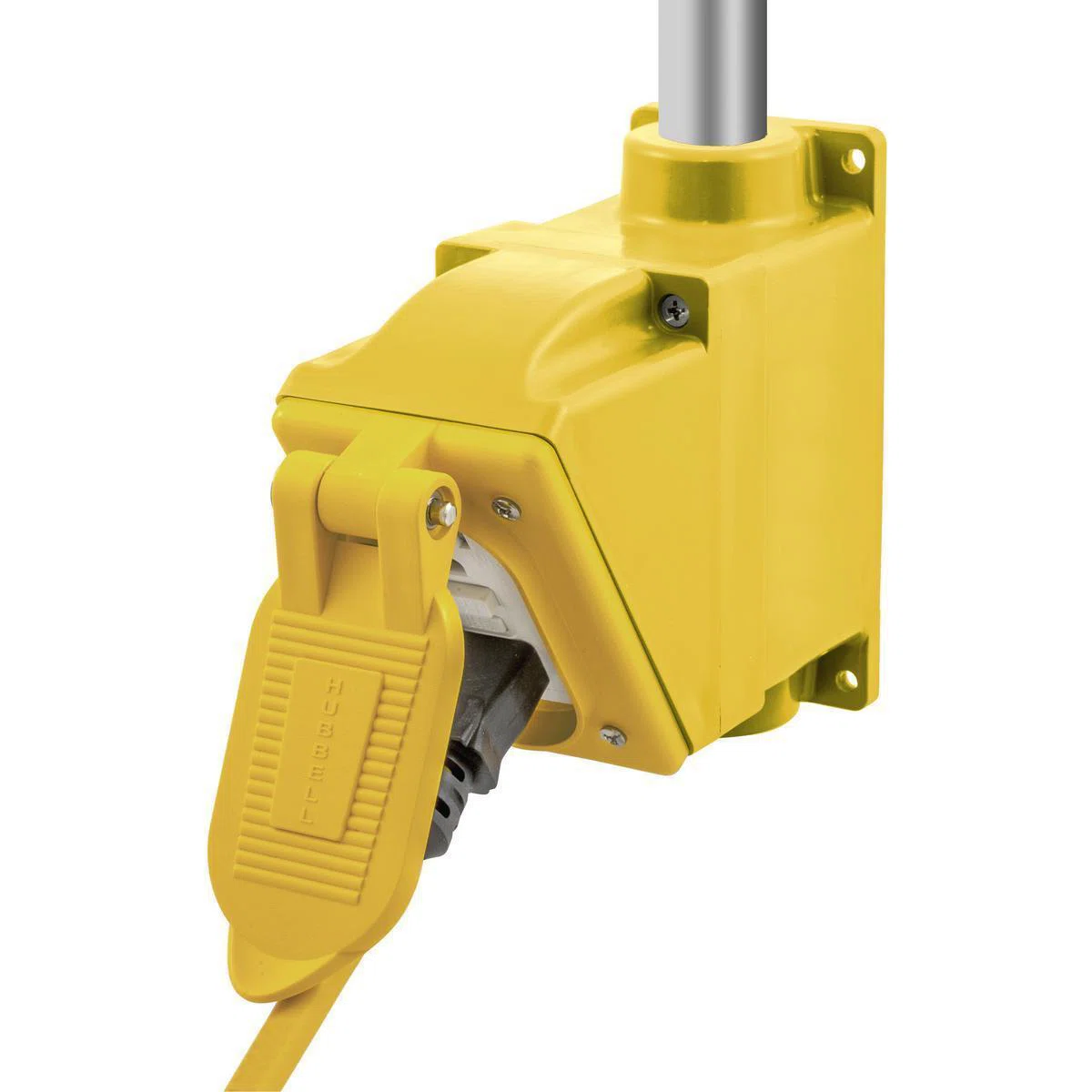

HBL60CM83A Non-Metallic Standard Watertight Molded FD Box, Thermoplastic, 22 cu-in Capacity, 1 Gangs, (1) Outlets, 5.92 in L x 2.77 in W x 3.53 in D
- MFR:
- Hubbell
- MFR #:
- HBL60CM83A
- UPC:
- 783585528779
- Item #:
- 349253
HBL60CM83A Non-Metallic Standard Watertight Molded FD Box, Thermoplastic, 22 cu-in Capacity, 1 Gangs, (1) Outlets, 5.92 in L x 2.77 in W x 3.53 in D
- MFR #:
- HBL60CM83A
- UPC:
- 783585528779
- Item #:
- 349253
Availability
| Location | Available Qty |
|---|---|
| Available | 13 ea |
$65.43
each

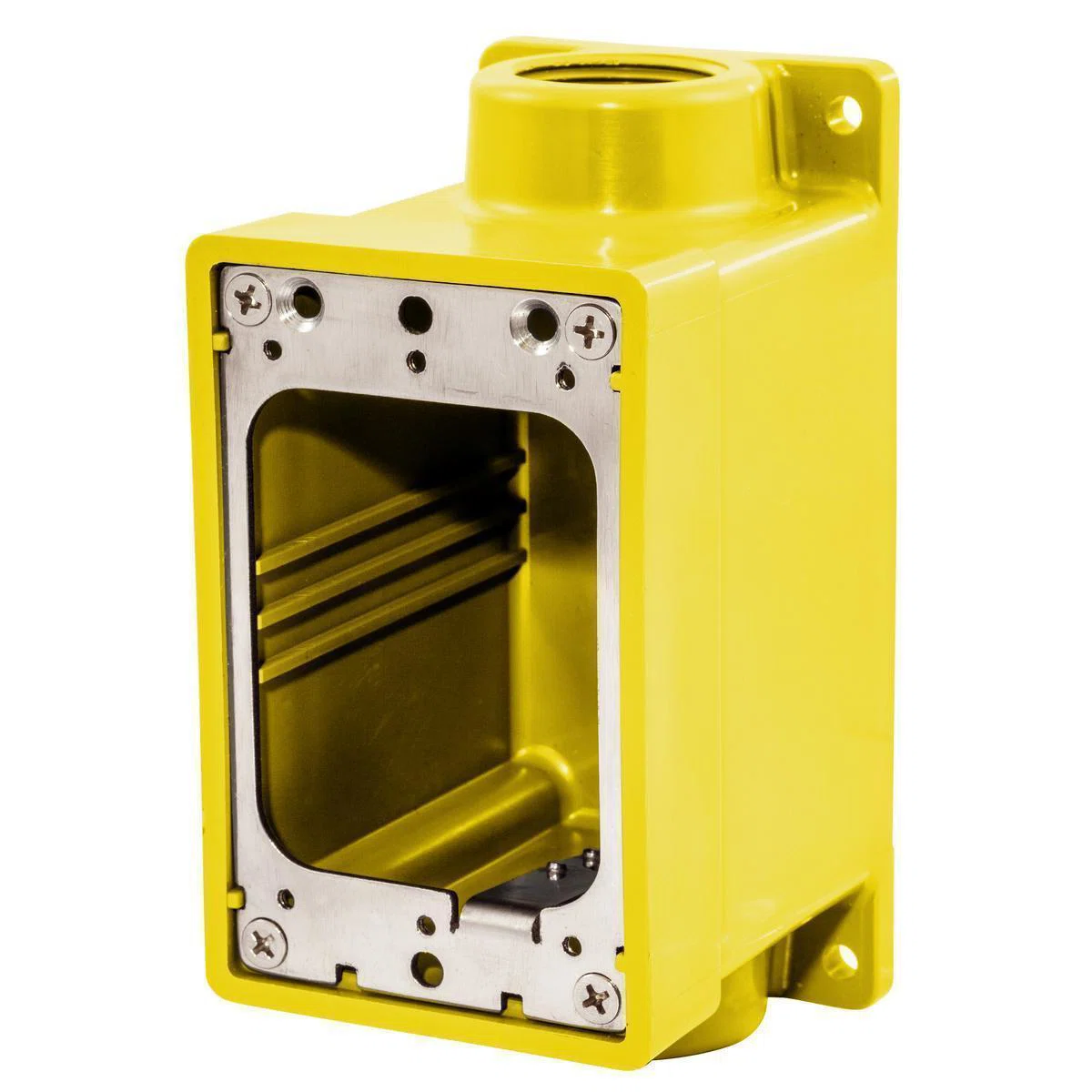

Hubbell® FD boxes and angled adapters are made of high impact resistant material. They are the only NEC compliant box system that has enough wiring room for a 50 A Twist Lock® device. The stainless steel mounting and grounding bracket provides corrosion resistance, necessary in direct wash down applications. The FD coxes are UL type 4X rated when used with watertight lift covers, i.e. HBL6500 or HBL6700 as well as with a blank plate such as HBL60CM88. The box and angled adapter can either be purchase separately or as a kit. The FD box and adapter can be used with any single or duplex receptacle up to 50 A Twist Lock®.
Manuals and Documentation
Features
- 30 cu-in FD box made of impact resistant PBT
- Accepts duplex and single receptacles up to 50 A
- External mounting feet, accepts #10 screw
- Stainless steel mounting grounding bracket
| Manufacturer Part Number | HBL60CM83A |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585528779 |
| EAN | 0783585528779 |
| Country Of Origin | US |
| Capacity | 22 cu-in |
| Color | Yellow |
| Dimensions | 5.92 in L x 2.77 in W x 3.53 in D |
| Enclosure Type | NEMA 4X/IP65/IP66 |
| Material | Thermoplastic |
| Mounting Type | Threaded |
| Temperature Rating | -40 to 75 deg C |
| Type | Non-Metallic Standard Watertight Molded |
| Number Of Outlets | 1 |
| Alternative Part Number | 13092636 | 13491109 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | CSA C22.2 No. 42 | NEMA WD1/WD6 | ANSI Specified | UL 514C/50E | cULus Listed |
| Application | Industrial and Commercial Applications |
| Hub Size | 3/4 in |
| Hub Style | NPT |
| Knockout Size | 3/4 in NPT |
| Mounting Orientation | Threaded |
| Number Of Gangs | 1 |
