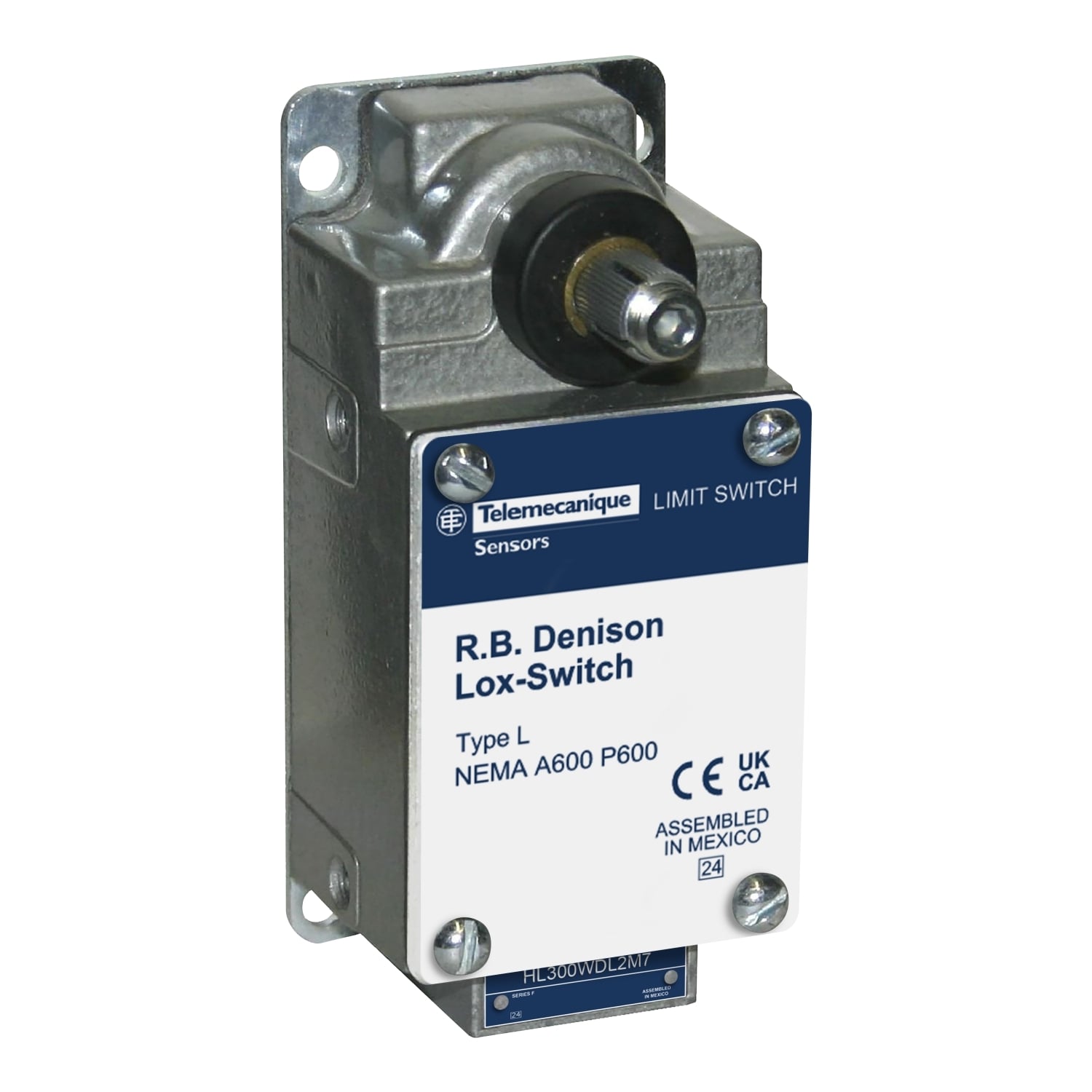

Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW, 1/2" NPT
- MFR:
- Telemecanique Sensors
- MFR #:
- L300WDL2M8
- UPC:
- 785901892168
- Item #:
- 346491
Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW, 1/2" NPT
- MFR #:
- L300WDL2M8
- UPC:
- 785901892168
- Item #:
- 346491
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$790.53
each
L300 foundry limit switch - 2 contacts - spring return - CW - 1/2" NPT
Manuals and Documentation
| Catalog Number | L300WDL2M8 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Action | CW;from left;Lateral approach;Snap action |
| Actuator | spring return without operating lever |
| Amperage Rating | 20 |
| Application | Foundry switch |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Contact Configuration | Form YY |
| Contact Rating | NEMA A600/P600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Special Features | -,FIXED |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901892168 |
| GTIN | 00785901892168 |
| Item Type | Limit switch |
| Size | 2.03 |
| Operating Temperature | -10-185 A Degrees F |
| Voltage Rating | 600V |
