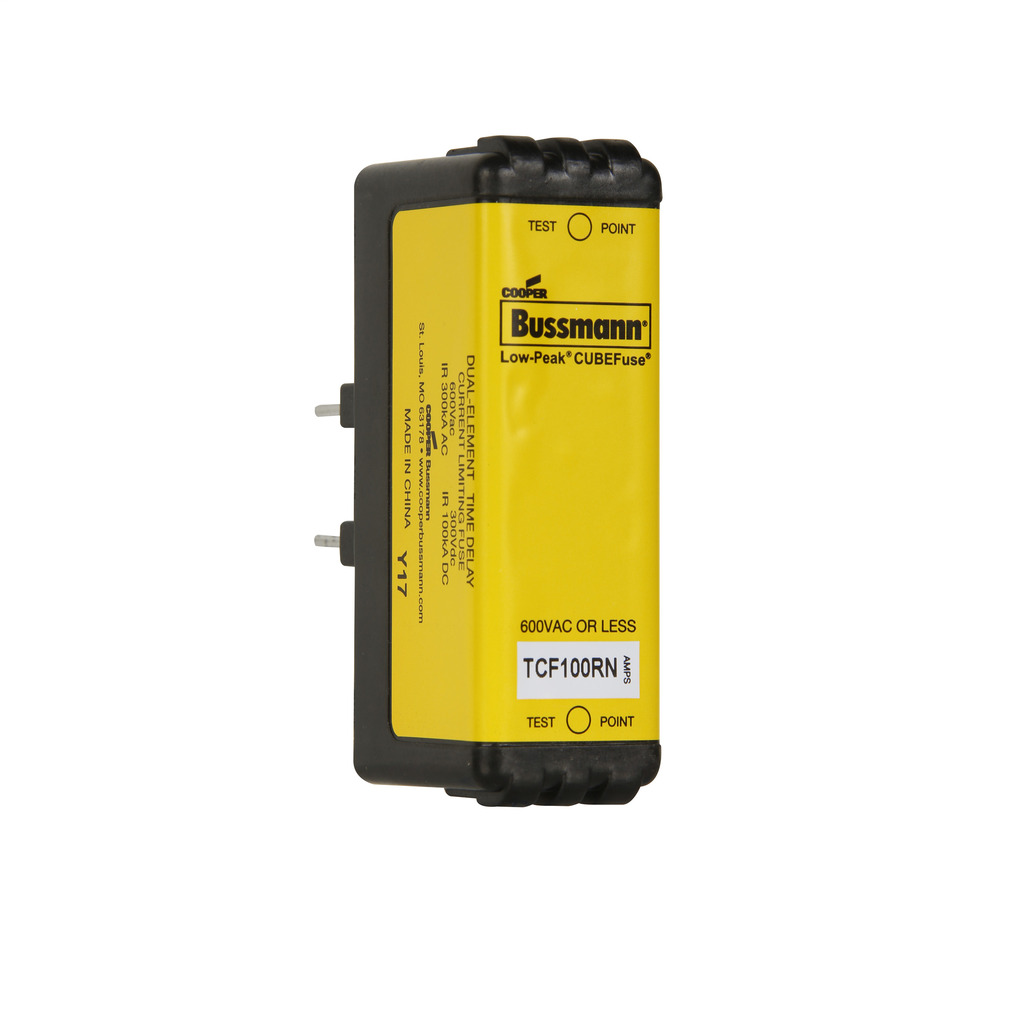

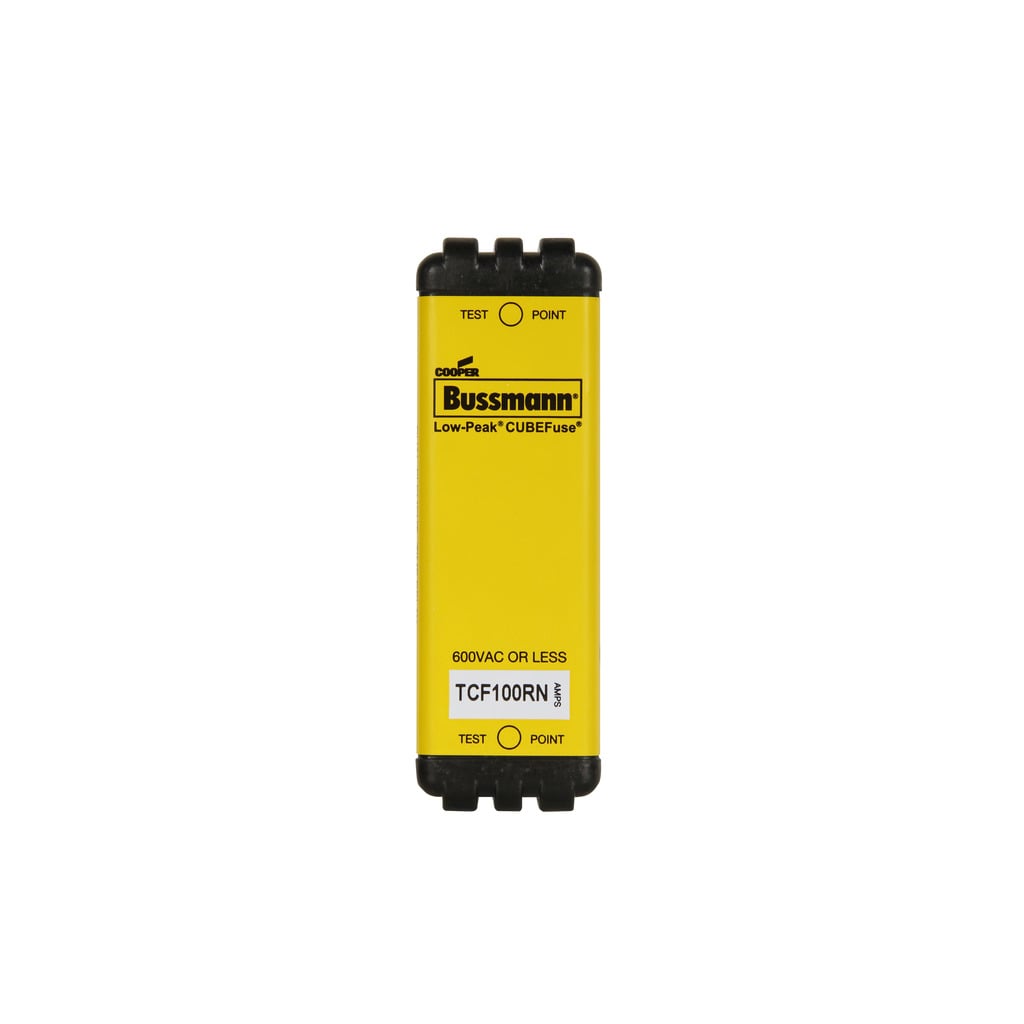

Eaton Bussmann series TCF fuse, 100 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- TCF100RN
- UPC:
- 051712236195
- Item #:
- 344776
Eaton Bussmann series TCF fuse, 100 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
- MFR #:
- TCF100RN
- UPC:
- 051712236195
- Item #:
- 344776
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$384.74
each
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Manuals and Documentation
| Catalog Number | TCF100RN |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems|Datacenters - Facilities: Power Distribution|Commercial / Institutional Buildings / Structures - Critical Power|Ind Facilities & Factories - Facility: Power Distribution and Control|Stationary Machinery and Equipment Outside Factory - HVAC |
| Connection | Blade end |
| Interrupt Rating | 300 kAIC at 600 Vac|100 kAIC at 300 Vdc |
| Material | Glass filled PES |
| Mounting | Din Rail |
| Response Time | 10 S at 500% |
| Special Features | Finger safe |
| Standard | CSA Certified ,UL Listed,CE Marked,RoHS Compliant |
| UPC | 051712236195 |
| GTIN | 00051712236195 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Voltage Rating | 600 Vac, 300 Vdc |
