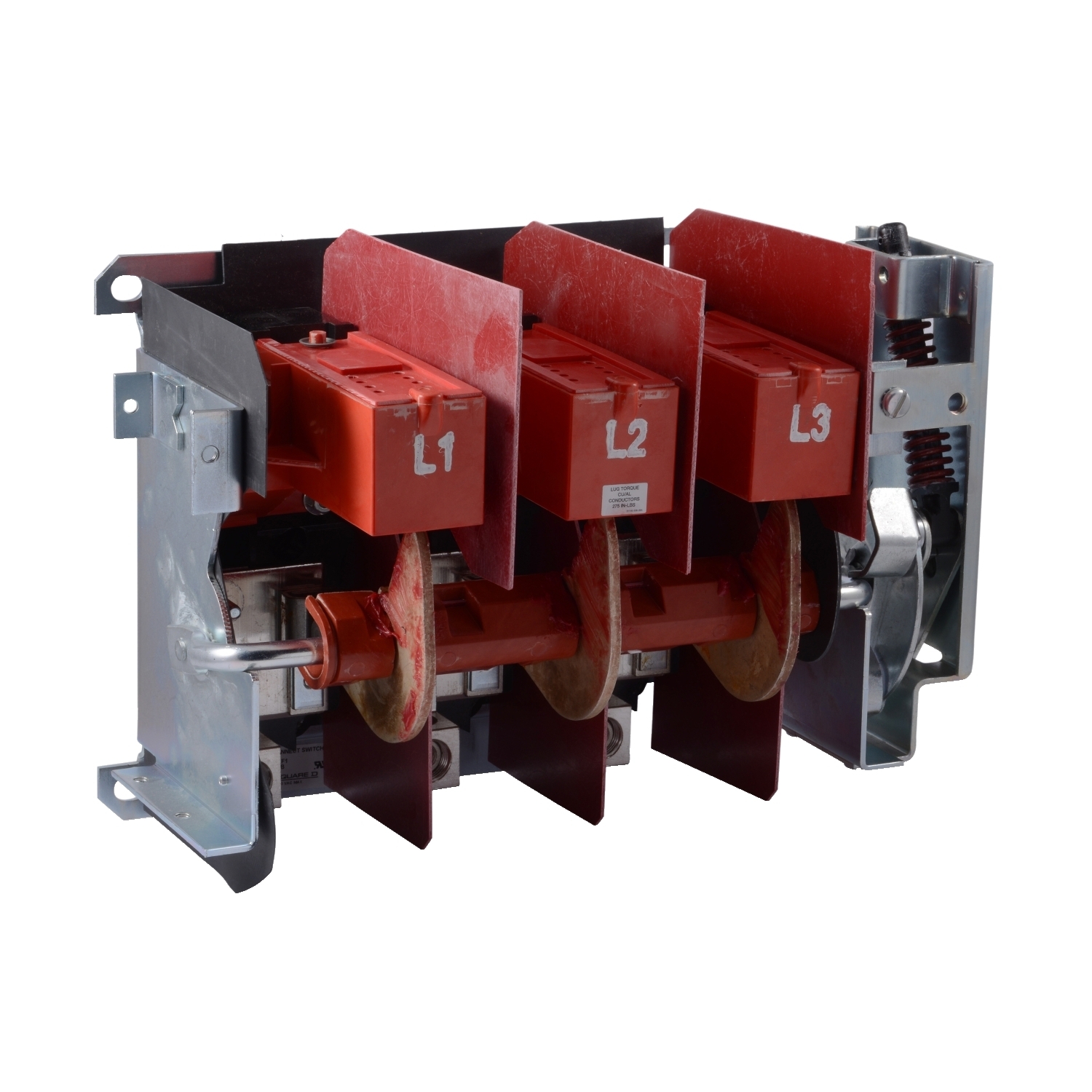

9422TFB2 Class H/K/J/R Fusible Fixed/Variable Depth Disconnect Switch, 250/600 V AC, 200 A, 40 hp at 200 V AC, 60 hp at 230 V AC, 125 hp at 460 V AC, 150 hp at 575 V AC, 40 hp at 250 VDC
- MFR:
- Schneider Electric
- MFR #:
- 9422TFB2
- UPC:
- 785901043782
- Item #:
- 343383
9422TFB2 Class H/K/J/R Fusible Fixed/Variable Depth Disconnect Switch, 250/600 V AC, 200 A, 40 hp at 200 V AC, 60 hp at 230 V AC, 125 hp at 460 V AC, 150 hp at 575 V AC, 40 hp at 250 VDC
- MFR #:
- 9422TFB2
- UPC:
- 785901043782
- Item #:
- 343383
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. This bracket mount mount disconnect switch is rated at 200 A. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 600 VDC. Switch is UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 9422TFB2 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Fuse Type | K;R;J;H |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565971&lang=en-us |
| UPC | 785901043782 |
| GTIN | 00785901043782 |
