Appleton

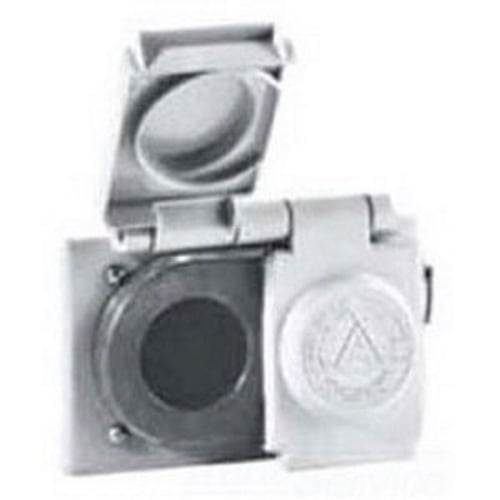

1 Gang Wet Location Duplex Receptacle Cover; 2-13/16 Inch Width x 1-5/32 Inch Depth x 4-9/16 Inch Height, Horizontal Mount, Copper-Free Aluminum

MFR:
Appleton Electric
MFR #:
FSKD5-20
UPC:
781381461191
Item #:
342359

Availability

Location Available Qty
Available Available to Order
$311.08 each

Receptacle With Duplex Box Cover, Number Of Poles: 2, Number Of Wires: 3, Amperage Rating: 20 AMP, Voltage Rating: 125 V, Material: Diecast Copperfree (4/10 Of 1 PCT) Aluminum, Nema Rating: NEMA 5-20R, Mounting: Box, Standard: NEMA WD-1

Manuals and Documentation
Catalog Number FSKD5-20
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Duplex FS Boxes, Non-Locking Blade Plugs, With 1-3/8 IN Device Opening
Material Diecast Copperfree (4/10 Of 1 PCT) Aluminum
Mounting Box
Special Features Receptacle interiors are specification grade, back and side-wired; Duplex units accommodate one receptacle and one toggle switch or any combination of the two; Covers open all the way, permitting easy plug insertion and withdrawal; Also permits adequate access to cover screws for easy attachment of cover to FS, FD or other device box; Large head cover screws are captivated; Unique design of spring door hinge provides smooth action; Duplex units have a separate hinge shaft for each spring door cover to reduce stress on the shafts; Spring door cover puts pressure on plug to hold plug in best position for providing optimum weatherproof seal
Standard NEMA WD-1 And WD-5, NEC 406.8(B) And CEC
RoHS Indicator Contact Manufacturer
UPC 781381461191
GTIN 00781381461191
Item Type Receptacle With Duplex Box Cover
Length 4.3000
Length UOM Inch
Width 3.2000
Width UOM Inch
Height 3.0000
Height UOM Inch
Weight 0.590
Weight UOM Pounds
