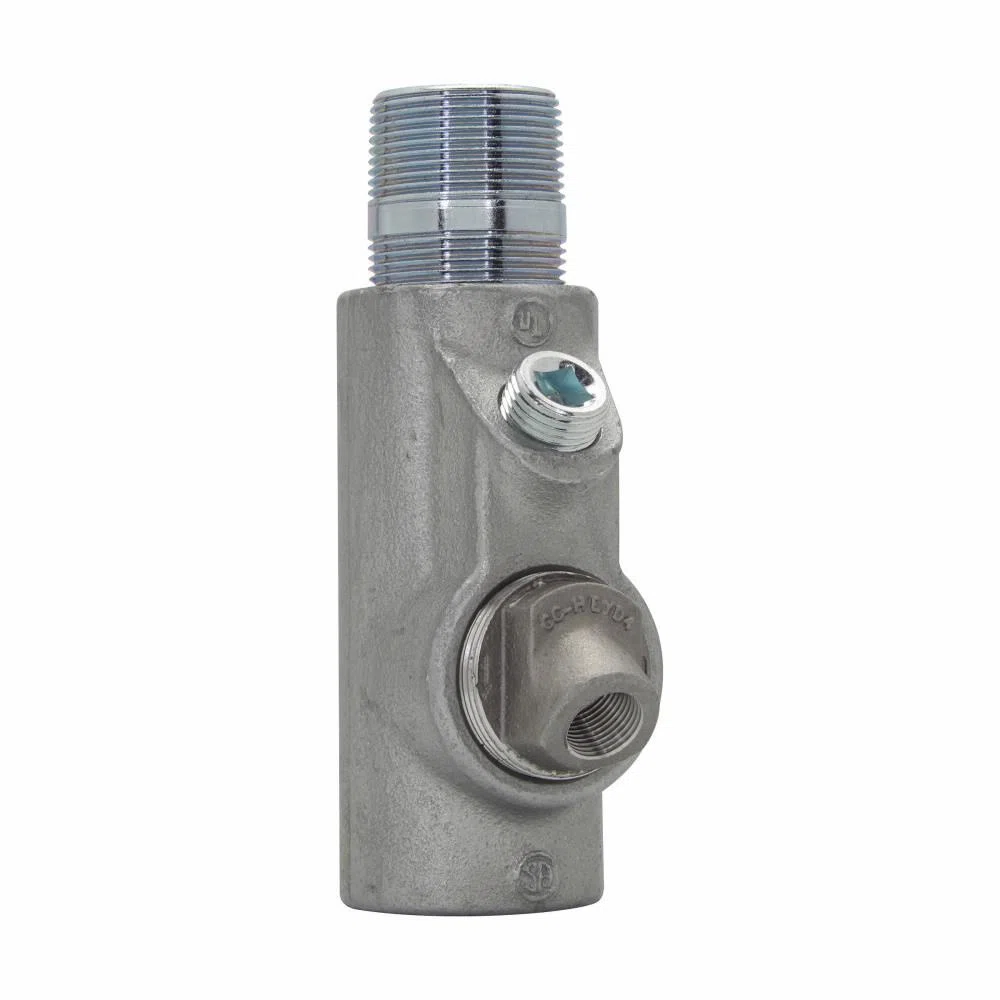

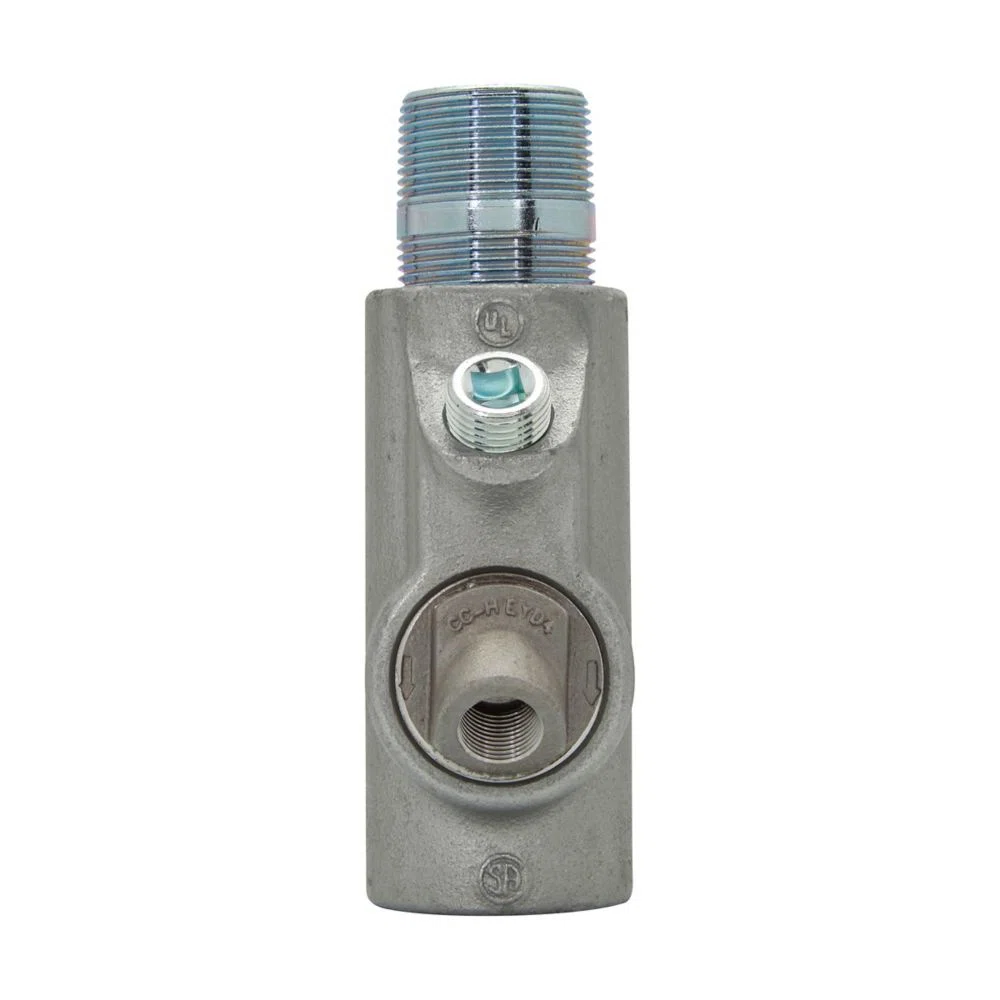

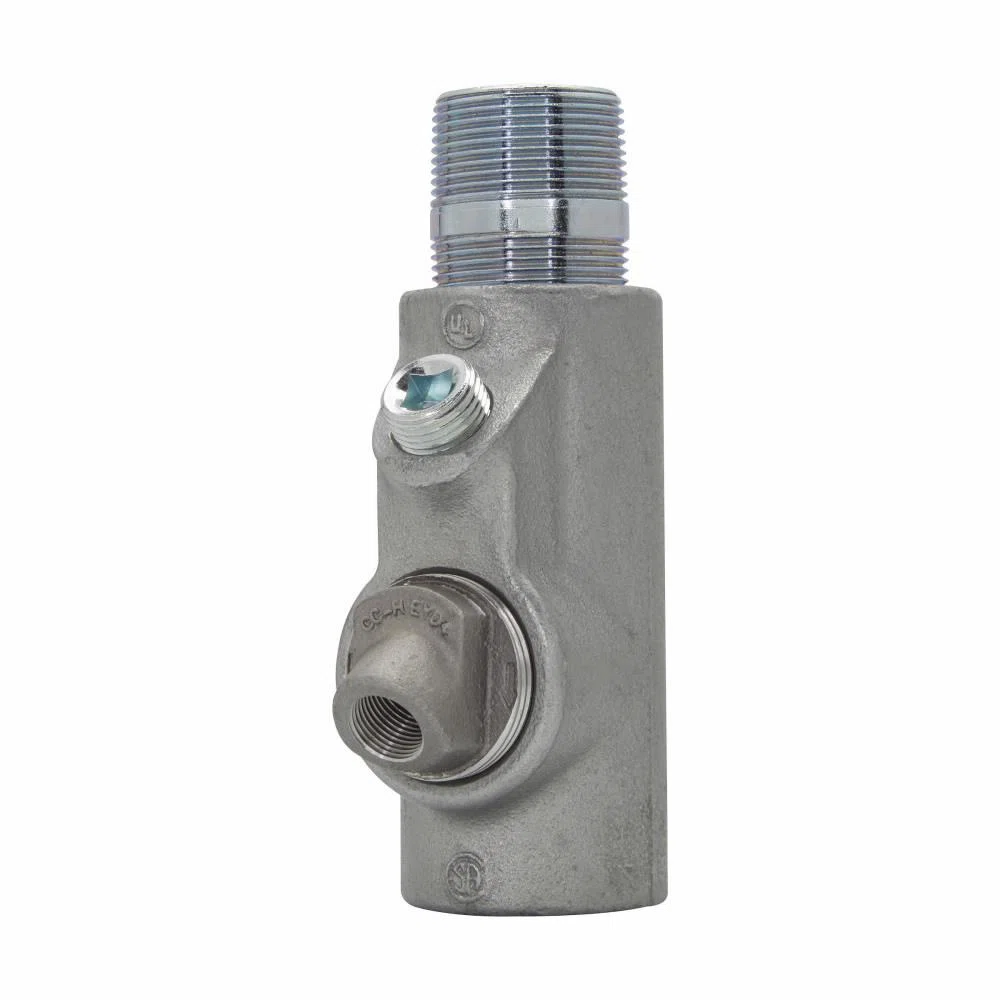

EYD716 Condulet Dust-Ignitionproof Explosionproof Conduit Sealing Fitting With Drain, 2-1/2 in MNPT x 2-1/2 in FNPT, For Use With Vertical Position Conduit System, Ductile Iron/Feraloy Iron Alloy
- MFR:
- Eaton
- MFR #:
- EYD716
- UPC:
- 782274365237
- Item #:
- 34130
EYD716 Condulet Dust-Ignitionproof Explosionproof Conduit Sealing Fitting With Drain, 2-1/2 in MNPT x 2-1/2 in FNPT, For Use With Vertical Position Conduit System, Ductile Iron/Feraloy Iron Alloy
- MFR #:
- EYD716
- UPC:
- 782274365237
- Item #:
- 34130
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,344.57
each
In addition to restricting the passage of gases, vapors or flames from one portion of the electrical installation to another, Crouse-Hinds series EYD and EZD drain sealing fittings prevent accumulation of condensate above the seal. They are installed in vertical conduit runs and at low points in conduit systems.
Manuals and Documentation
Features
- Drain to provide continuous, automatic drainage of condensate
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings to protect conductor insulation from damage
- Taper tapped hubs to ensure ground continuity
- Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
- Limit explosions to the sealed OFF enclosure
- Prevent pre-compression or pressure piling
- Drain sealing fittings are installed in vertical conduit runs and at low points in conduit systems to prevent accumulation of condensate above seal
- Stainless steel drain, steel removable nipples, Feraloy® iron alloy and/or steel small closure plug, copper-free aluminum or ductile iron closure for drain
- 2-11/16 in turning radius
| Manufacturer Part Number | EYD716 |
| Brand | Crouse-Hinds |
| Manufacturer | Eaton |
| UPC | 782274365237 |
| Country Of Origin | US |
| Dimensions | 7-1/2 in L x 3-1/2 in W |
| Finish | Aluminum Acrylic Painted/Electro-Galvanized |
| Material | Ductile Iron/Feraloy® Iron Alloy |
| Mounting Type | Surface |
| Series | EYD |
| Suitable For Use With | Vertical Position Conduit System |
| Type | Dust-Ignitionproof Explosionproof |
| Size | 2-1/2 in MNPT x 2-1/2 in FNPT |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | CSA C22.2 | Class I, Div 1, 2, Groups B, C, D Class II, Div 1, Groups E, F, G Class II, Div 2, Groups F, G Class III | UL 1203 | UL 886 |
| Application | Industry Facilities and Factories Applications |
