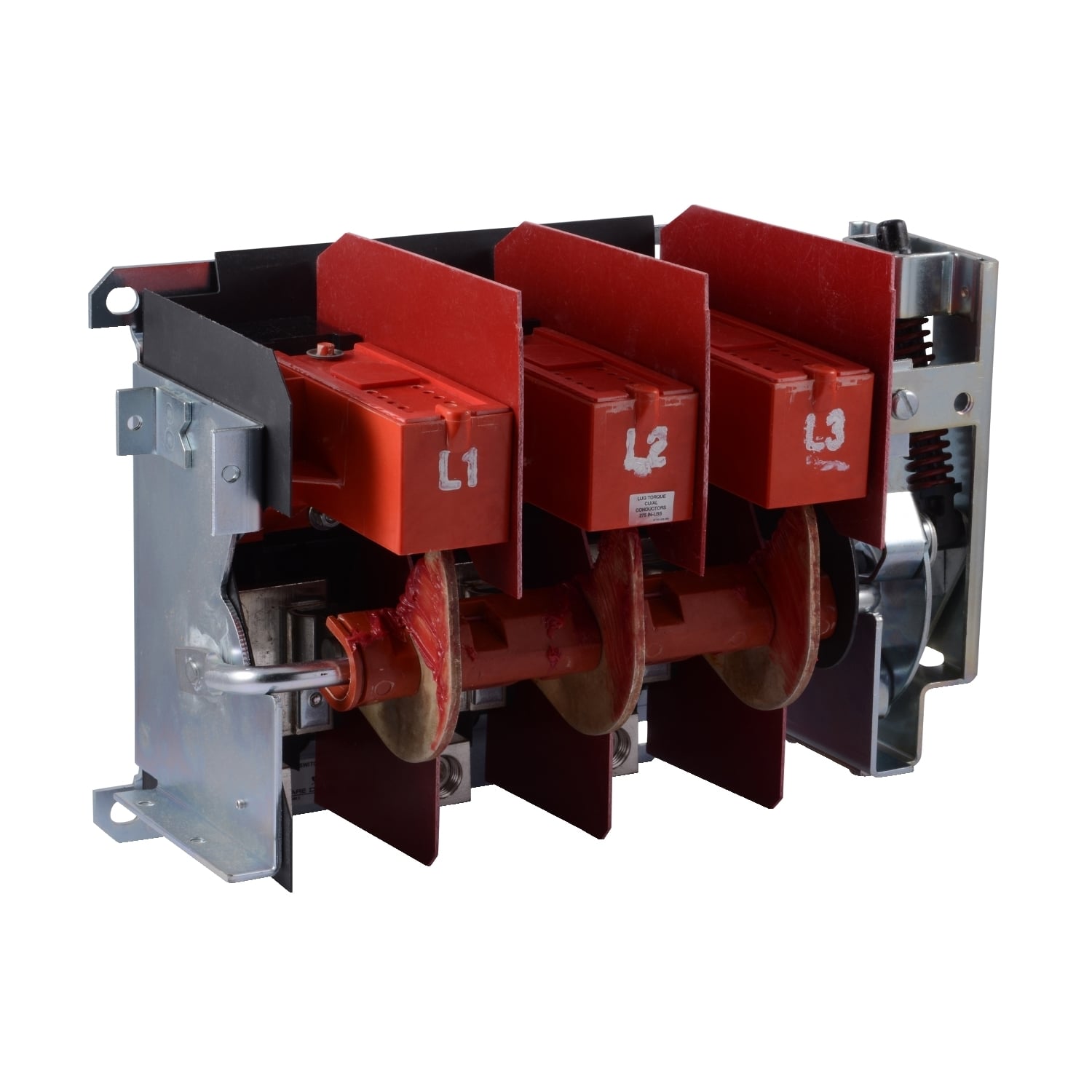

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 200 Amps up to 250 V and 200 Amps up to 600 V. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A2 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
