Telemecanique

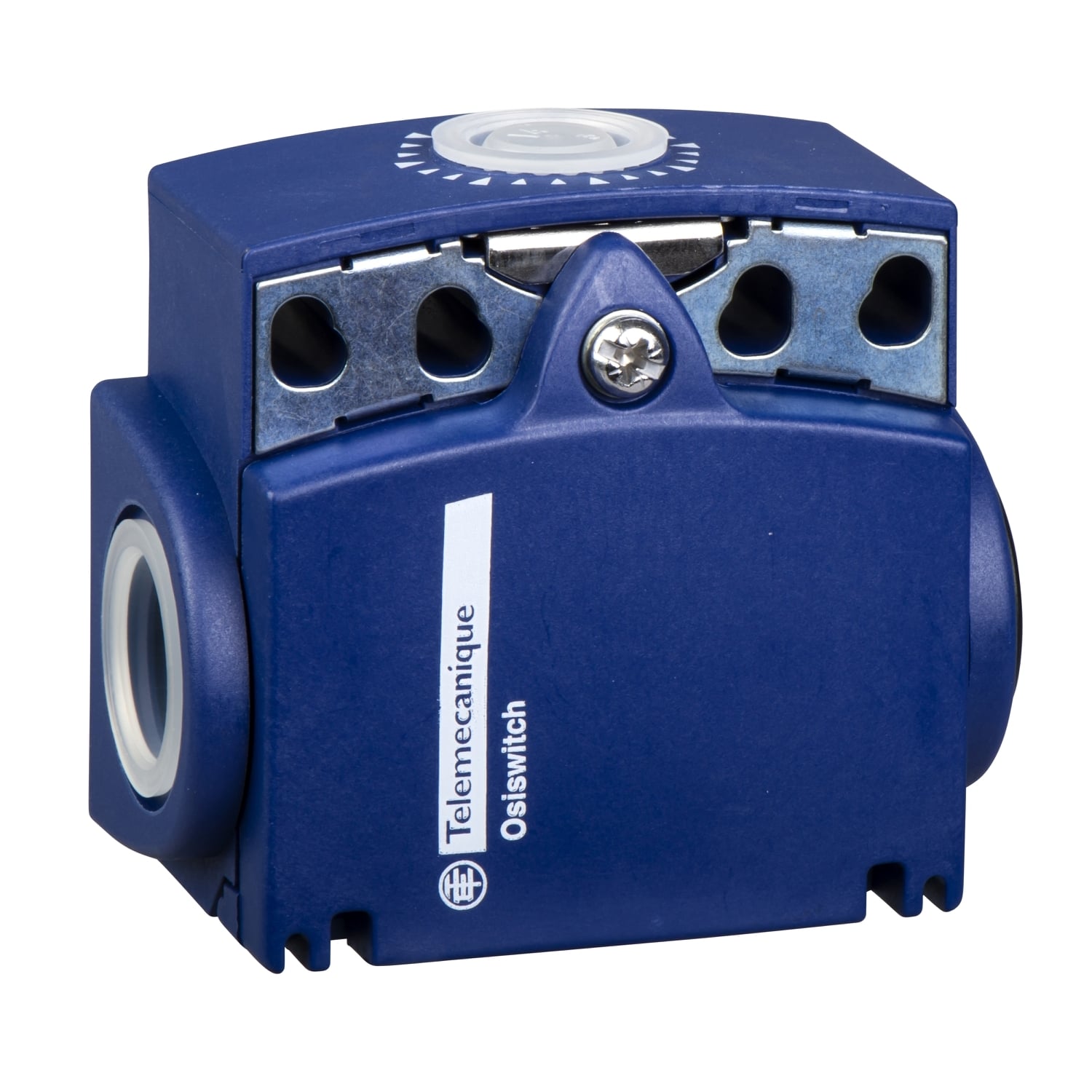

ZCT21P16 OsiSense 2-Pole Fixed Switch Body, 1NO-1NC Contact, For Use With XCKT and ZCT Series Standard Compact Limit Switch, 10 A at 300/500 V AC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCT21P16
UPC:
785901876472
Item #:
340022

Availability

Location Available Qty
Available Available to Order
$78.57 each

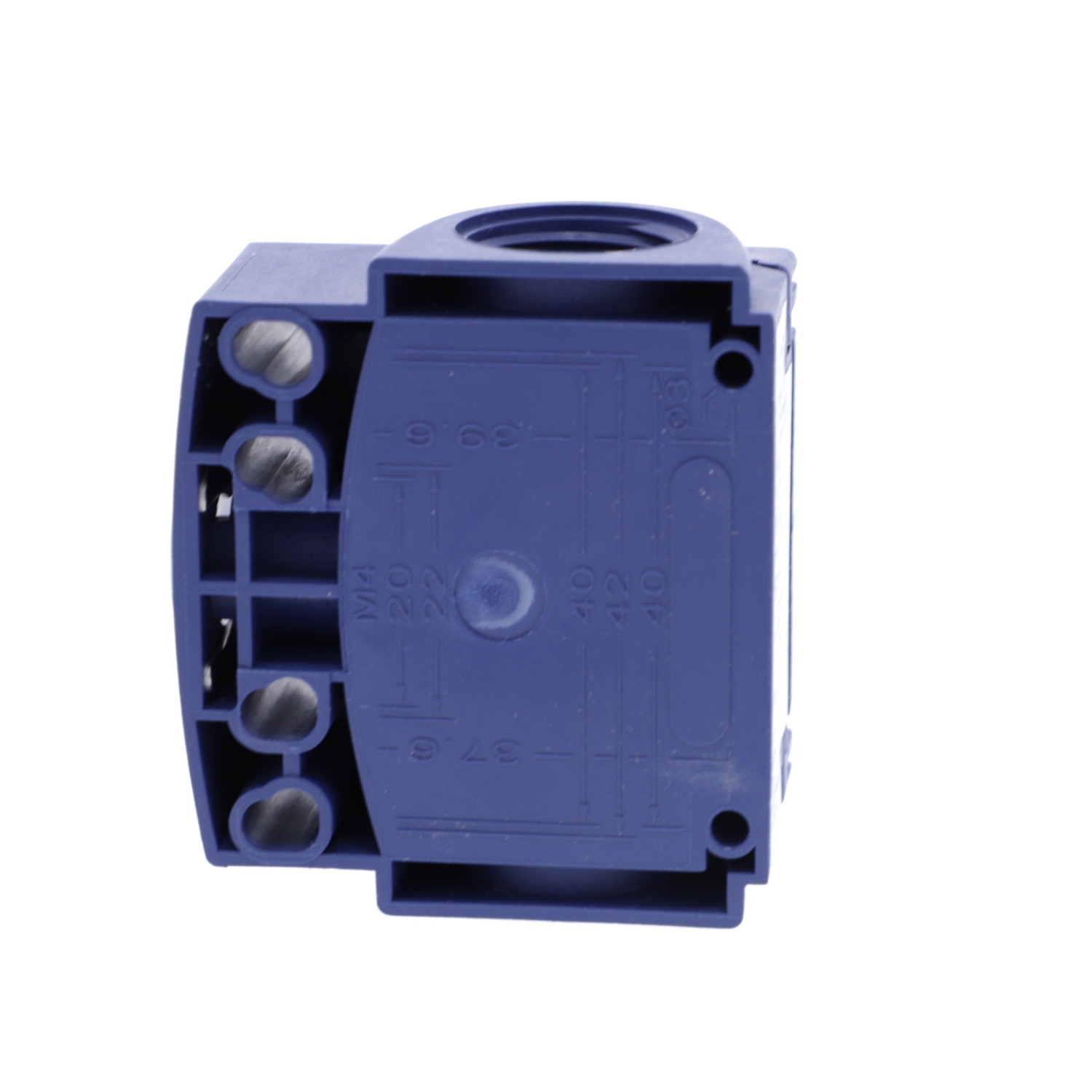

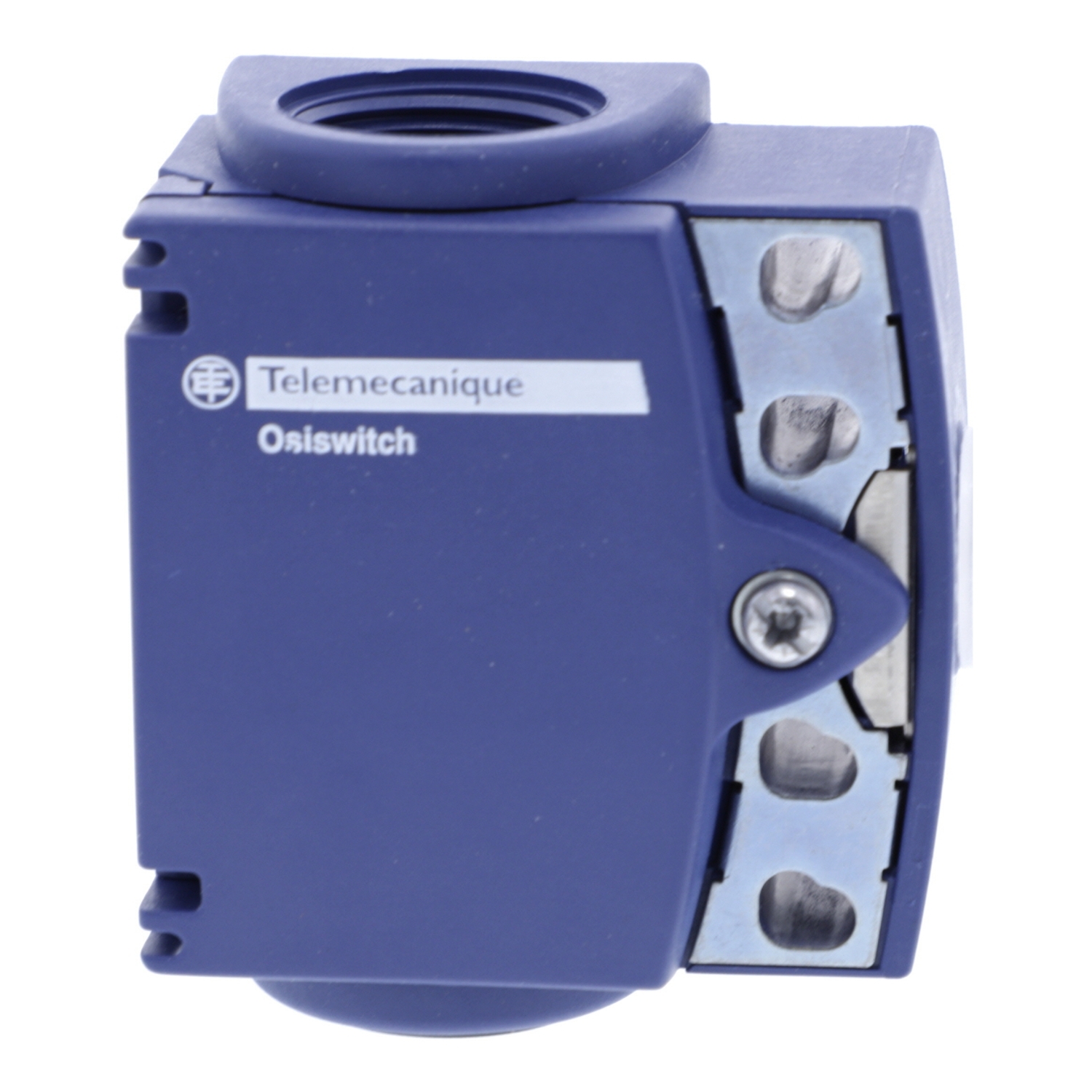

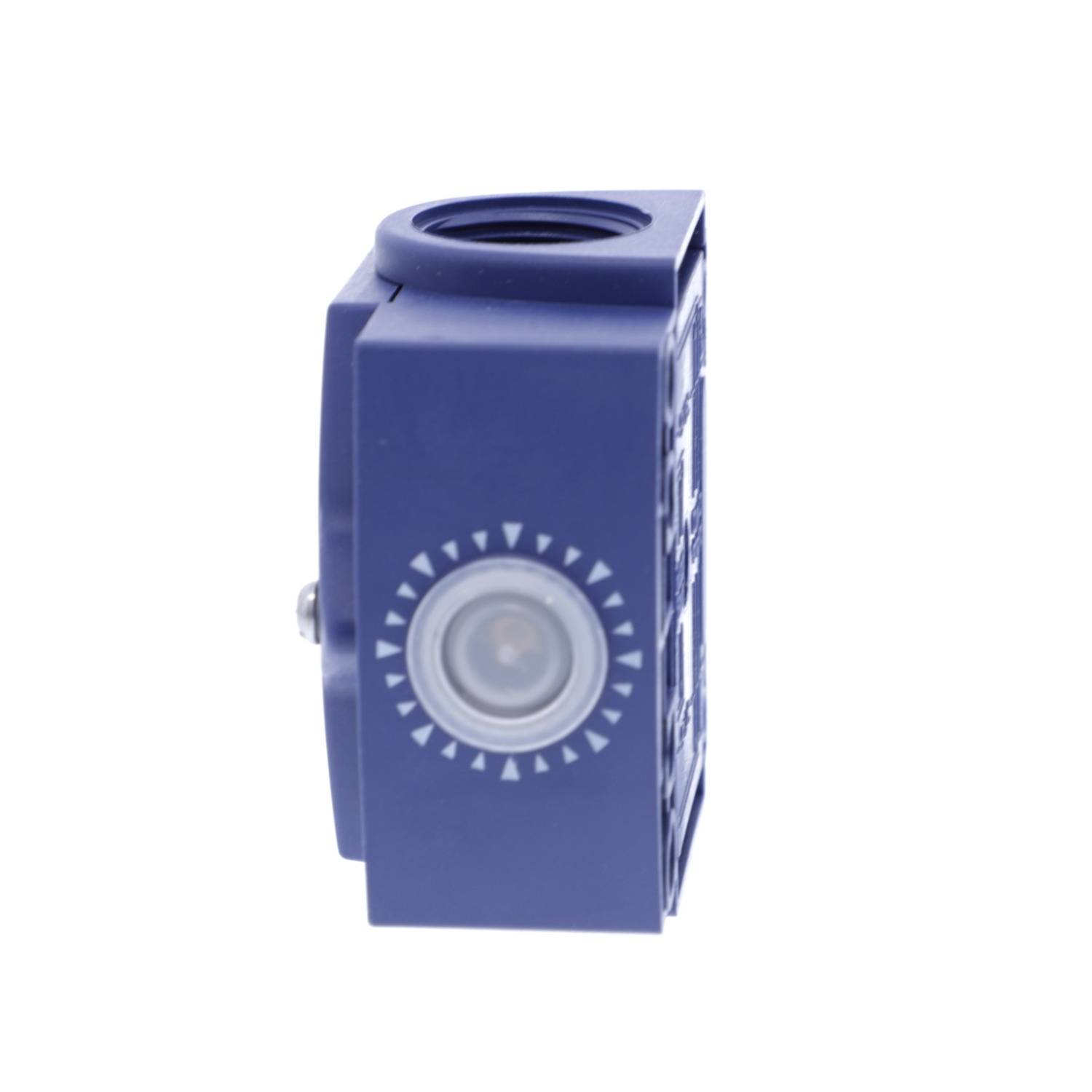

This ZCT body/contact assembly with connector has standard contacts and a plastic body. It has 1 x NO + 1 x NC snap action contacts and a M16 cable entry. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCT21P16
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKT
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard UL, CSA, IEC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880444&lang=en-us
UPC 785901876472
GTIN 03389110184440
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 300 V
