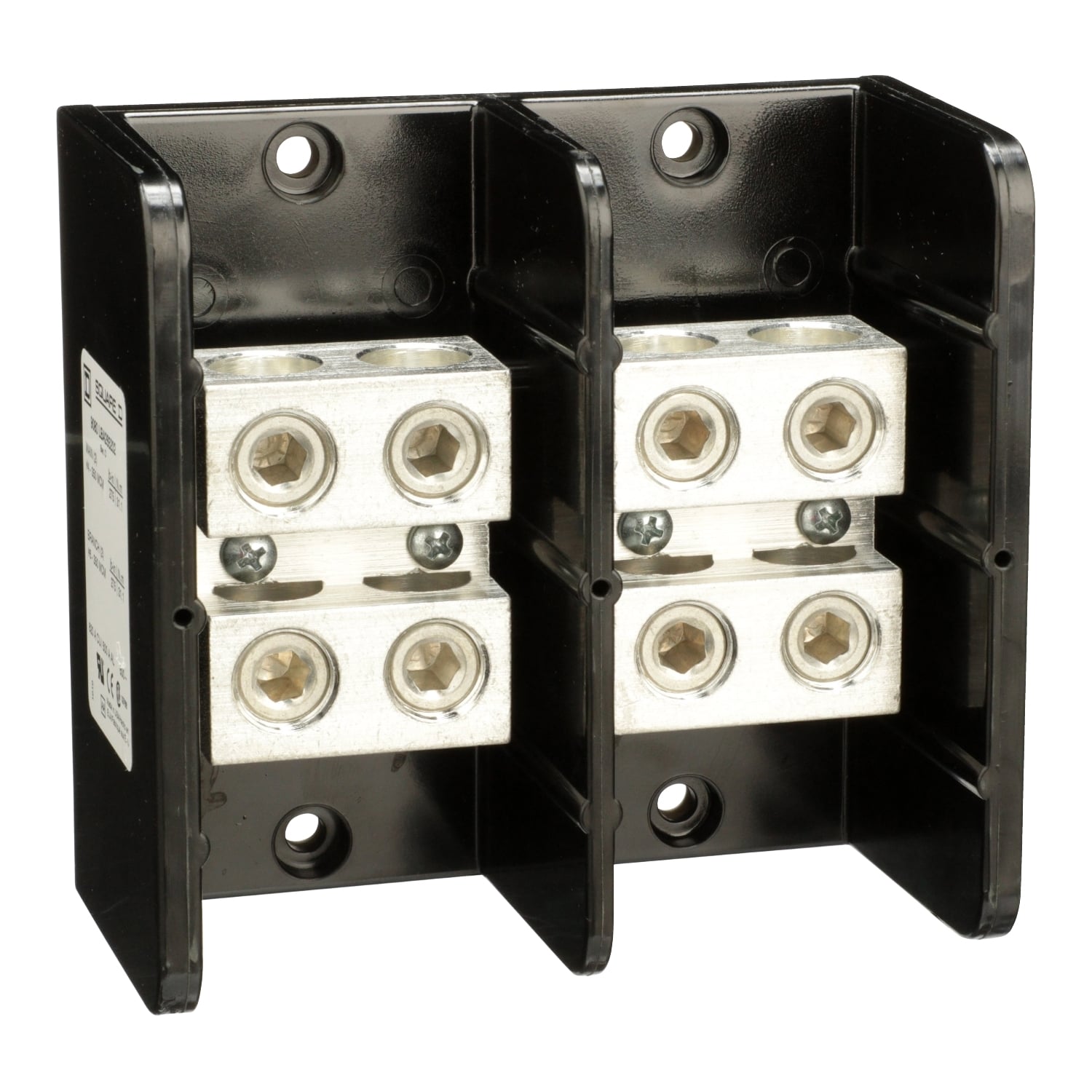

9080LBA265202 Linergy Multi-Pole Power Distribution Block, 600 V AC/DC, 620/500 A, 2 Poles, 6 AWG to 350 kcmil Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBA265202
- UPC:
- 785901157052
- Item #:
- 33994
9080LBA265202 Linergy Multi-Pole Power Distribution Block, 600 V AC/DC, 620/500 A, 2 Poles, 6 AWG to 350 kcmil Wire, Phenolic
- MFR #:
- 9080LBA265202
- UPC:
- 785901157052
- Item #:
- 33994
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$236.74
each

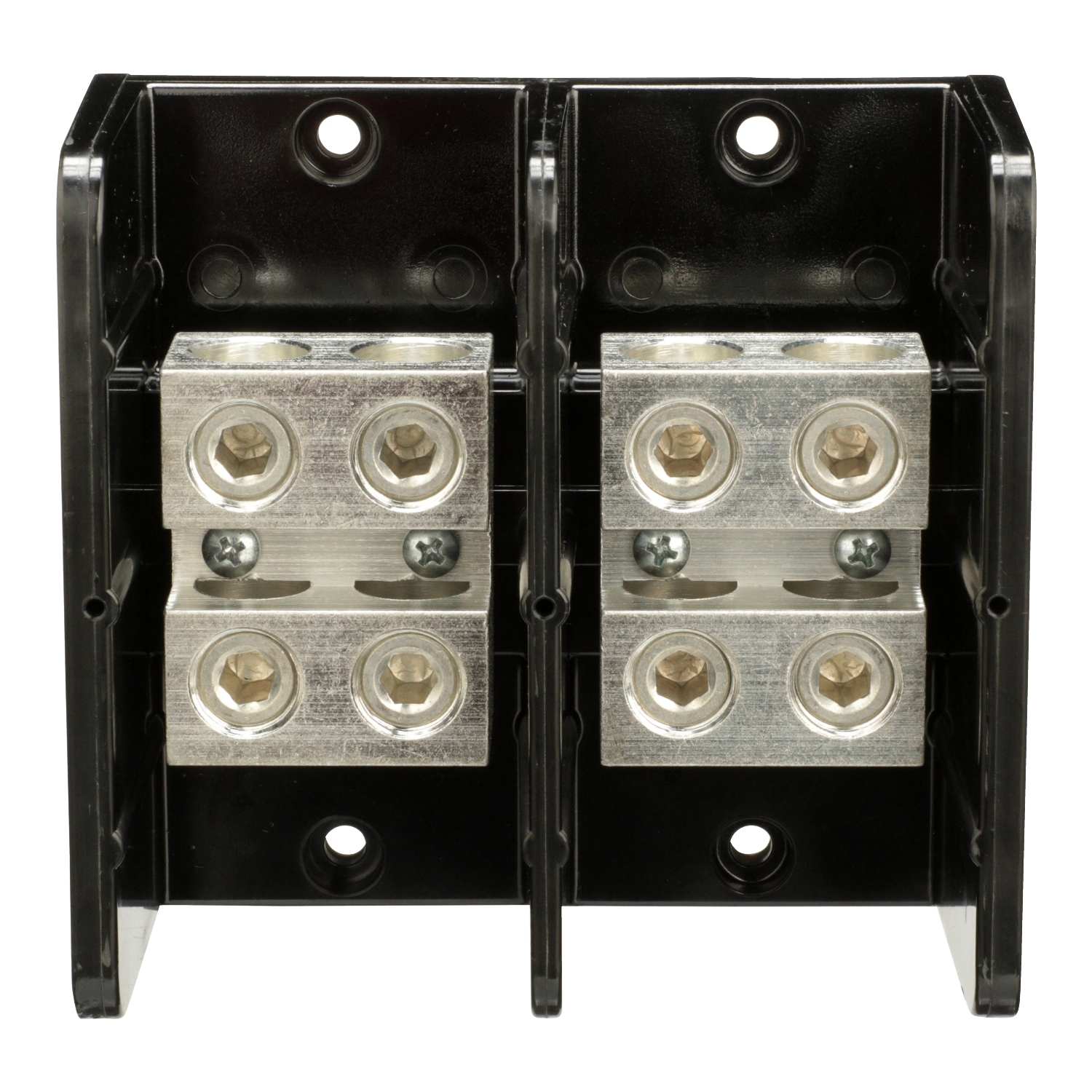

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 350 kcmil copper or aluminum wire. The load side lugs are rated to accept one #4 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 620 amperes with copper wire and 500 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 9080LBA265202 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Tin plated aluminium lugs;Line lug 275 lbf.in AWG 4...350 kcmil copper or aluminium;load lug 275 lbf.in AWG 4...350 kcmil copper or aluminium |
| Material | Phenolic: block |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372971&lang=en-us |
| UPC | 785901157052 |
| GTIN | 00785901157052 |
| Item Type | Power Distribution Block;9080LB52 |
| Width | 5.88 |
| Width UOM | Inch |
| Height | 5.5 |
| Height UOM | Inch |
| Depth | 3.13 IN |
