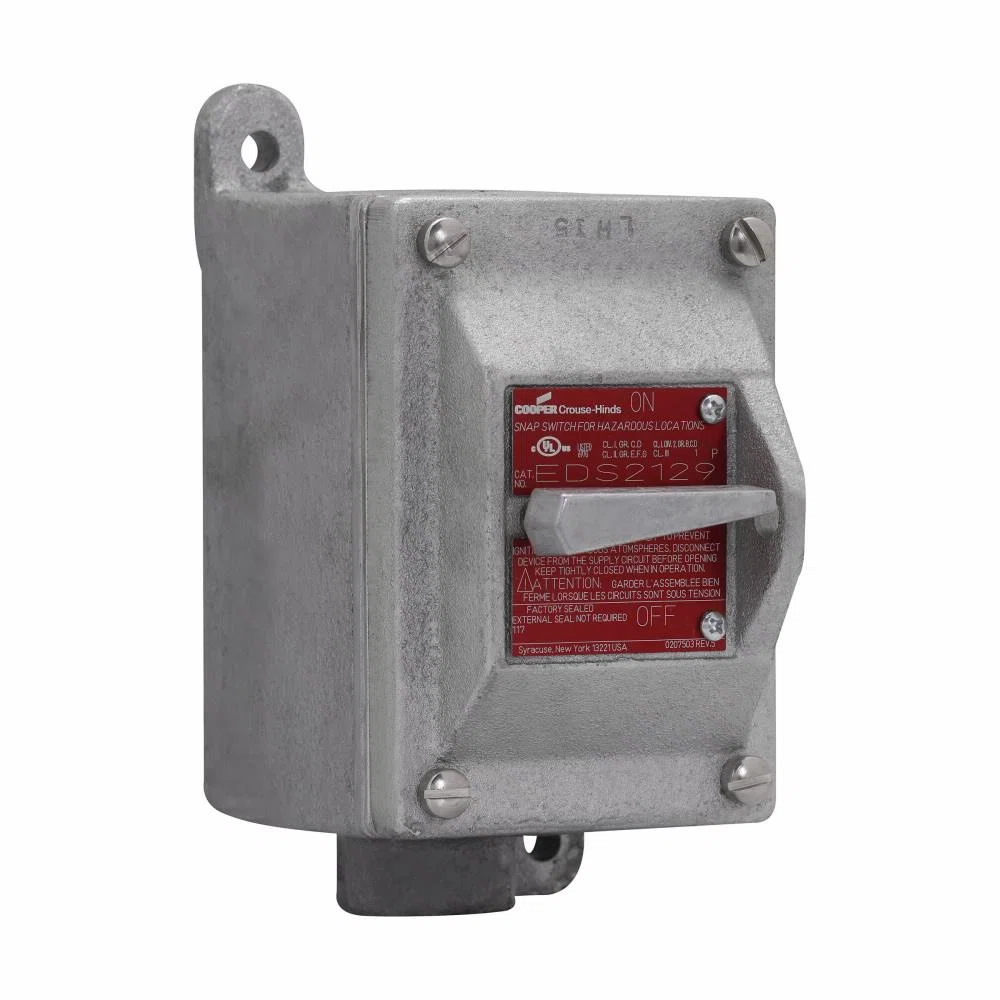

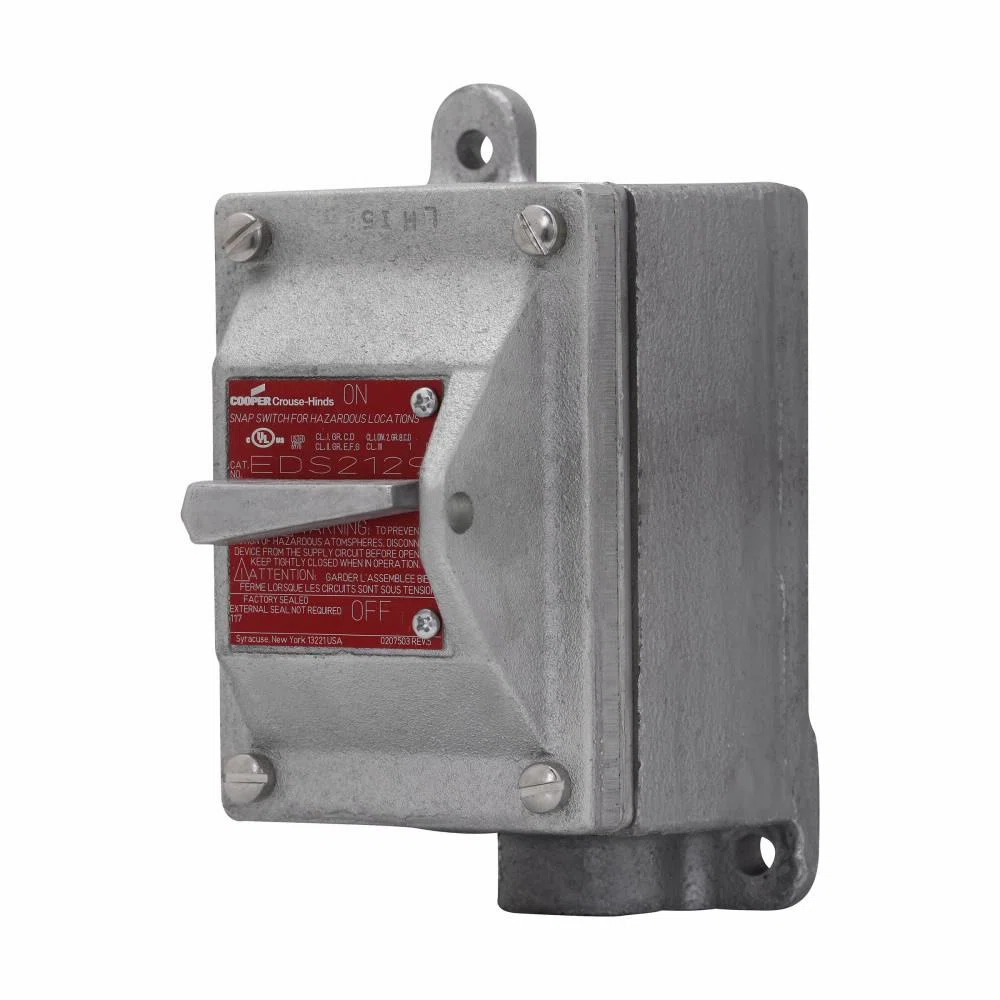

EDS2140 ESD Dust Ignitionproof Explosionproof Raintight Enclosure With Snap Switch, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H, NEMA 3/7B/7C/7D/9E/9F/9G/12 NEMA Rating, Feraloy Iron Alloy
- MFR:
- Eaton
- MFR #:
- EDS2140
- UPC:
- 782274763774
- Item #:
- 338
EDS2140 ESD Dust Ignitionproof Explosionproof Raintight Enclosure With Snap Switch, 5-7/8 in L x 3-1/2 in W x 3-1/16 in H, NEMA 3/7B/7C/7D/9E/9F/9G/12 NEMA Rating, Feraloy Iron Alloy
- MFR #:
- EDS2140
- UPC:
- 782274763774
- Item #:
- 338
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,575.40
each
New EDSX series available with NEMA 4X protection for Class I, Division 2 hazardous areas.EDS/EDSX and EFD snap switches are used with magnetic starters or contactors for control of motors. Snap switch control stations are factory sealed to prevent arcing of the enclosed device from causing ignition of a hazardous atmosphere external to the enclosure. Factory sealing eliminates the need for external seals, simplifying installation and reducing material and labor costs.
Manuals and Documentation
Features
- Small and compact in design
- Mounting lugs and taper tapped hubs with integral bushings
- Large machine screws for fastening covers to bodies
- Lockout hole for padlock having 1/4 in hasp is provided
- Threaded type shafts and bushings are used to insure flame tightness
- To prevent arcing of enclosed switch from causing ignition of a specific hazardous atmosphere or atmospheres external to the enclosure
- In non-hazardous areas where sturdy, durable enclosures are required
- 4-way, 1-gang
- Stainless steel shafts and shaft bushings
- Raintight
- With general use snap switch front operated
| Manufacturer Part Number | EDS2140 |
| Brand | Crouse-Hinds |
| Manufacturer | Eaton |
| UPC | 782274763774 |
| Country Of Origin | MX |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Height | 3-1/16 in |
| Length | 5-7/8 in |
| Material | Feraloy® Iron Alloy |
| Mounting Type | Surface |
| Series | ESD |
| Type | Dust Ignitionproof Explosionproof Raintight |
| Width | 3-1/2 in |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Standards Approvals | Class I, Division 1/2, Group C/D, Class II, Division 1, Group E/F/G, Class II, Division 2, Group F/G, Class III | UL 1203 | CEC Certified | CSA C22.2 File No. 30 | NEC Certified |
| Application | Chemical Plants, Oil, Gas Refineries, Paint, Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators and Grain Processing Applications |
| Electrical Ratings | 20 A at 120/277 V AC |
| Nema Rating | NEMA 3/7B/7C/7D/9E/9F/9G/12 |
