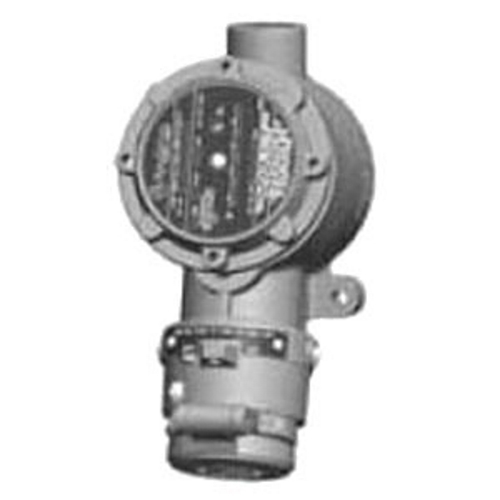

Explosion-Proof Dust-Ignition-Proof Receptacle; 60 Amp, 600 Volt AC Max, 250 Volt DC Max, 4-Pole, 3 Wire
MFR: Appleton Electric
MFR #: FSQC5640
UPC: 781381208895
Item #: 337292
Explosion-Proof Dust-Ignition-Proof Receptacle; 60 Amp, 600 Volt AC Max, 250 Volt DC Max, 4-Pole, 3 Wire
MFR #: FSQC5640
UPC: 781381208895
Item #: 337292
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3277.79
each
FSQC Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 4 AWG (Terminal Block), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum)
Manuals and Documentation
- Catalog Number
- FSQC5640
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 60
- Application
- For ACP6034BC Mating Plug
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Mounting
- Surface
- NEMA Rating
- 3, 3R, 4, 4X
- Number of Poles
- 4
- Number of Wires
- 3
- Phase
- 3
- Special Features
- Explosionproof, dust-ignitionproof; Large housing provides ample wiring room; Style 2 (shell and extra pole) grounding; Spring door keeps dust out of receptacle when plug is not in use, screw cover also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 IN tapped NPT conduit openings at top and bottom; Interlocked Disconnect Switch provides safe connect and disconnect operation at 30, 60 or 100 AMP, 600 VAC maximum, three pole, non-fused motor circuit switch, FSQC permits safe operation in Class I, Group B as well as Class I, Groups C and D, Class II, Groups F, G and Class III;
- Standard
- Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159
- UPC
- 781381208895
- GTIN
- 00781381208895
- Item Type
- FSQC Series Receptacle With Mounting Box
- Voltage Rating
- 600 VAC, 250 VDC
- Wire Size
- 6 - 4 AWG (Terminal Block)
