Appleton

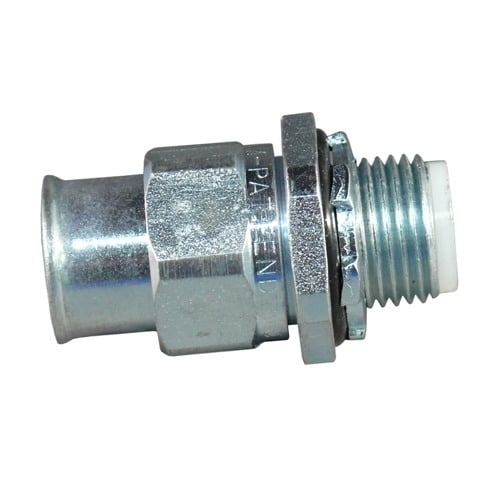

STNM-200 Conduit Connector With Insulated Throat, 2 in Trade, Straight, Steel

MFR:
Appleton Electric
MFR #:
STNM-200
UPC:
781381238847
Item #:
334032

Availability

Location Available Qty
Available Available to Order
$290.44 each

Appleton STNM Series Straight Liquidtight Connector, Size: 2 IN, Material: Steel, Insulation: Insulated Throat, Dimensions: 3.97 IN Length X 3.38 IN Height, Thread Length: 3/4 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18,

Manuals and Documentation
Catalog Number STNM-200
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Connecting To Type A Flexible Nonmetallic Conduit
Insulation Insulated Throat
Material Steel
Special Features Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals; The positive, pull out proof seal formed by a STNM connector begins with its deep-threaded ferrule that bites into the inner wall of the conduit; The sleeve separates the STNM series apart from ordinary connectors; The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness; The nut rides only on the sleeve and not on the conduit; It cannot bend or twist the conduit and thereby protects wiring; When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing; Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies;
Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178
UPC 781381238847
GTIN 00781381238847
Item Type STNM Series Straight Liquidtight Connector
Size 2
