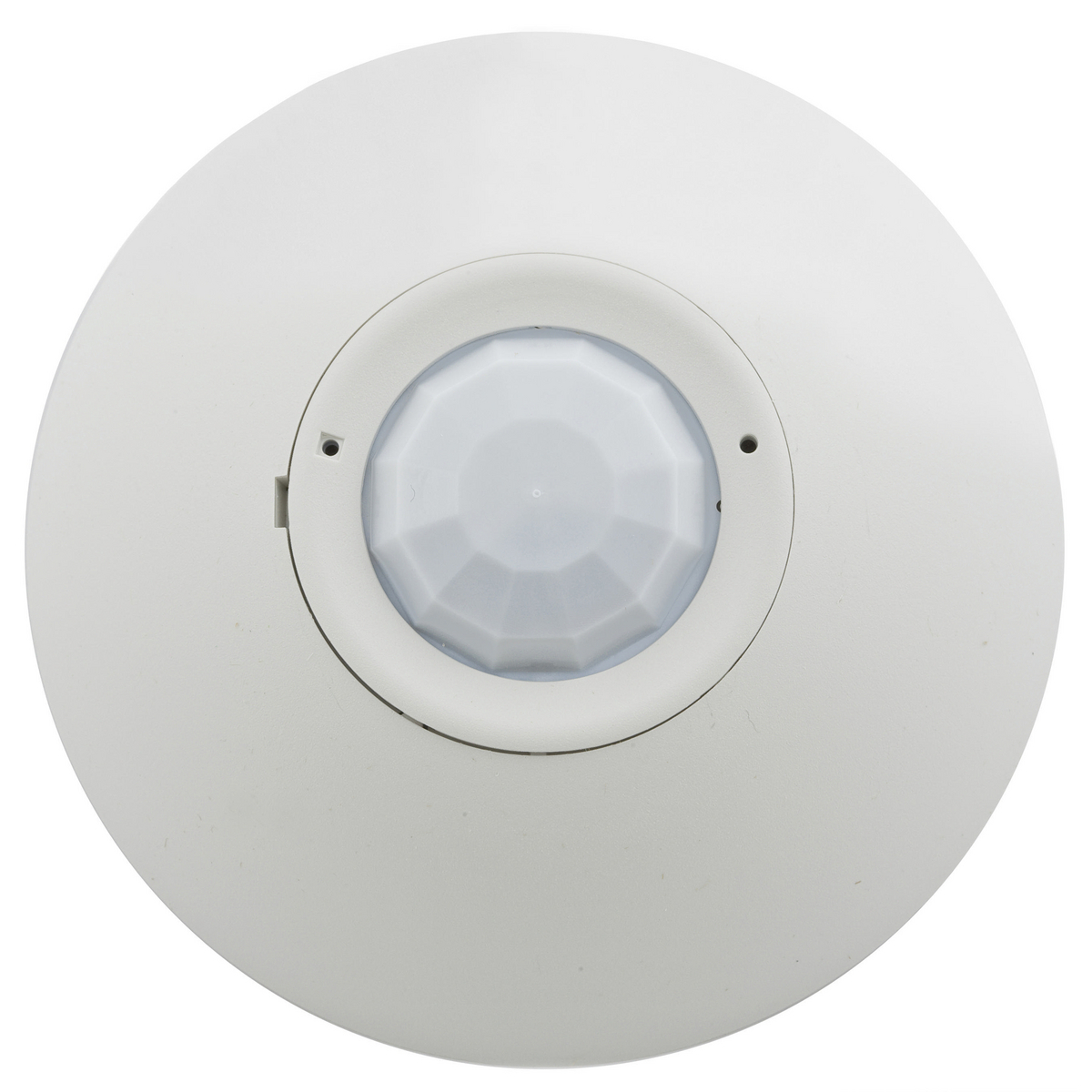

ATP1500CL Adaptive Dual Technology Occupancy Sensor, 120/277 V AC, Adaptive Passive Infrared/Dual Technology Sensor, 2000 sq-ft Coverage, 360 deg Viewing
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- ATP1500CL
- UPC:
- 783585256948
- Item #:
- 333129
ATP1500CL Adaptive Dual Technology Occupancy Sensor, 120/277 V AC, Adaptive Passive Infrared/Dual Technology Sensor, 2000 sq-ft Coverage, 360 deg Viewing
- MFR #:
- ATP1500CL
- UPC:
- 783585256948
- Item #:
- 333129
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$287.18
each
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | ATP1500CL |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Compatible with most LED and CFL |
| Color | White |
| Indicator | LED |
| Mounting | Ceiling |
| Sensing Range | 2000 Square Feet |
| Sensitivity | Adaptive 0 to 100% |
| Sensor | Dual Tech |
| Special Features | No Button |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL244A |
| Supply Voltage | 120-277V AC, 50/60Hz Single Phas |
| UPC | 783585256948 |
| GTIN | 00783585256948 |
| Item Type | Sensors |
| Environmental Conditions | Indoor Dry |
| Operating Temperature | 32 Degrees F to 104 Degrees F (0 Degrees C to 40 Degrees C) with rate of change not exceeding 20 Degrees F(11 Degrees C) per hour |
| Target Size | Human Being |
