Discontinued

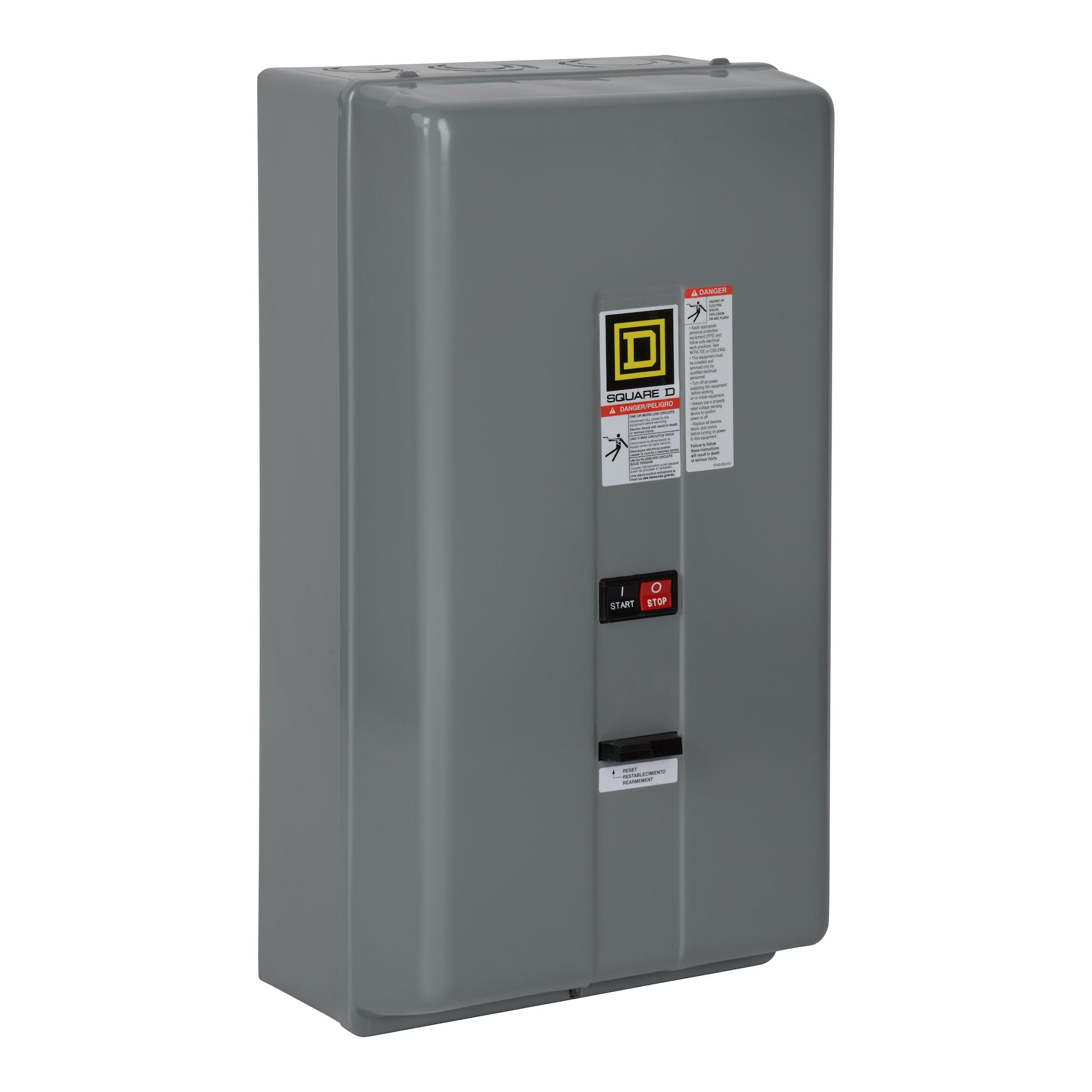

8536SEG1V02AS Type S Magnetic Starter, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SEG1V02AS
- UPC:
- 785901471905
- Item #:
- 332327
Discontinued
8536SEG1V02AS Type S Magnetic Starter, 110 VAC at 50 Hz/120 VAC at 60 Hz V Coil, 3 Poles, NEMA 1 Enclosure
- MFR #:
- 8536SEG1V02AS
- UPC:
- 785901471905
- Item #:
- 332327
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Non-Reversing Starter Size 3, 3-Pole, Melting Alloy Overload, NEMA 1 +Options
Manuals and Documentation
| Catalog Number | 8536SEG1V02AS |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| Connection | BOX LUG |
| Number of Poles | 3 |
| Power Supply | 120VAC@60HZ - 110VAC@50HZ |
| Reset Type | THERMAL - MELTING ALLOY |
| Special Features | SCREW CLAMP TERMINALS |
| Standard | UL LISTED - CSA CERTIFIED |
| UPC | 785901471905 |
| GTIN | 00785901471905 |
| Item Type | NON-REVERSING STARTER |
| Size | 3 |
| Voltage Rating | 600VAC |
